12. Technical specifications Ultrasound Controller
Hardware version See page 3
Software version See page 3
Weight 210g (D72,DP72,G72), 370g (D128, G128)
Operating temperature 0°C to 50°C
Supply voltage 24V ± 3V DC
Current consumption max 200mA
Relay 1-4 potential free contacts (open when power is off)
Maximum load: 30V DC/AC 500mA
All four relays are connected to a single common (terminal 3)
mA output 4-20mA (active output) maximum voltage drop on connected load 10V
Protection class IP30 (D72,DP72,G72) IP65 (D128,G128)
Ambient Humidity 0% - 90%
Material Aluminum, PA, PC, POM
Measurement frequency 1,1 – 2,2 MHz
Average output power 10 mW
Profibus DP In DP72 only
Gsd file for DP72 DP720B0E.gsd version see page 3
Cable glands in D128 M12: cable Ø3,5mm - Ø7mm M16: cable Ø4,1mm - Ø10mm

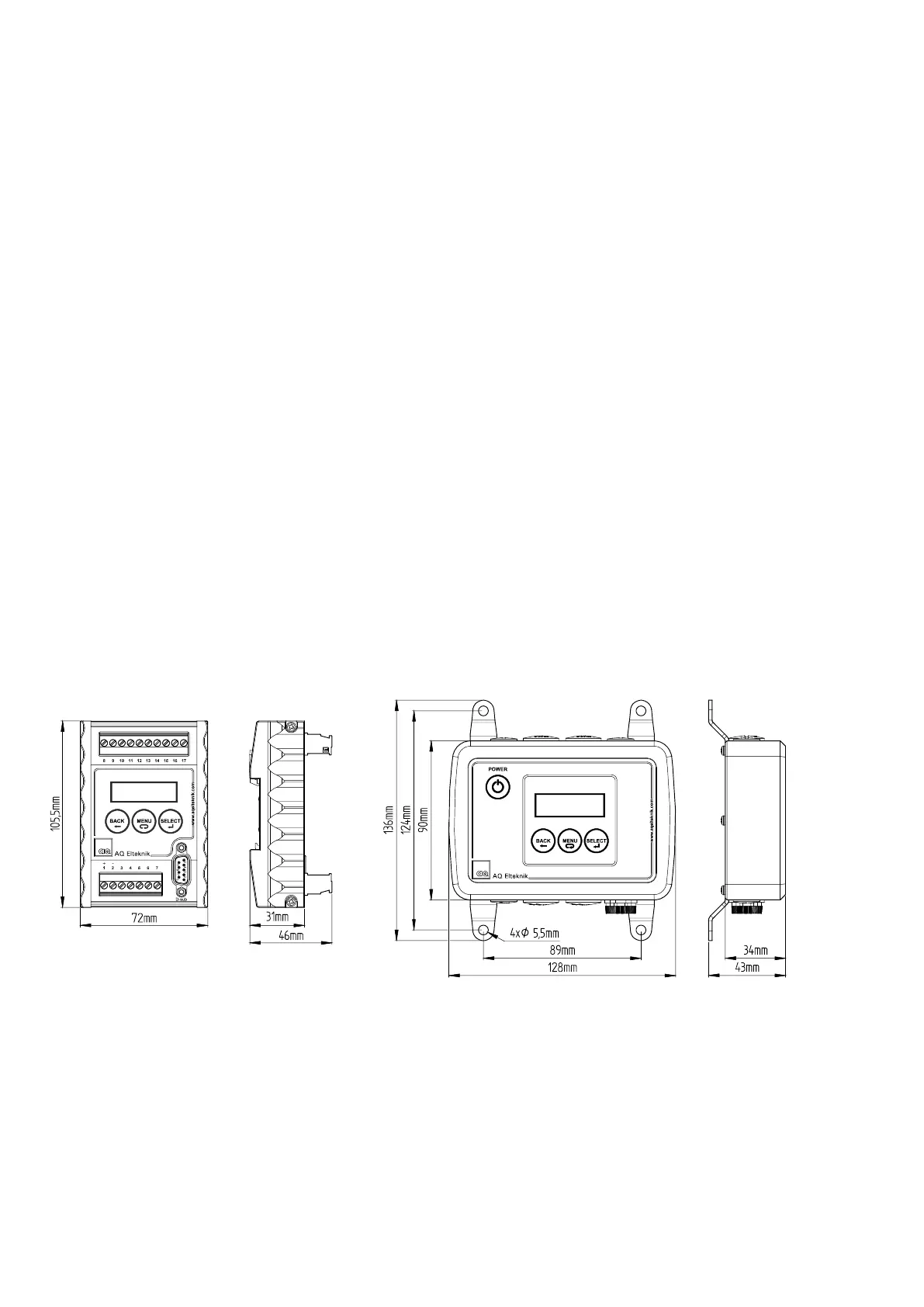

D72,DP72,G72 D128
