4.5 – SEMI-AUTOMATIC RINSING

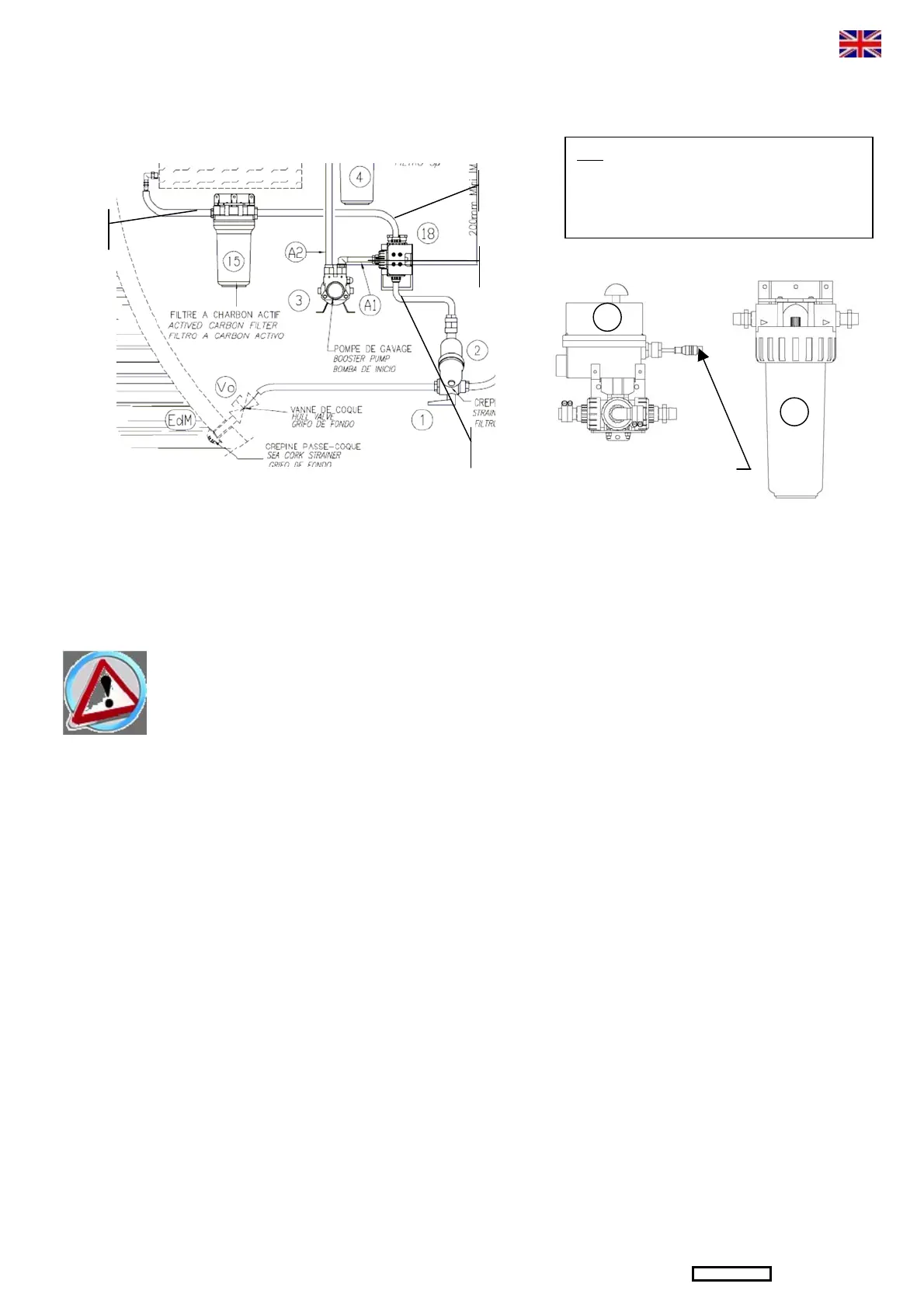

INSTALLATION
The semi automatic rinsing is installed between the principal fresh water tank, the inlet valve (1) and the LP pump.
1. Connect the supply network in charge to entry A equipped with the actived carbon filter (15). This filter enables dechlorination of the
water stored in the tank to protect the membrane because its tolerance to active chlorine is very weak.
2. Connect the outlet B to the actived carbon filter (15) to the inlet B of the 3 way electro-valve (18).
3. Connect the outlet of sea strainer (2) to the inlet C of the 3 way electro-valve (18).
4. Connect the outlet D of the 3 way electro-valve (18) to the booster pump.
WARNING : When installing the semi automatic rinsing kit, respect the instructions of installation and make sure
there is no trapped air.
We do not guarantee the functioning if the connecting simply connect on the tank.
ELECTRICAL CONNECTION
The semi automatic rinsing is connected to the electrical box with a quick connector.
NB : The capacity minimum of the main supply
must be :
- 600 l/h for the unit 60l/h
- 300 l/h for the unit 30l/h
B
B C
A
D
18
15
Quick connecto
r
A
D
C
B
