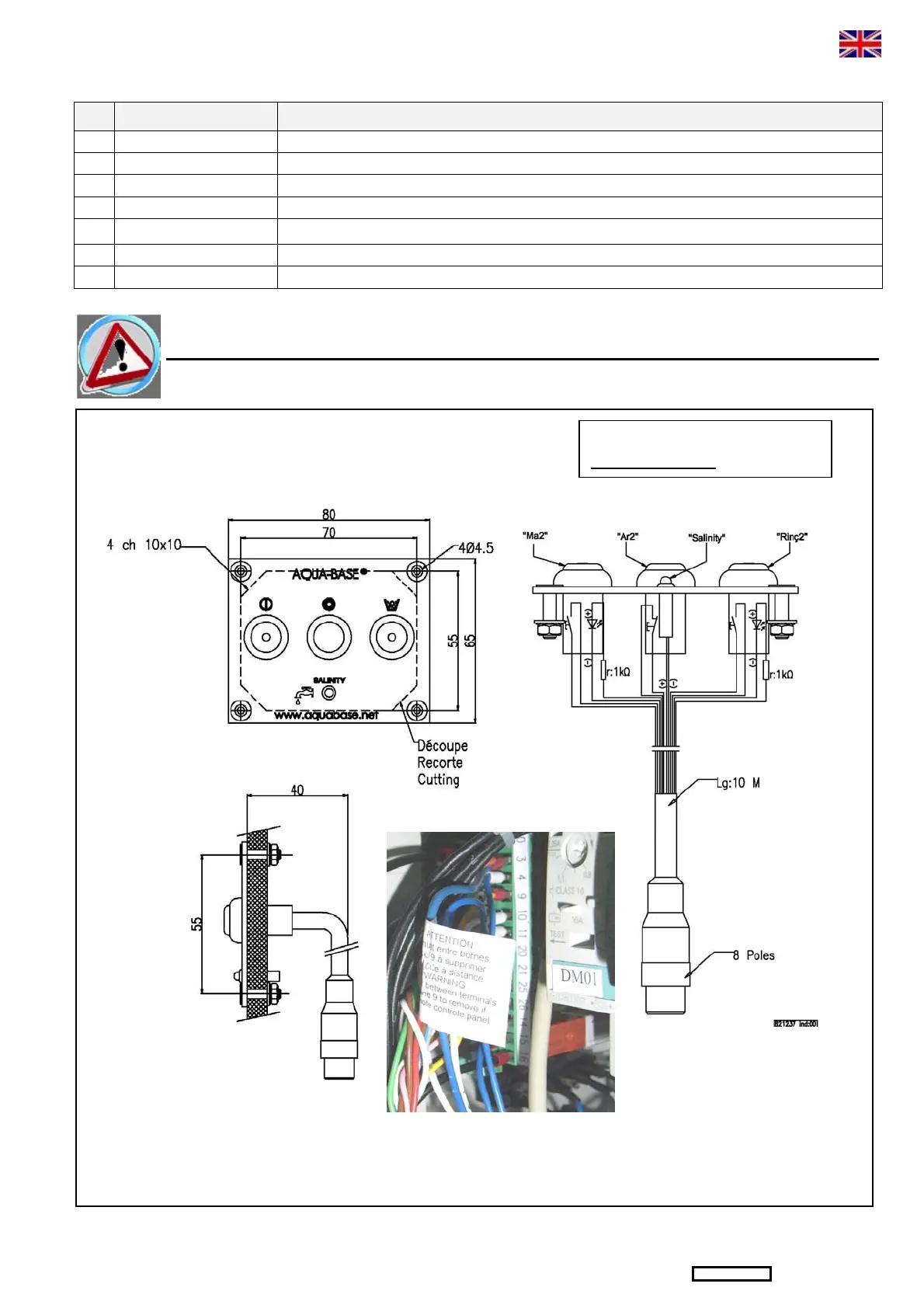

3.5 – REMOTE CONTROL (EXTRA)
REP. DESCRIPTION FUNCTION
50 Push button Start Start the unit.
51 Push button Stop Stop the unit.
52 Push button Rinsing Rinsing of the unit.
53 Green indicator lamp Green led indicating the unit is start.
54 Yellow indicator lamp Yellow led indicating the unit is rinsing position.
55 Green indicator lamp The unit is in fresh water production towards the storage tank
56 Red indicator lamp Red led indicating the salinity of the produced water is not good.
WARNING : SHUNT BETWEEN TERMINALS 3 AND 9 TO REMOVE IF REMOTE PANEL (see electric diagram in annexe)
Fig. 7
REMOT CONTROL is an
EXTRA (OPTION)
SHUNT 3-9 TO REMOVE
