A – THE WATERMAKER
1 – PRESENTATION
The Watermaker is entirely hydraulic. Its only source of energy is the low-pressure water-flow provided by the booster pump. The hydraulic
amplifier system automatically regulates the osmotic pressure as well as the flow of water pumped across the osmotic membrane.
The AQUA-BASE desalination unit is composed of:
- A sea strainer.
- A low- pressure pump driven by an electric motor 12 or 24VCC.
- A filter (with cartridge) 5µ.
- The hydraulic amplifier increases pressure of seawater up to 40 / 60 bar (depends version) to allow production of fresh
water through the membrane.
- A reverse osmosis membrane inside the high-pressure vessel.
- A set of valves for operating and servicing the unit.
- A main switch and all orders necessary to the operation of unit.
- A salinometer and a valve which automatically directs the water of production.
- A semi automatic rinsing kit.
- A pressure gauge LP (Low-pressure) and HP (High-pressure).
- Hull fitting and hull valve are not included in the supplies.
- Fitting Kit (EXTRA).
- Remote control (EXTRA).

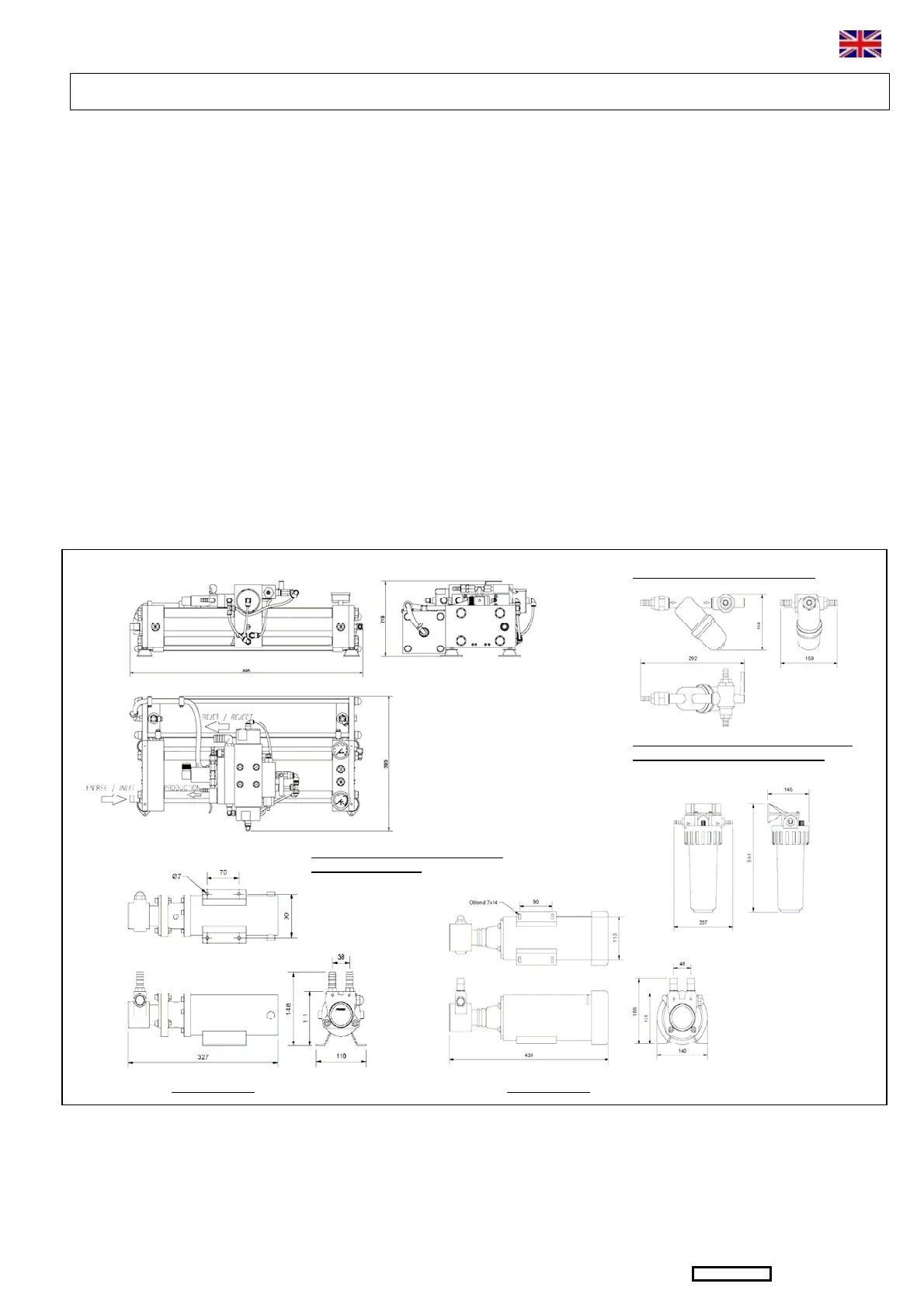

FILTRE A CARTOUCHE / CARTRIDGE
FILTER / CARTUCHO DE FILTRO
CREPINE / STRAINER / FILTRO
POMPE DE GAVAGE / BOOSTER
PUMP / BOMBA BP
ESW 301 / 302 ESW 601 / 602
