TROUBLESHOOTING
6.6 Battery Protection Settings
The ARB Fridge Freezer is fitted with a battery monitor to control the level of discharge of the
supply battery. The battery monitor has three settings; HIGH, MEDIUM and LOW. When set to
HIGH, the battery monitor will provide maximum protection for the battery against excessive
discharging. When set to LOW, the battery monitor will allow maximum use of the energy stored
in the battery. The table below shows the voltage cutout levels for the three battery monitor
settings.
BATTERY MONITOR MODE
LOW
MED
HIGH
Switch off voltage – 12V DC
10.1V
11.4V
11.8V
Restart voltage – 12V DC
11.1V
12.2V
12.6V
Switch off voltage – 24V DC
21.5V
24.1V
24.6V
Restart voltage – 24V DC
23.0V
25.3V
26.2V
To change the battery protection level:
 Turn the fridge freezer on.
 Press three times to display current battery protection setting.
 Press or to change the battery protection voltage between High (HI), Medium
(nEd) and Low (Lo).
 After 5 to 6 seconds of inactivity, the display will flash twice and return to displaying the
current cabinet temperature.

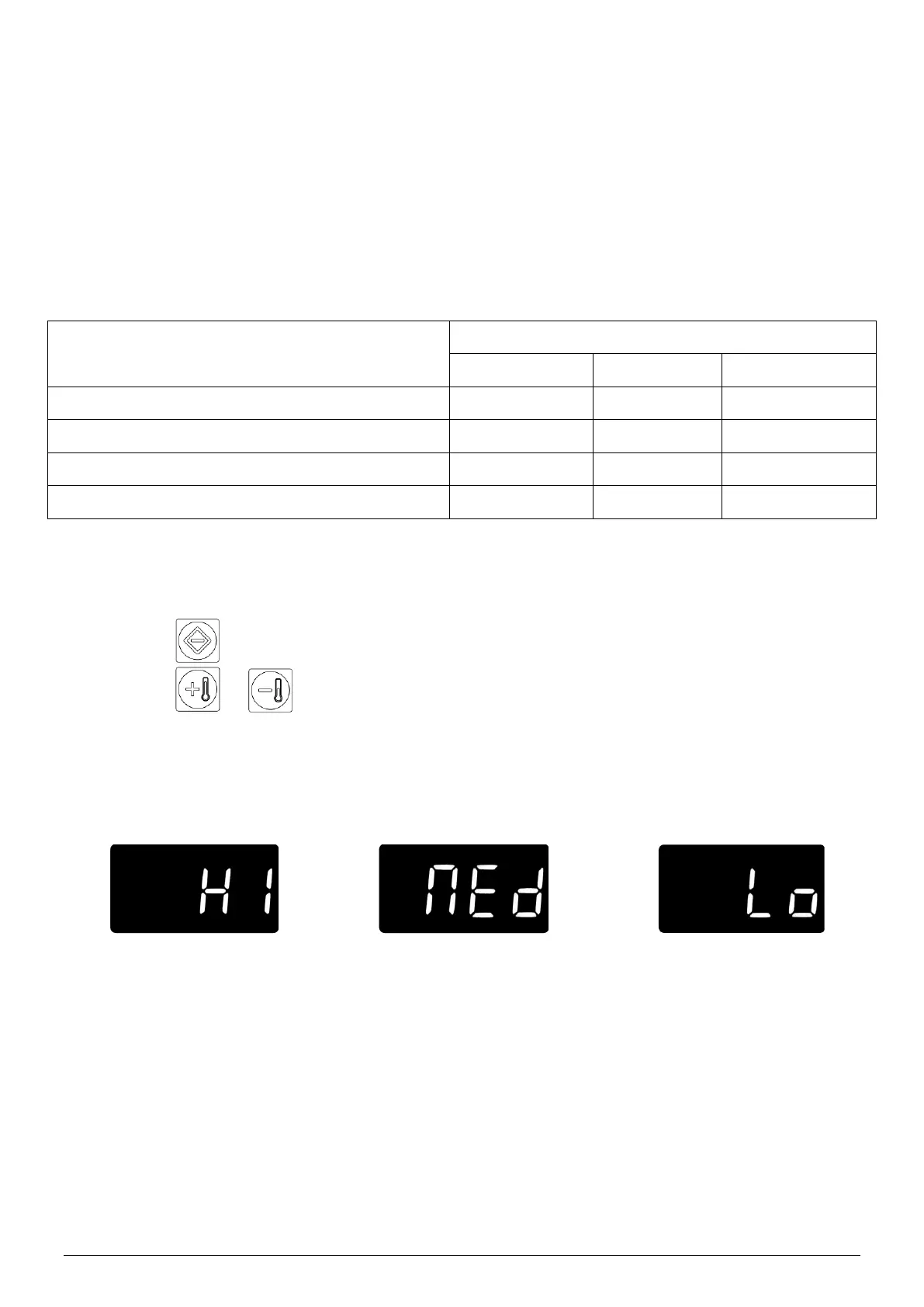

High Medium Low
NOTE: The battery protecting system only controls 12 and 24V DC supplies. To confirm that the
fridge freezer is operating correctly, connect the fridge freezer to a standard 100-240V AC
supply.
