ARB 35L - Rear Cover - Replace

Revision Date – 22/12/2014 page 44
9.5 Rear Cover – Replace

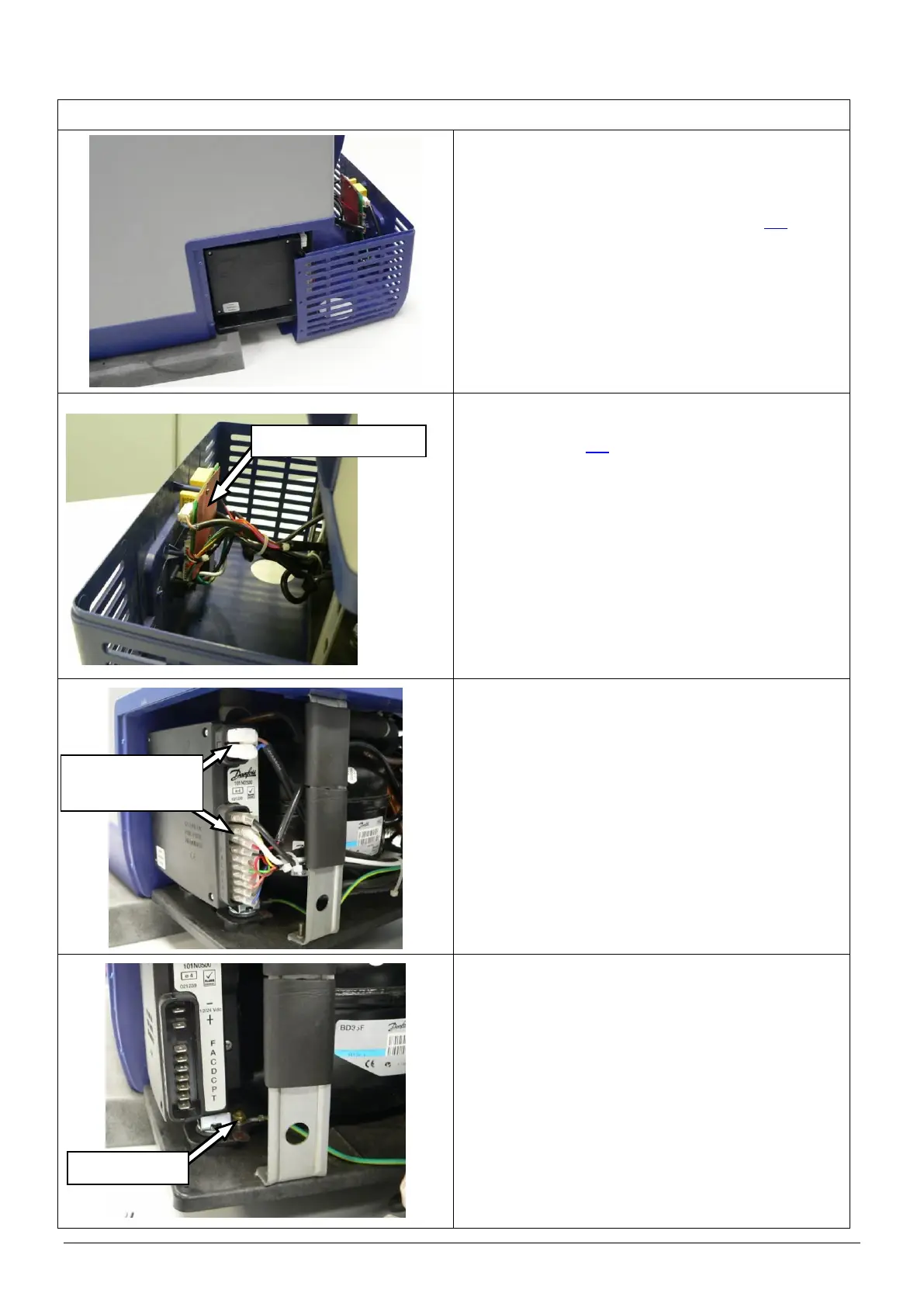

Replace rear cover – to remove.
Disconnect all power leads from the back of the
fridge.
Remove the rear cover (refer to section 9.2).
CAUTION: Take care not to damage electrical
wires or terminals.
Disconnect the main circuit board from rear cover
(refer to section 9.4).
Disconnect all 11 push on connectors from
compressor control unit.
HINT: Use a pair of pliers to help release the
connectors from the compressor control
unit terminals.
Disconnect the earth cable from the compressor
mounting chassis.
Main circuit board
Earth cable
Remove all
11 connectors
