Revision Date – 22/12/2014 page 63

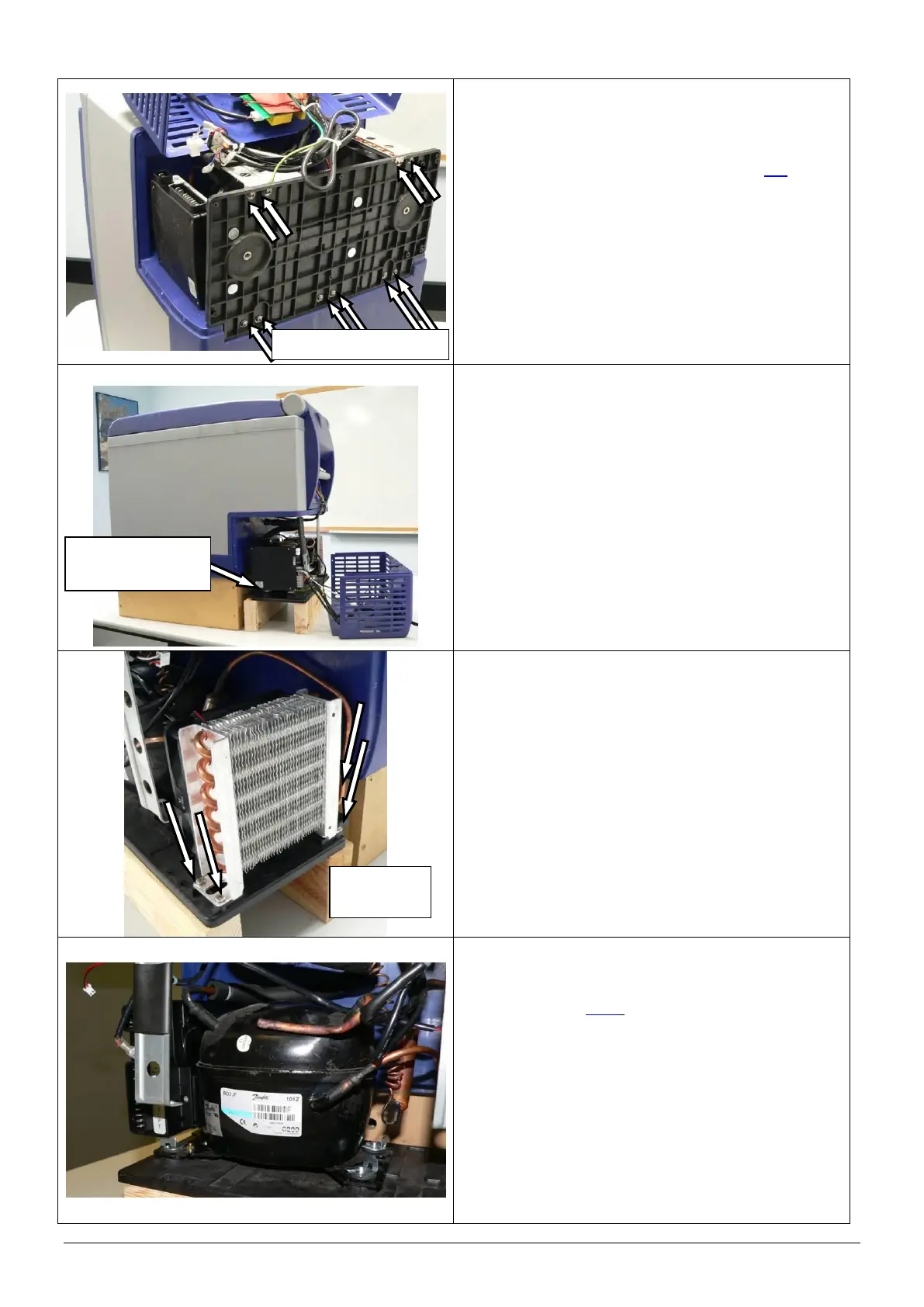

9.18 Compressor mounting base - Replace
Disconnect all power leads from the back of the
fridge.
Remove the rear cover (refer to section 9.2).
Remove the 10 screws that attach the
compressor mounting base to the body of the
fridge.
NOTE: The fridge has been rotated for photo
only. ARB does not recommend placing
the fridge on its end as shown.
Lower the compressor mounting base (complete
with compressor and condenser) from the base of
the fridge.
Support the compressor mounting base so that it
does not drop more than 100 mm below the base
of the fridge.
CAUTION: Take care not to stretch the
refrigeration lines or power cables.
Remove 4 screws that fasten the condenser to
the mounting base.
Separate the condenser and fan from the
mounting base as a complete assembly.
CAUTION: Take care when handling the
condenser assembly not to stretch
the refrigeration lines or power
cables.
Separate the compressor from the mounting base
by releasing the 4 rubber compressor mounts
(refer to section 9.17).
CAUTION: Take care when handling the
compressor not to stretch the
refrigeration lines or power cables.
