ARB 35L - Latch Assembly- Replace

Revision Date – 22/12/2014 page 49
9.7 Latch assembly- Replace

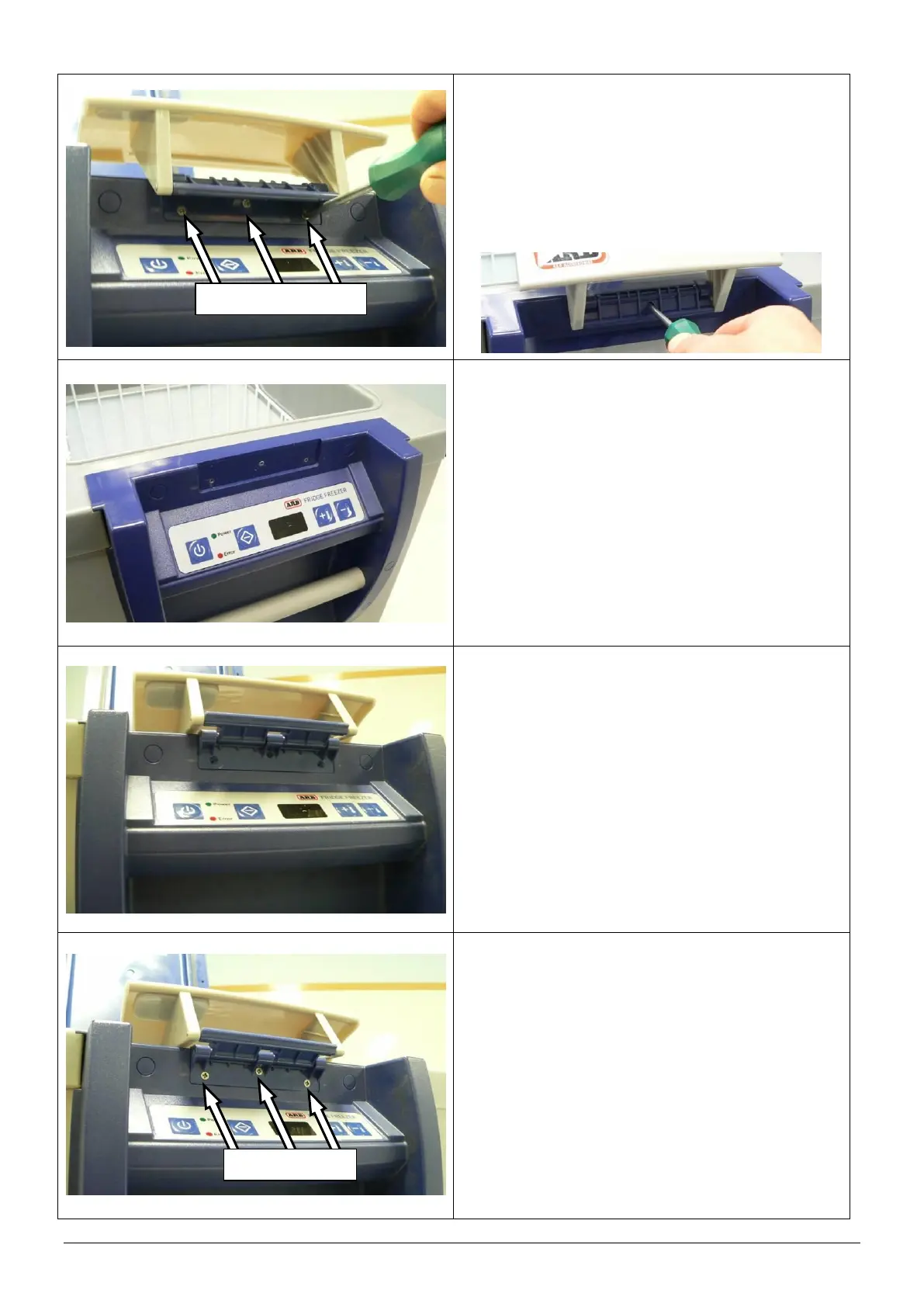

Open the lid.
Remove 3 screws as shown.
HINT: On early latches, the centre screw can
be accessed through the hole in the
pivot as shown.
Remove the latch assembly.
Position the new latch assembly into the recess
as shown.
Fasten the new latch assembly using the same 3
screws removed in the previous step.
Remove 3 screws
Fit 3 screws
