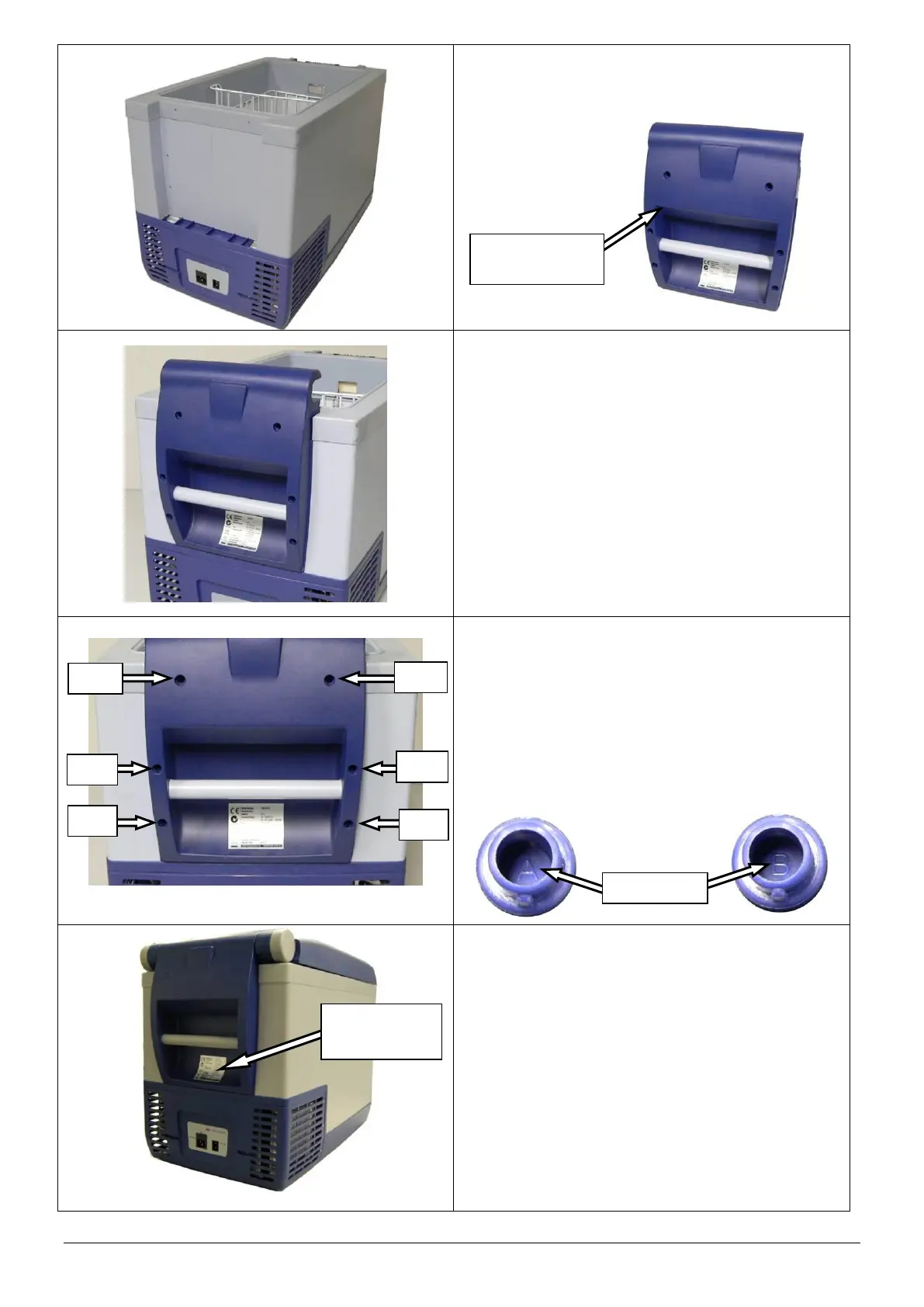

Remove the rear handle assembly from the body
of the fridge.
Fit the new handle assembly to the body of the
fridge using the original 6 screws.
NOTE: Do not over tighten these screws
NOTE: All 6 screws that fasten the assembly
are 40 mm long.
Fit new screw cover plugs into the rear handle
assembly.
Each hole has a unique plug as shown. Plugs for
47L & 78L models are identified by a single letter.
Plugs for 35L and 60L models are identified by a
number.
When installing plugs, ensure that the correct
plugs are fitted to the correct holes.
Fit hinge sockets to the new handle assembly
using the original screws.
Remove the compliance sticker from the old
handle assembly and apply to the new handle
assembly.
Refit lid.
