ARB 3940420 - Cross Beam Component Removal

Last Rev Date 17/05/2019
Page 7 of 36
Fitting instructions# 3789528
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

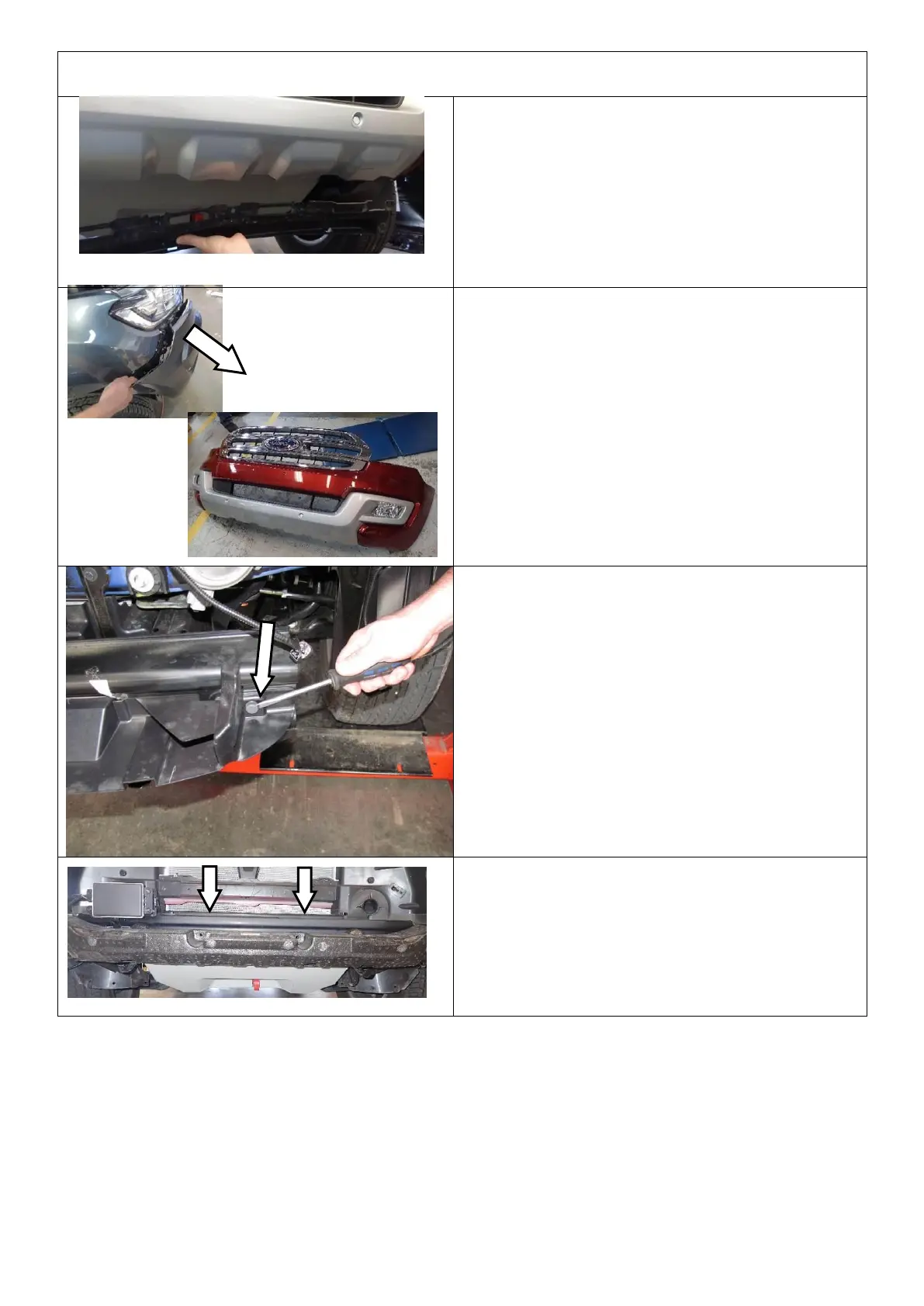

FITTING PROCEDURE
FOR EVEREST:
13. Remove all the fasteners securing centre trim
panel to the vehicle and detach. Discard the
panel.
14. Disconnect all sensors and fog lights attached
to the bumper and allow them to hang loose.
NOTE: Parking sensor connector is on LH
side of bumper.
15. Starting on the RH side of the vehicle,
carefully pull the rear most corner away from
the vehicle un-clipping the bumper. With the
assistance of another person remove the
bumper from the vehicle and place in a safe
place where it will not be damaged.
FOR RANGER:
16. Remove the plastic panel attached to the front
cross beam by removing the plastic clips.
Discard the panel.
FOR EVEREST:
17. Remove the foam piece attached to the front
cross beam by removing the plastic clips.
Discard the foam piece.
