required for cooling. The duty cycle of your new welder can be found on the data plate affixed to the

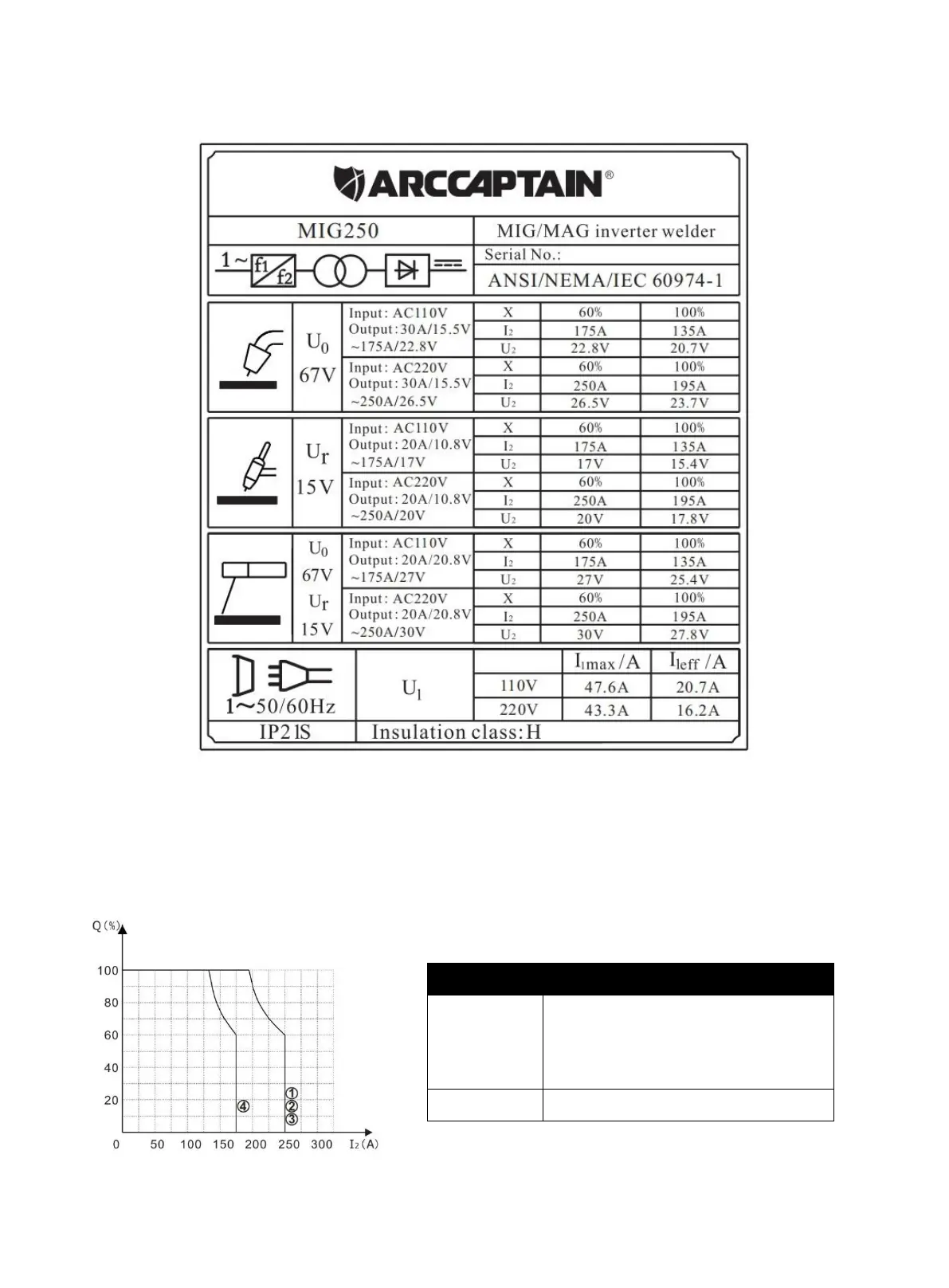

machine. It looks like the diagram below.
Figure 8 Nameplate
 Duty cycle
Rated duty cycle is the percentage of the ratio of operating time at rated Max output current to a
10-minute period.
Voltage Function
220V
①：MMA load curve
②：TIG load curve
③：MIG load curve
110V
④：MMA /TIG/MIG load curve
Figure 9
Duty cycle
Graph of duty cycle
