ARCCAPTAIN MIG250 - Multi-Function Digital Operation Panel

7
3.2 Multi-function Digital Operation Description

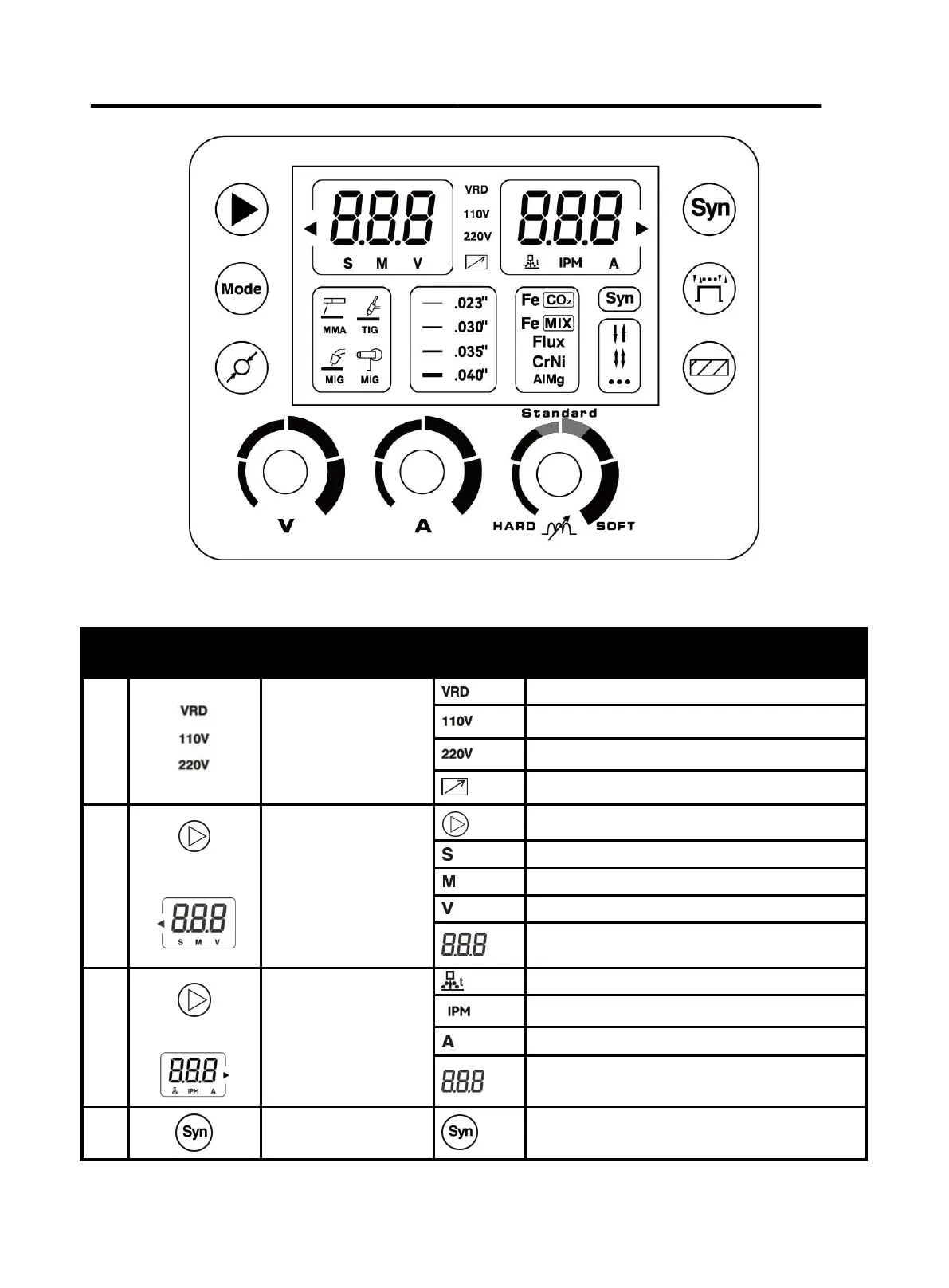

Figure 6 operation panel
 Detailed description for operation panel functions：
NO. Picture Description Item Function
1
VRD, Input
voltage,Remote
control LED
VRD LED
Input voltage is 110V
Input voltage is 220V
Spool gun remote control is connected
2
+
Parameter setting and
display area for spot
welding time,
parameter group
storage, voltage
Parameter switch button
Spot welding time LED
Parameter group storage LED*
Voltage parameter LED
Parameter LED display
3
+
Parameter setting and
display area for wire
feed speed and
current
Bum-back time LED
Wire feed speed LED
Current parameter LED
Parameter LED display
4
Synergic selection
button
Switch button for “synergic” and “separated” *
