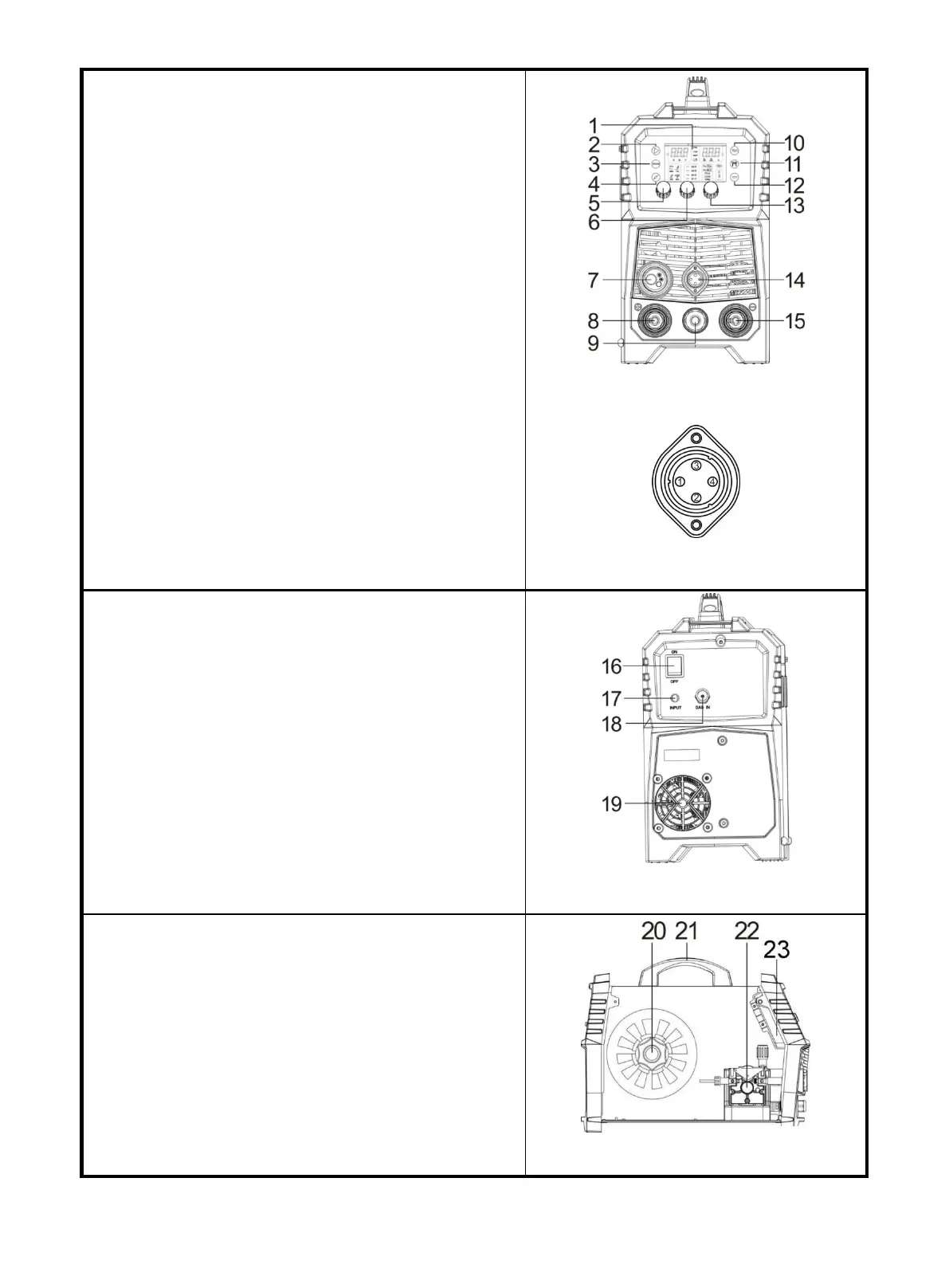

1. Digital screen display area
2. Parameter setting and display area for spot
welding time, parameter group storage, voltage
and so on
3. Welding process selection area
4. MIG diameter selection area
5. Voltage and spot welding time adjustment knob
6. Current and wire feed speed adjustment knob
7. Euro connector for torch
8. "+" output terminal
9. Polarity changeover plug
10. Synergic selection button
11. MIG operation mode selection area
12. MIG material selection area
13. Inductance adjustment knob
14. Socket for Spool gun
Hole 1: Spool gun power source ”+”
Hole 2: Spool gun power source ”-”
Hole 3~4: Null
15. "-" output terminal
16. Power switch
17. Input power cable
18. Gas inlet
19. Cooling Fan
20. Spool holder
21. Handle
22. Wire feeding unit
23. LED light
Figure 2
Figure 4
Figure 5
Figure 3 Socket for Spool gun
