Loosen Spool Tension Nut.
Install Spool so wire will feed clockwise.
Tighten Spool Tension Nut until Spool cannot spin freely.

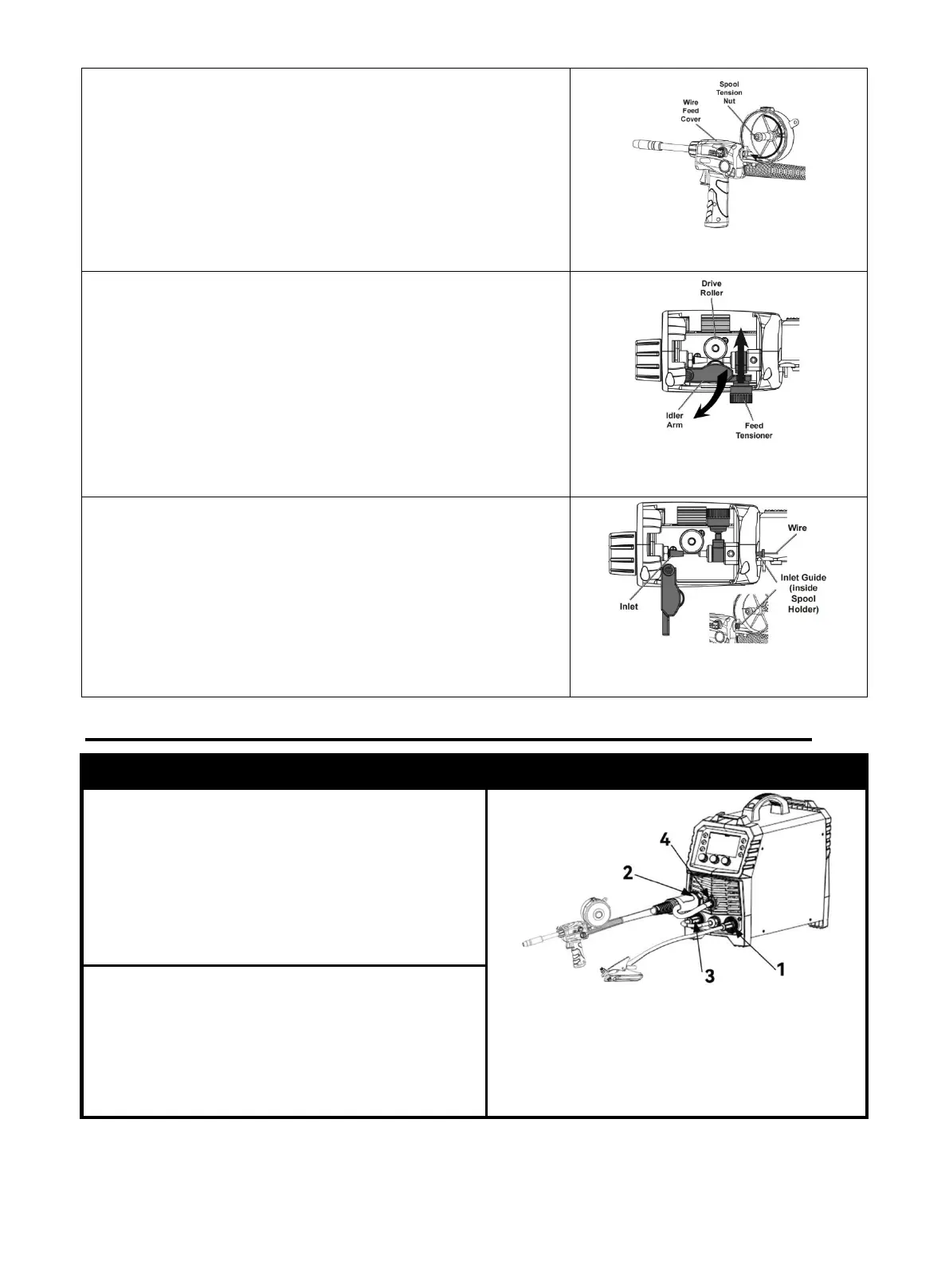

Figure 30
Open Wire Feed Cover.
Pull up on Feed Tensioner, then swing up and over to expose
Idler Arm.
Open Idler Arm to expose wire feed components.
Remove Drive Roller knob. Make sure number on Drive Roller
matches wire diameter. Flip Drive Roller if necessary.
Figure 31
Hold end of wire while releasing from Spool. Cut off any bent
wire.
Keeping tension on Spool, feed Wire through Inlet Guide and
1/4" into Inlet .
Close Idler Arm and Feed Tensioner.
Replace Spool Cover.
Set Spool Gun down on nonconductive, nonflammable
surface away from any grounded objects.
Figure 32
6.2 Connection
Description Picture
1. Connect the ground clamp to “-” negative
polarity
NOTICE:
The ground clamp connector MUST be tightly
connected to the socket to avoid power short
circuit.
Figure 33
2. Connect the spool gun to euro connector
NOTICE:
The spool gun connector MUST be tightly
connected to the socket to avoid power short
circuit or air leakage
