7. Operation for MIG Flux-Cored Welding
! WARINING DO NOT set up without SWITCH OFF !
7.1 Connection

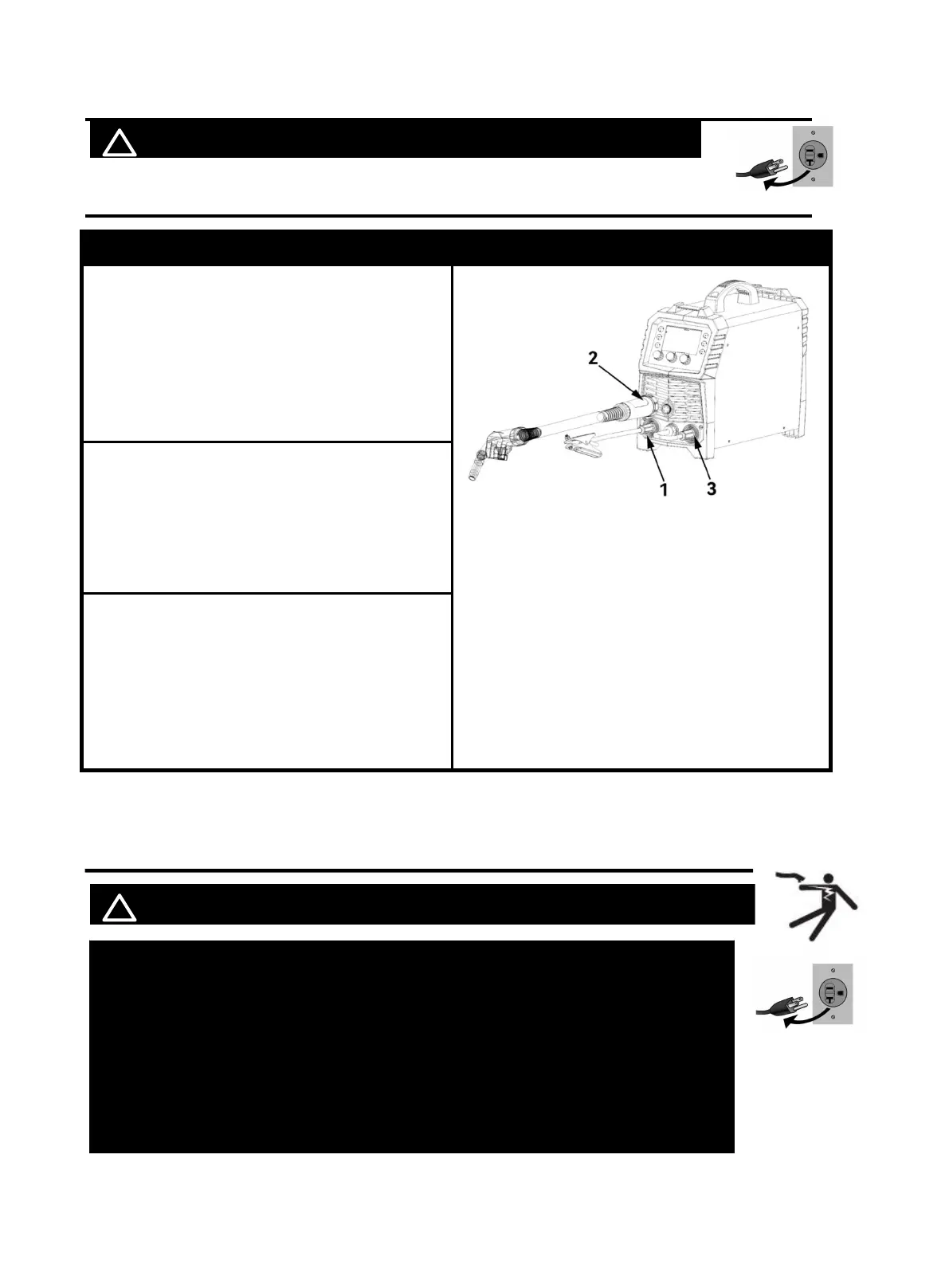

Description Picture
1. Connect the ground clamp to “+” positive
polarity
NOTICE:
 The ground clamp connecter MUST be
tightly connected to the socket to avoid
power short circuit.
Figure 39
2. Connect the welding gun to euro connector
NOTICE:
 The MIG gun connecter MUST be tightly
connected to the socket to avoid power
short circuit.
3. Connect the polarity changeover plug to “-”
negative polarity
NOTICE:
The polarity changeover plug MUST be
tightly connected to the socket to avoid
power short circuit.
7.2 Input Power Connection
! WARINING BEWARE OF ELECTRIC SHOCK!
NOTICE: The following steps require applying power to the Welder
with the cover open.
To prevent serious injury from fire or electric shock:
1.DO NOT touch anything, especially not the ground clamp, with the
gun or welding wire or an arc will be ignited.
2. DO NOT touch internal Welder Components while it is plugged in.
The MIG250 operates with a 110V or 220V power supply. Plug the Power Cord into a
