materials and welding process for reference.

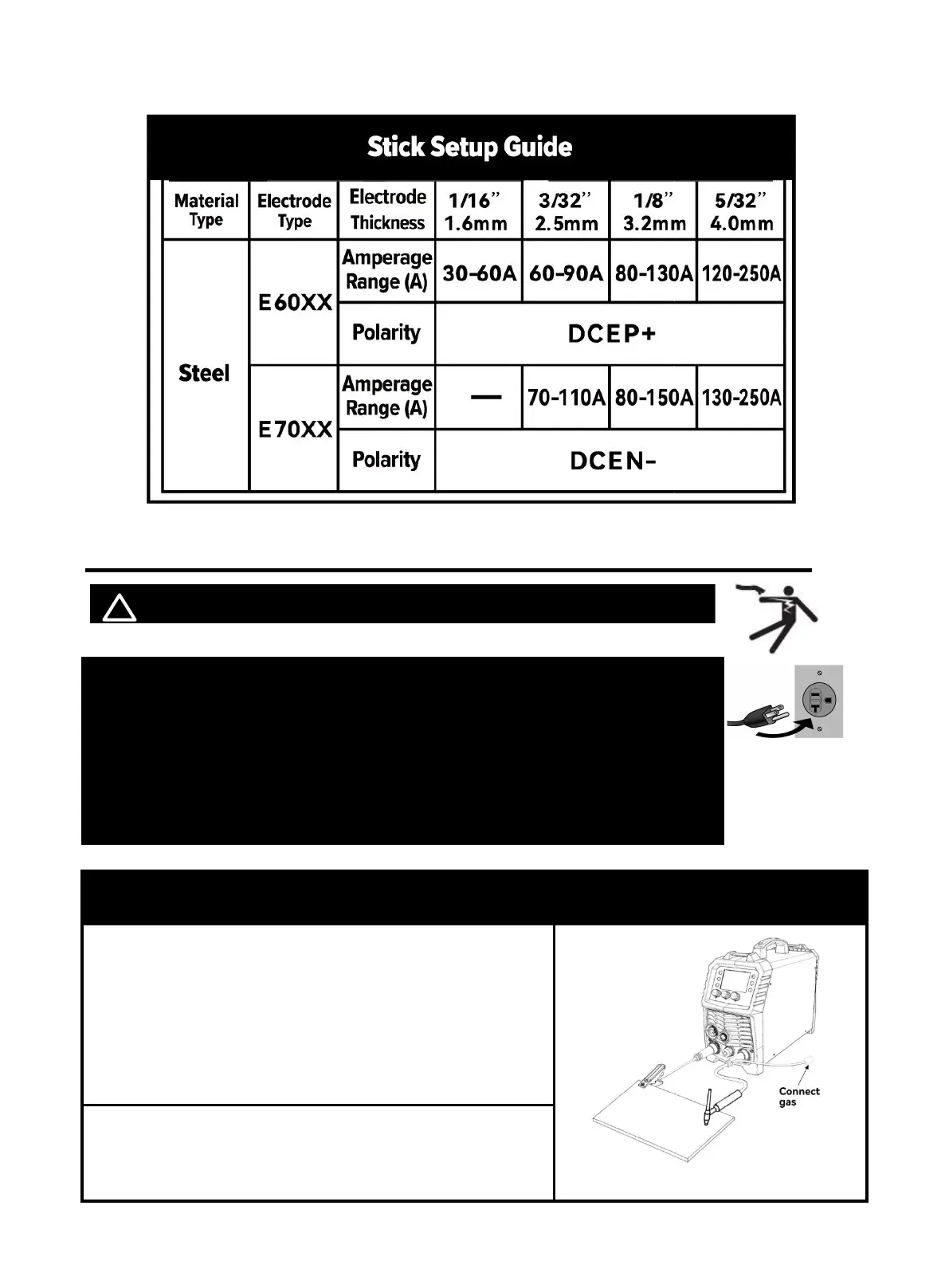

8.4 Lift TIG Welder Cable Connection
! WARINING BEWARE OF ELECTRIC SHOCK!
NOTICE: The following steps require applying power to the Welder
with the cover open.
To prevent serious injury from fire or electric shock:
1.DO NOT touch anything, especially not the ground clamp, with the
gun or welding wire or an arc will be ignited.
2. DO NOT touch internal Welder Components while it is plugged in.
Description
1. Connect the ground clamp to “+” Positive polarity
NOTICE:
The ground clamp connecter MUST be tightly
connected to the socket to avoid power short circuit.
Ensure the ground clamp is connected on clean,
bare metal (not rusty or painted).
2. Connect the tig gun（WP-17V） to “-” Negative polarity
NOTICE:
The tig gun connecter MUST be tightly connected to
Figure 49
