SECTION 1
GENERAL INFORMATION
1.5 REAR SIDE SEATS - 8 WHEEL MODELS
SomeAurora8wheelmodelsarettedwith“quick-release”
side rear seats.
Removal
1. Grasp the inner edge of the rear seat at both ends.
2. Lift the inner edge of the rear seat upwards until both plastic
bumpers are clear of the upper body.
3. Using an upward motion, pull the seat toward the centre
of the rear compartment.
4. Remove the seat.
Installation
1. Place the rear seat over the seat mounting holes in the upper
body. Insert the large seat washers through the holes.
2. Using downward pressure, slide the seat towards the out-
side of the vehicle to lock it in place.
1.5A REAR SEATS - 8 WHEEL MODELS
SomeAurora8wheelmodelsarettedwitha“quick-release”
rear bench seat.
Removal
1. Standing at the rear of the bench seat, pull back on the
left and right side release pins allowing the seat to pop up.
Figure 1-5 & 1-6
2. Tilt the seat forward slightly.
3. Lift up and out of the vehicle.
Installation
1. With the rear bench seat tilted forward, align and attach
thefrontseatpinsrsttothelowerbenchseatframe.
2. Lower the back end of the seat. Click and lock pins into
slots at the rear of the seat bracket securely.

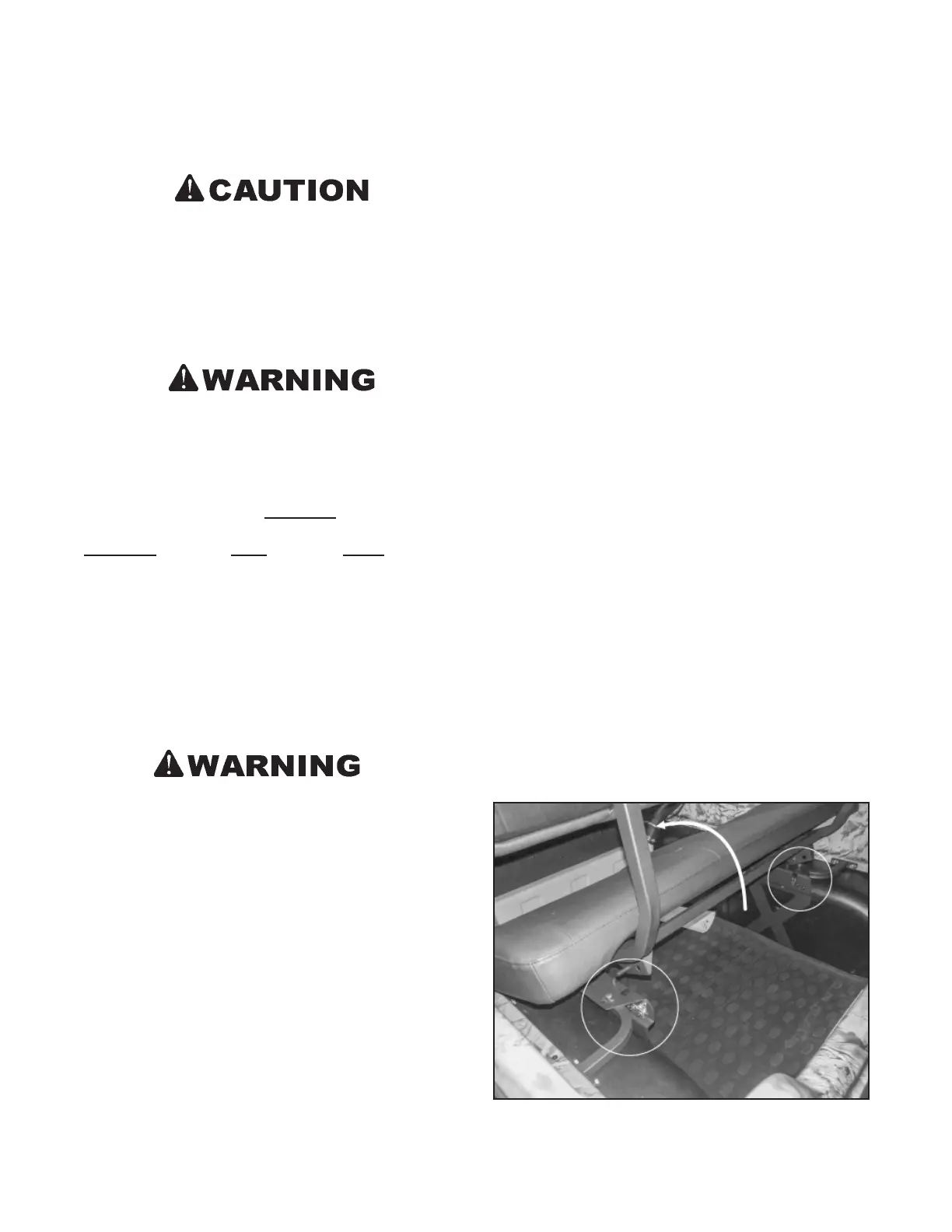

Figure 1-5. Release latches, tilt seat forward
1.4.1 Argo Vehicle Capacity
Vehicle capacity includes occupants, cargo, fuel, and
all additional accessories. Capacity for occupants and
cargo is reduced by the weight of accessories as shown
in the following chart.
Some models come with accessories included. Available vehicle
capacity must be reduced if your vehicle is equipped with any
additional accessories. Reduce the available capacity by the total
weightofadditionalaccessoriesttedtoyourvehicle.
Load capacity on water is reduced by 100lbs. if your
8x8 Argo is equipped with optional smaller 24x10.00-8
tires when the standard spec would include 25x12.00-9.
The reduced buoyancy could cause the Argo to become
swamped and sink, causing injury or drowning to the
driver and passengers.
Reduce By
Accessory (lbs./kg) On On
On Vehicle Land Water
Rubber Track 8x8 295 (135) 175 (80)
Winch Kit 30 (6.8 ) 50 (23)
Brush Guard 15 (5) 11 (5)
Windshield 33 (15) 33 (15)
Convertible Top 27 (12) 27 (12)
Snow Plow 190 (85) SEE WARNING
Rear Bench Seat 34 (15) 34 (15)
ROPS 195 (88.5) (195) (88.5)
Cargo Liner 21 (9.5) 21 (9.5)
Hood Extraction Fan 11 (5) 11 (5)
Do NOT use an Argo on water when equipped with a snow
plow. The increased weight of the snow plow out front
will make the Argo unstable and could cause the vehicle
to capsize, causing injury or drowning to the driver and
passengers.
1.4.2 Amphibious Trailer Capacity
4 Wheel Trailer
Load Capacity: 270 kg (600 lbs.)
Trailer Weight: 183 kg (404 lbs.)
4 Wheel V-Trailer
Load Capacity: 270 kg (600 lbs.)
Trailer Weight: (25" Tires) 147 kg (324 lbs.)
8 Wheel Trailer
Load Capacity: 590 kg (1300 lbs.)
Trailer Weight: 322 kg (710 lbs.)
Gross Vehicle Rating: 907 kg (2000 lbs.) on land
817 kg (1800 lbs.) on water
* Load capacity equals gross weight rating minus the weight of the trailer
and accessories.
