Argo Aurora 800 - Rubber Track Installation

55
SECTION 11
ACCESSORY INFORMATION
IMPORTANT
PLEASE NOTE THE ABOVE TIRE PRES-
SURES ARE RATIOS AND NOT NECESSARILY
THE FINAL PRESSURES USED. TIRE PRES-
SURE MAY NEED TO BE ADJUSTED HIGHER
OR LOWER TO ACHIEVE CORRECT TRACK
DEFLECTION. E.G. TIRE PRESSURE MIGHT
END UP AT (4,6,6,5) OR (3,5,5,4) ETC. HOWEV-
ER, DO NOT EXCEED THE MAXIMUM TIRE
PRESSURE OF 7PSI ON ANY GIVEN TIRE AS
INDICATED ON THE SIDEWALL OF EACH
TIRE.
e. Using a 3/4" socket, install the wheel nuts. Torque the
wheel nuts.
55 ft. lbs.(75 N.m) Beadlock or standard nuts-chromed
35 ft.lbs. (47 Nm) Grey or Black Eco guard.
11.4 Installation (Rubber Track System)
1. Install the Hinge Assembly as described in the 825-50-1
of the Rubber Track Kit instructions.
2. Laythetwoassembledtracksontheoor.
3. Drive the vehicle forward onto the tracks leaving ap-
proximately 8" extending past the front tires.
4. Pull the remaining track around the rear tire and forward
to the front of the vehicle.
5. Deatethefrontandrear(oralltires)foreasierinstal-
lationofthenaltrackpin.
6. Join the two ends of the track and secure them in place
with C-Clamps as shown in Figure 11-3, so that the holes
of the hinge lacing line up.

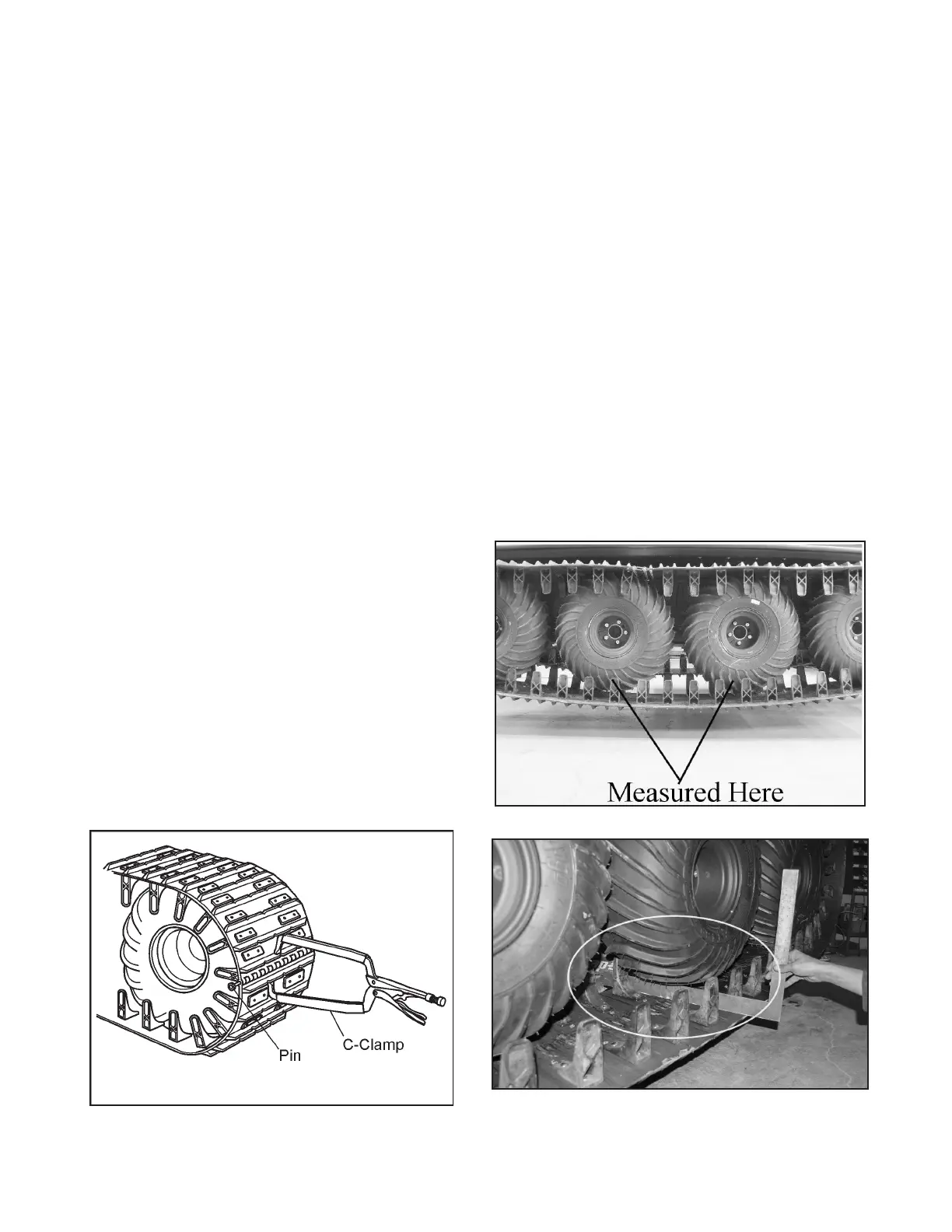

Figure 11-3. Securing with C-clamps.
10. Insert the 825-56 Track Pin through one of the 108-23
washers and then through the hinge lacing. Be sure to
install the pin from the outside edge of the track so
the end with the cotter pin hole ends up nearest the
vehicle lower body.
11. Secure the Track Pin in the hinge with a 108-23 washer
and 100-100 cotter pin at end closest to the vehicle body.
12. Re-inatethetiresasshowninthechart.Withthetires
installedandinatedasshowninthechart,thereshould
be 2 to 3 inches between the bottom of the second (or
third) tire and the inside surface of the track when the ve-
hicle is elevated. Figure 11-4 & 11-5. This may require
the installation of a track extension or additional hinge
kit. On Average tires with typical 79-80" tires, the total
track length should be 235" (including hinges and track
extensions). The extension can be easily removed if the
wheels slip within the track during winter use. NOTE:
Putting too much tension in the track will severely
stress the axles, bearings and frame.
Figure 11-4 Measuring the gap of the mid tires - Avenger.
Figure 11-5. Measuring the gap of the mid tires - Avenger.
