18 Quick Start Guide: 7500N Series Modular Switches
7512N and 7516N Shelf Rack Mount Installation Chapter 3: Rack Mounting the Switch

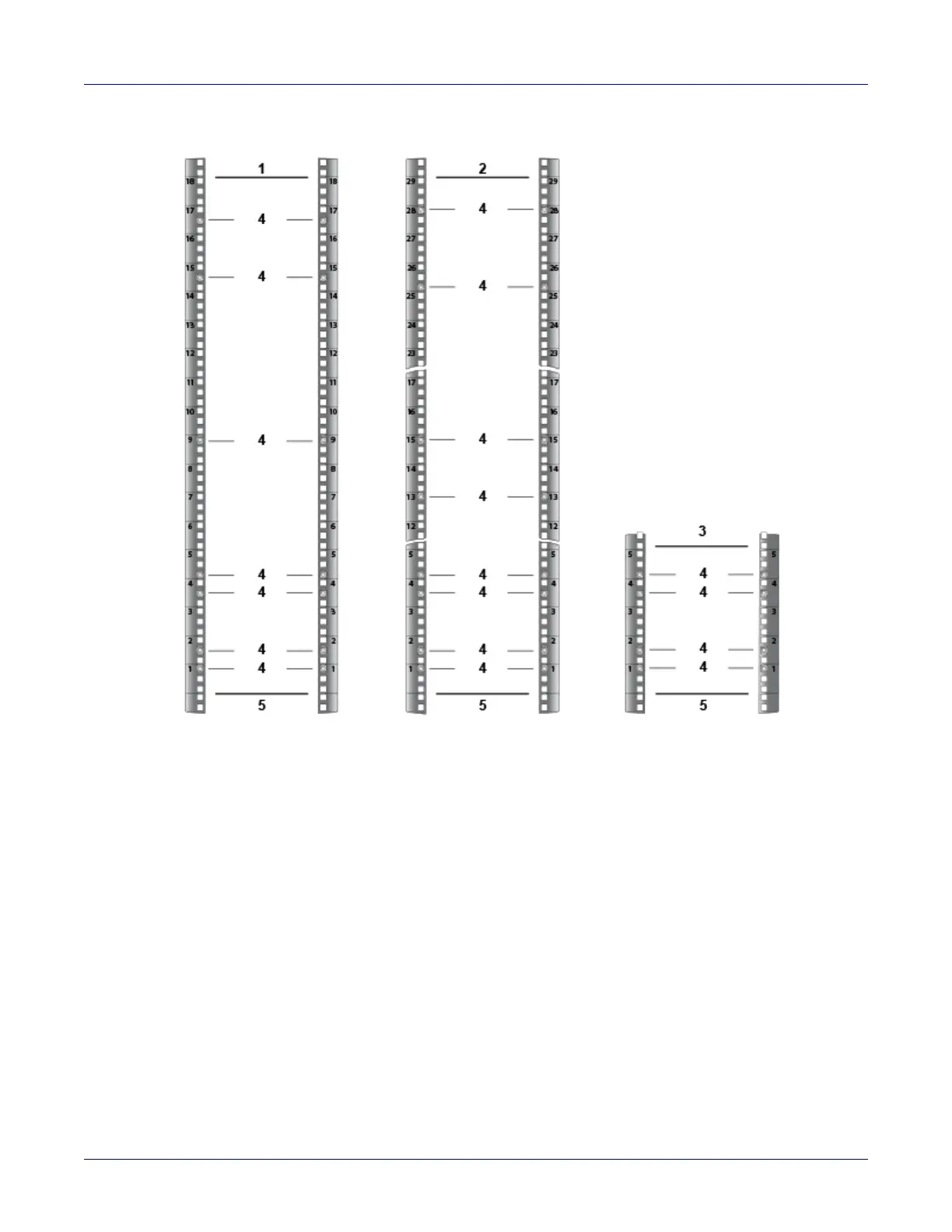

Figure 3-11: Rack mount shelf orientation
1 7512N Top (Front) 4 Cage nut locations
2 7516N Top (Front) 5 Switch Bottom
3 Rack (Rear - both switches)
To Next Page
