54 Quick Start Guide: 7500N Series Modular Switches
Four Post Rack Mount for 12-slot and 16-slot Chassis Appendix B: Parts List

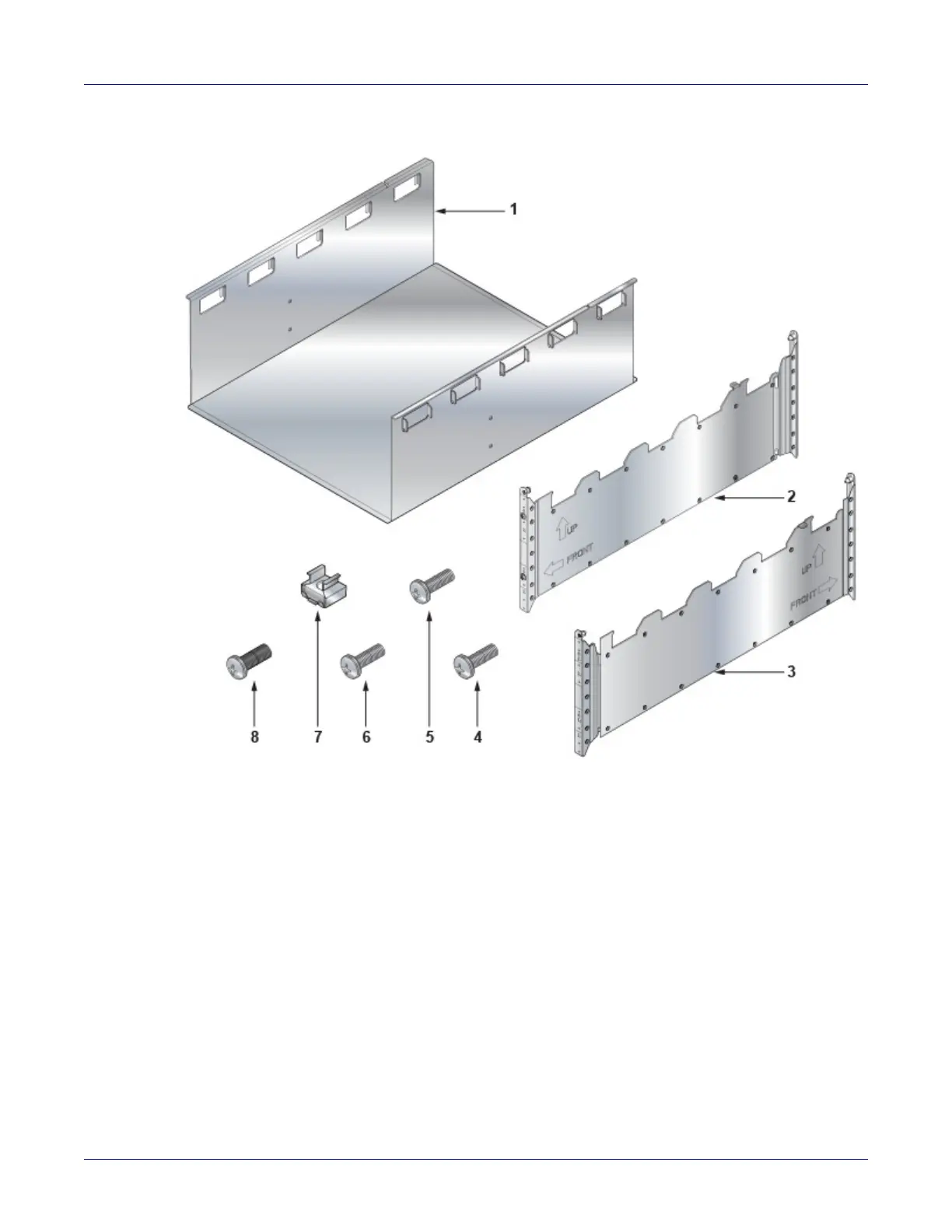

Figure B-3: Four-Post rack mount parts for the 12- and 16-slot chassis
1 Cradle 4 #10-32X5/8 pan-head Phillip
screws
7 M6 cage nuts (for square hole
racks)
2 Left telescoping arm 5 #12-24X5/8 pan-head Phillip
screws
8 M6x16 pan-head Phillips
screws
3 Right telescoping arm 6 M5X16mm pan-head Phillip
screws
To Next Page
