Camera Support 24

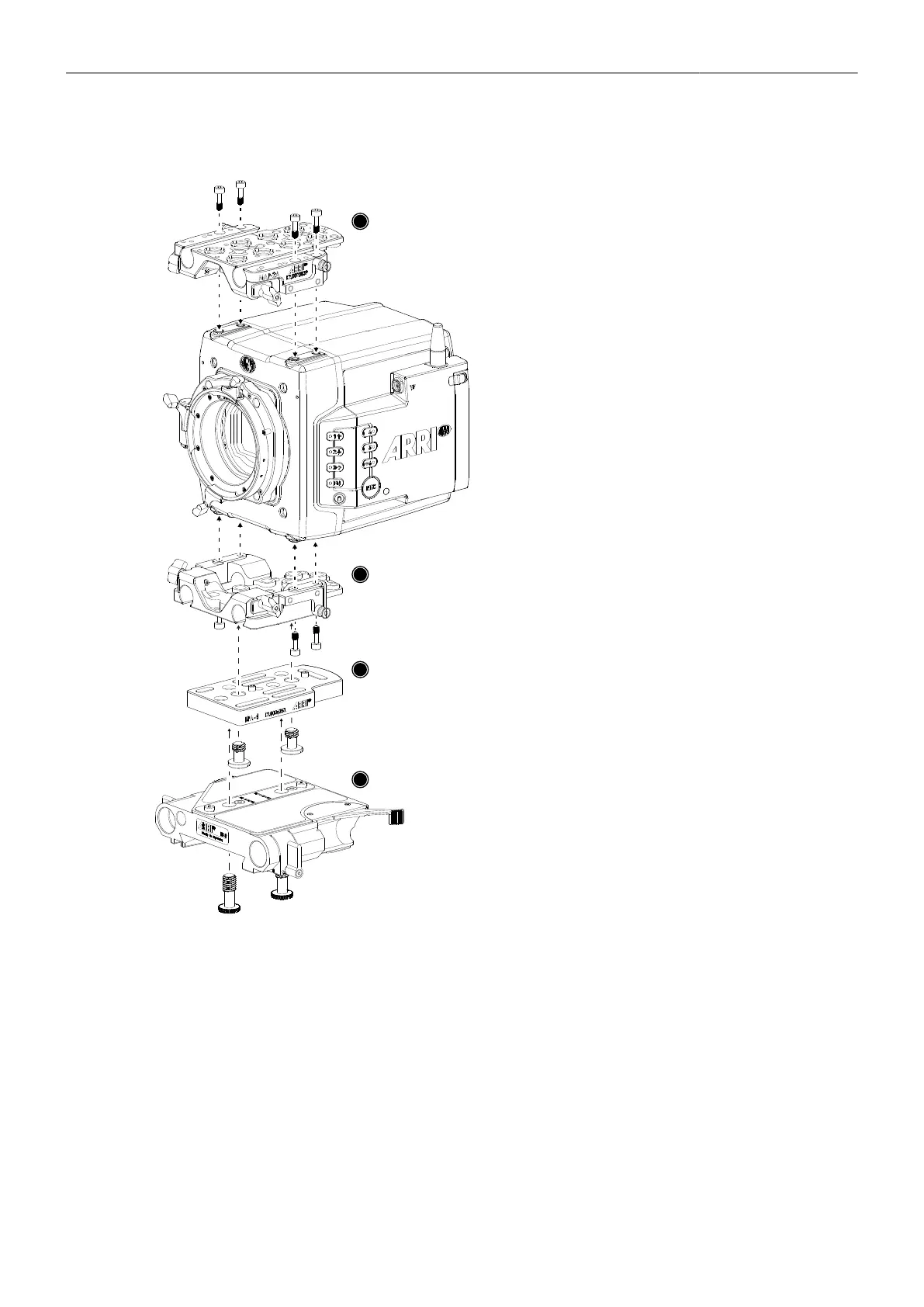

Mounting MAP-2A, BPA-4 and BP-8
► Using a 3.0 mm Allen key, fasten the Mini
Adapter Plate MAP-2 or MAP-2A (1) to the
camera top attachment points with the four
3.0 mm hex screws. Tighten them cross-
wise.
► Fasten another MAP-2 (2) to the bottom at-
tachment points.
► Using a flathead screwdriver, fasten the
Bridge Plate Adapter BPA-4 (3) to the bot-
tom of MAP-2 (2) with two screws. Two reg-
ister pins will assure a perfect fitting.
► Using a flathead screwdriver, fasten the
Bridge Plate BP-8 (4) to the BPA-4 with two
screws. Two register pins will assure a per-
fect fitting.
