Monitoring 85
Peaking Offset Shift Adjusts the threshold for Color Peaking to become active, relative to the
peaking level. Note: A negative offset shift, in particular with high ASA
ratings, can increase the peaking results.
Color Select the color for Color Peaking.
Activation of Peaking with User Buttons
1. Assign a user button with EVF/Mon. Peaking
to be used for activation of Peaking on EVF and Monitor.
2. Assign a user button with SDI Peaking
to be used for activation of Peaking on the SDI outputs.
3. Press the user button to toggle Peaking on/off
For more information on user buttons please see "User Buttons", page 107.
Activation of Peaking in Camera Menu
1. Select MENU > Monitoring > EVF / Mon. > Peaking
to activate the exposure tool on EVF and Monitor.
2. Select MENU > Monitoring > SDI > SDI Processing > Peaking
to activate the exposure tool on the SDI outputs.
18.7.2 Zoom
The camera supports to zoom into the image e.g. to better judge focus. The camera offers five zoom
positions: center, top left, top center, top right, bottom right, bottom left. While Zoom is activated, the
zoom position can be changed by using the JOGWHEEL or the soft buttons on the MVF-2, if the
monitor is flipped out and set to display the live image. Active Zoom is indicated by an orange frame
around the image. Frame lines are deactivated while Zoom is active.
Note: Anamorphic Desqueeze is temporarily disabled while Zoom is active.
Zoom on EVF/Monitor

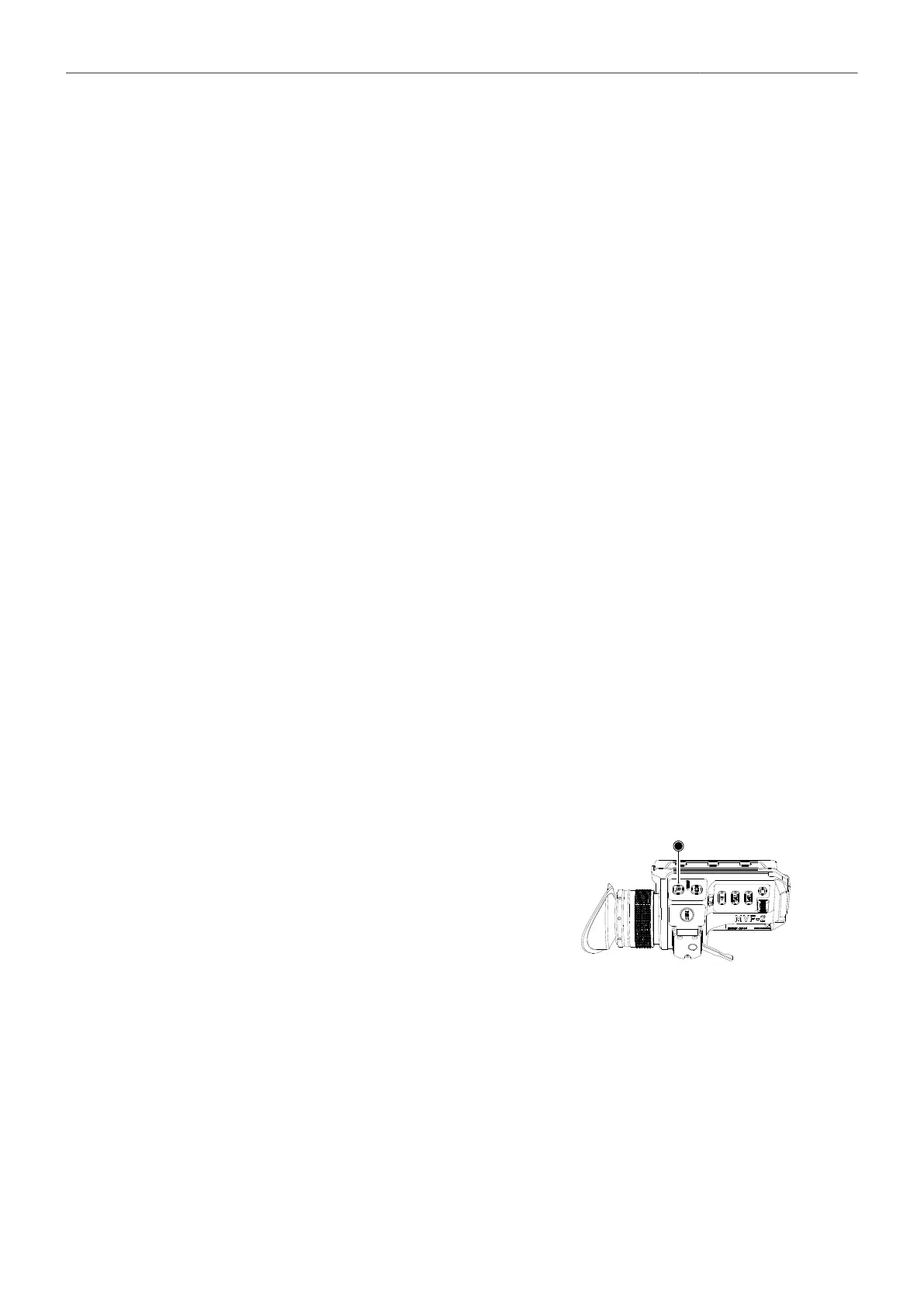

The MVF-2 has a dedicated ZOOM button (1).
1. Press the ZOOM button to activate/deactivate
Zoom on EVF and Monitor.
2. To change the Zoom position, rotate either the
JOGWHEEL or the USER WHEEL.
Note: Changing the zoom position using the JOG-
WHEEL or USER WHEEL is not supported when
the monitor is set to display the HOME screen or
the camera menu.
1
Zoom on SDI
Zoom on the SDI outputs can only be activated through a user button. The camera offers three SDI
Zoom related user button functions:
1. Assign a user button with SDI Zoom.
The SDI Zoom user button activates/deactivates Zoom on the SDI outputs.
2. Assign a user button with SDI Zoom Position.
The SDI Zoom Position user button changes the Zoom position while SDI Zoom is activated.
