Connecting a High-Definition TV (HDTV) and an A/V Receiver for Video
Note: If the A/V receiver includes an HDMI input and output, the DCX3600-M’s HDMI output can be
connected directly to the A/V receiver’s input and the A/V receiver’s HDMI output directly to the TV.
Because HDMI provides both video and audio output, no additional audio connections to the A/V
Receiver and TV are required.

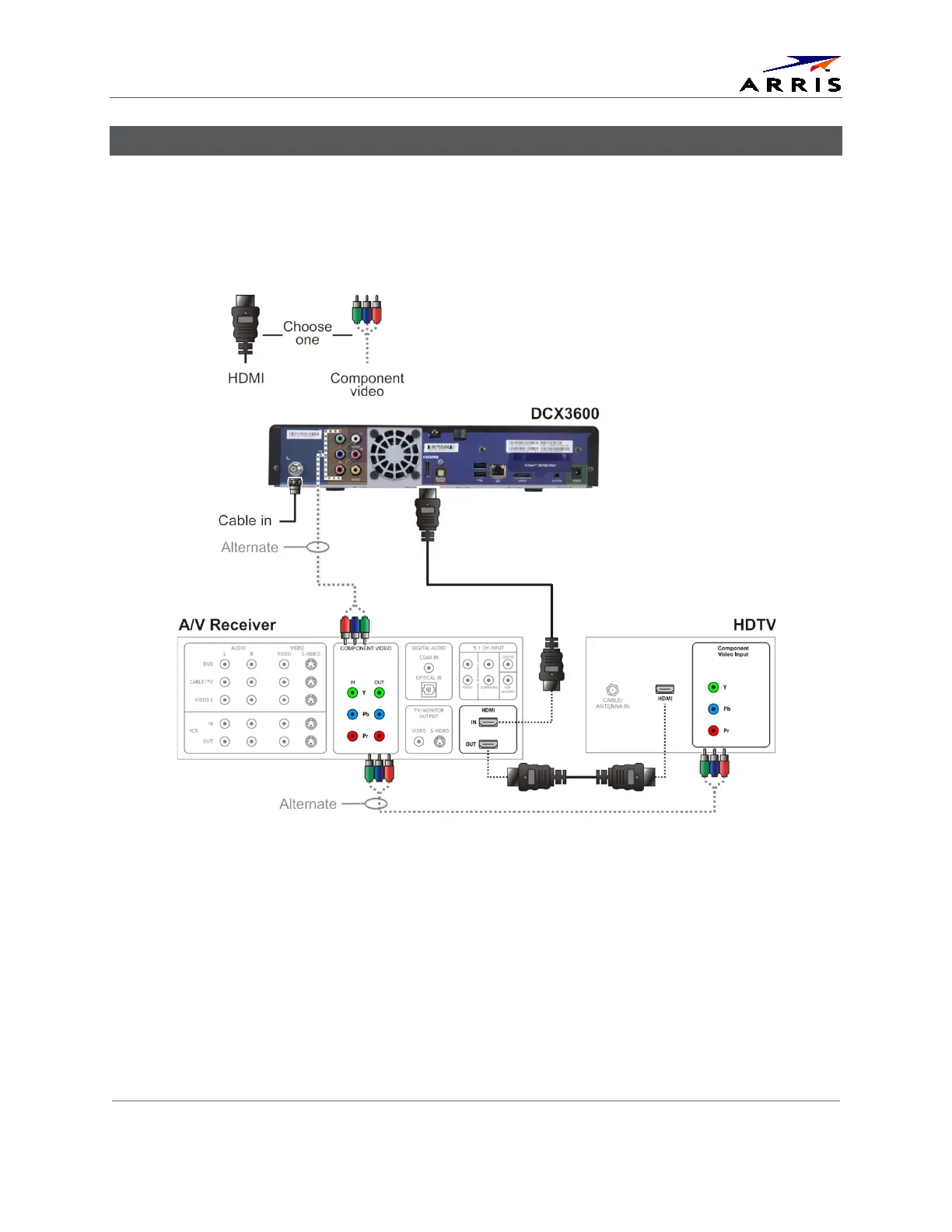

Figure 10 – High-Definition TV (HDTV) and an A/V Receiver for Video Connection
