Installation
Set-Top Entertainment Hub DCX3600-M • User Guide 22
365-095-25659 x.1
Connecting a Standard-Definition TV
• Connect the stereo audio cable to the audio L or R connector on the DCX3600-M
and the audio left and audio right connectors on the SDTV.
• Make the video connection between the DCX3600-M and the television using the
composite video output on the DCX3600-M.

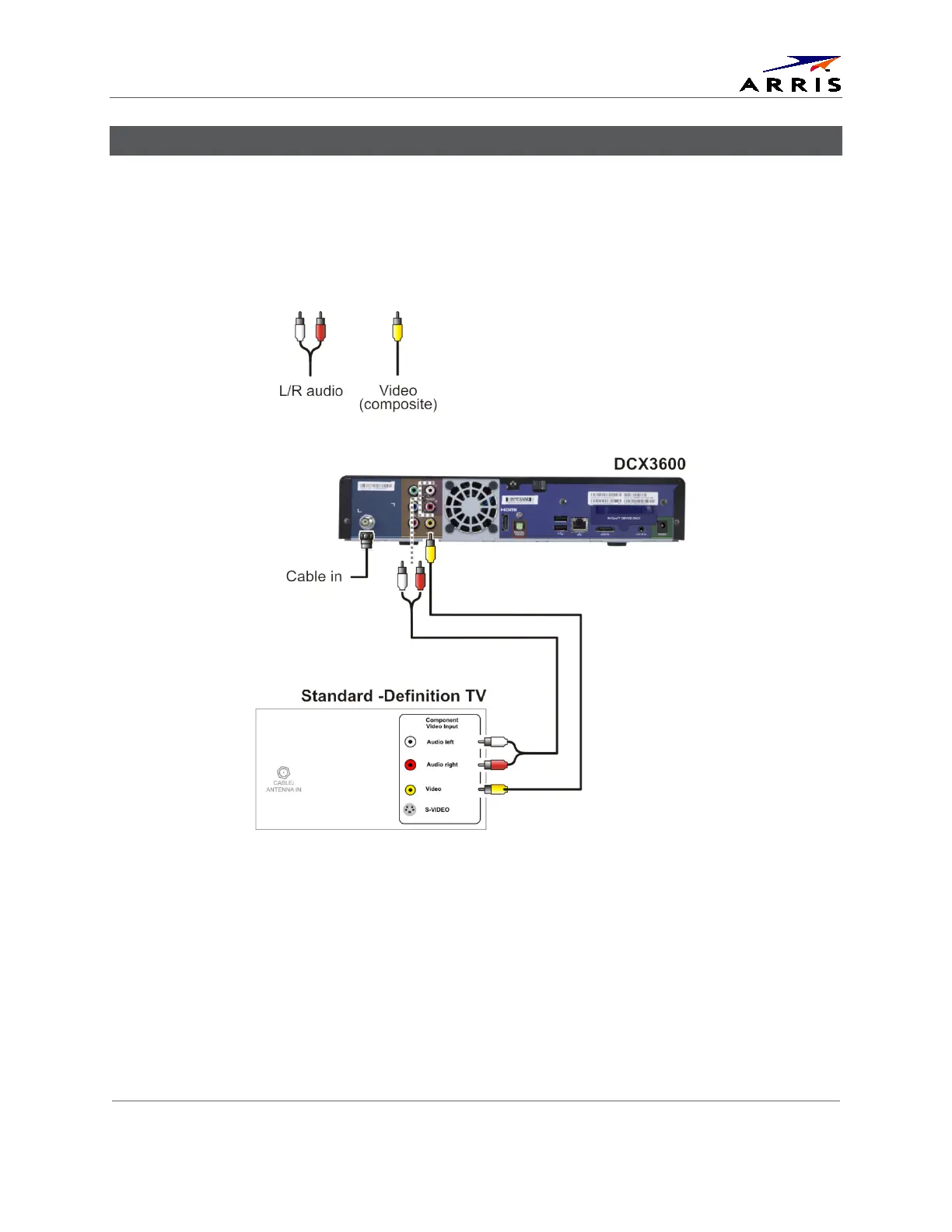

Figure 12 – Standard-Definition TV Connection
