Connecting a High-Definition TV (HDTV) and an A/V Receiver for Audio
Note: If the A/V receiver includes an HDMI input and output, the DCX3600-M’s HDMI output can be
connected directly to the A/V receiver’s input and the A/V receiver’s HDMI output directly to the TV.
Because HDMI provides both video and audio output, no additional audio connections to the A/V
Receiver and TV are required.
Note: If the receiver can check the baseband and digital audio (S/PDIF) ports for appropriate channels,
connect both the baseband and digital audio connections. Otherwise, do not connect both the
baseband left/right composite connections and the digital audio connection. The baseband
connections are not necessary because the digital audio port provides a single audio interface for
digital and analog channels.

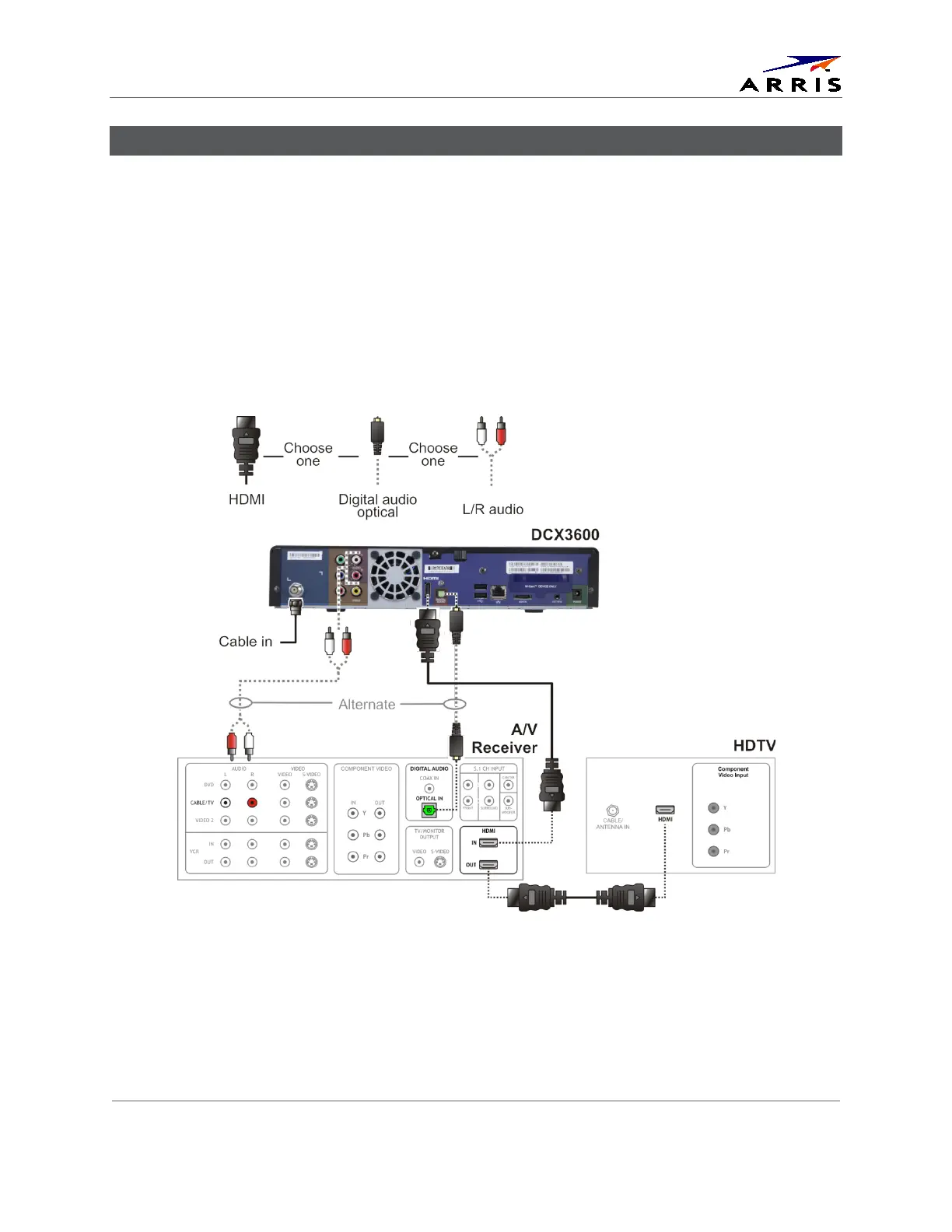

Figure 11 – High-Definition TV (HDTV) and an A/V Receiver for Audio Connection
