Chapter 3: Install and connect your Data Gateway
3. Online: Indicates Internet data transmission status.
4. 2.4 GHz: Indicates the status of the 2.4 GHz wireless LAN.
5. 5 GHz: Indicates the status of the 5 GHz wireless LAN.
6. MoCA: Indicates connectivity between the Data Gateway and other home devices
connected via the MoCA network.
7. WPS: Indicates that Wireless Protected Setup (WPS) is active.
8. WPS button: Begins associating the Data Gateway with a wireless device..
9. USB: USB host connector. Future support for external USB devices.
Rear panel

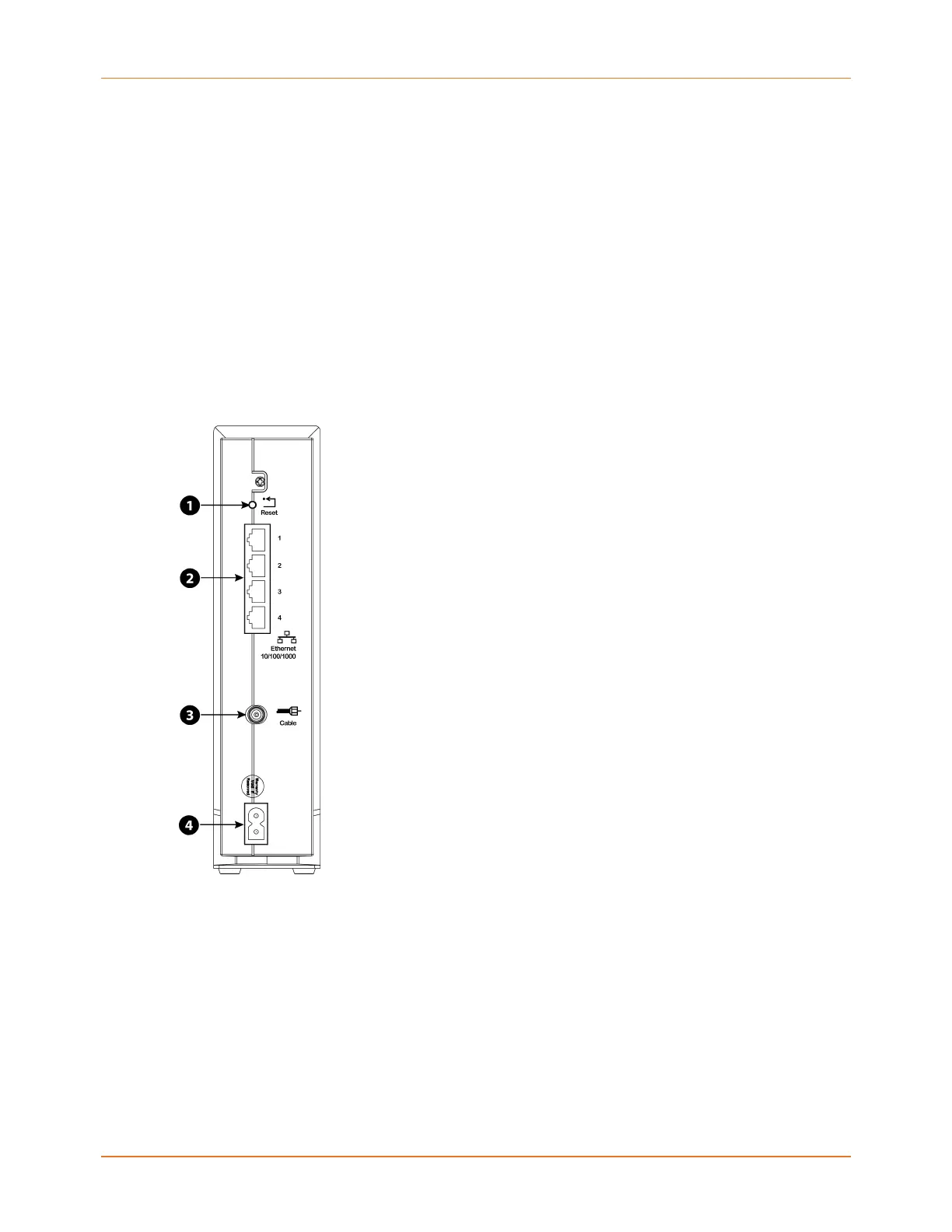

The rear of the Data Gateway has the following connectors and controls.
1. Reset button: Resets the Data Gateway as if you power cycled the device. Use a pointed
non-metallic object to press this button.
2. Ethernet (1 - 4): Connectors for use with a computer LAN port.
3. Cable: Connector for the coaxial cable.
4. Power: Connector for the power cord.
Touchstone DG3270 Data Gateway User Guide STANDARD Revision 1.1 16
