3.3.8 PMOD Connector
The MAX1000 board offers connectivity to PMOD compatible connectors (2x6-pin or 1x12-pin),
making it possible to add a big variety of sensors or ICs to the system. Below is the connection

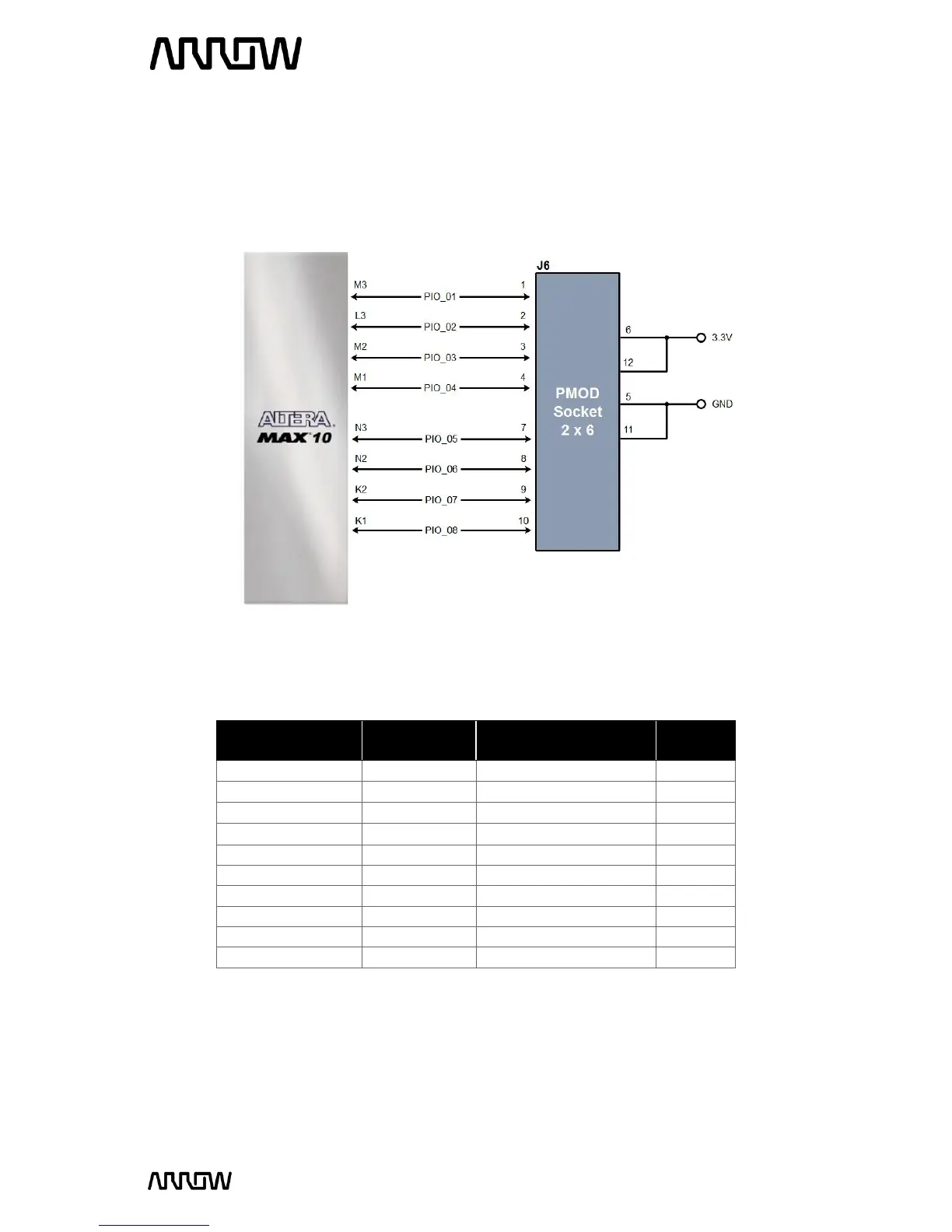

schematic and pinning information.
Figure 13 – PMOD Header Connections
Board Reference
FPGA Pin No.
Description
I/O
Standard
PIO_01
PIN_M3
PMOD Pin 1
3.3 V
PIO_02
PIN_L3
PMOD Pin 2
3.3 V
PIO_03
PIN_M2
PMOD Pin 3
3.3 V
PIO_04
PIN_M1
PMOD Pin 4
3.3 V
PIO_05
PIN_N3
PMOD Pin 5
3.3 V
PIO_06
PIN_N2
PMOD Pin 6
3.3 V
PIO_07
PIN_K2
PMOD Pin 7
3.3 V
PIO_08
PIN_K1
PMOD Pin 8
3.3 V
GND
N/A
Ground
N/A
3.3V
N/A
3.3 V Power to PMOD
3.3 V
