5.2.8 Connecting the Components
Next step is to make the proper connections between the three components we just added to the
schematic.

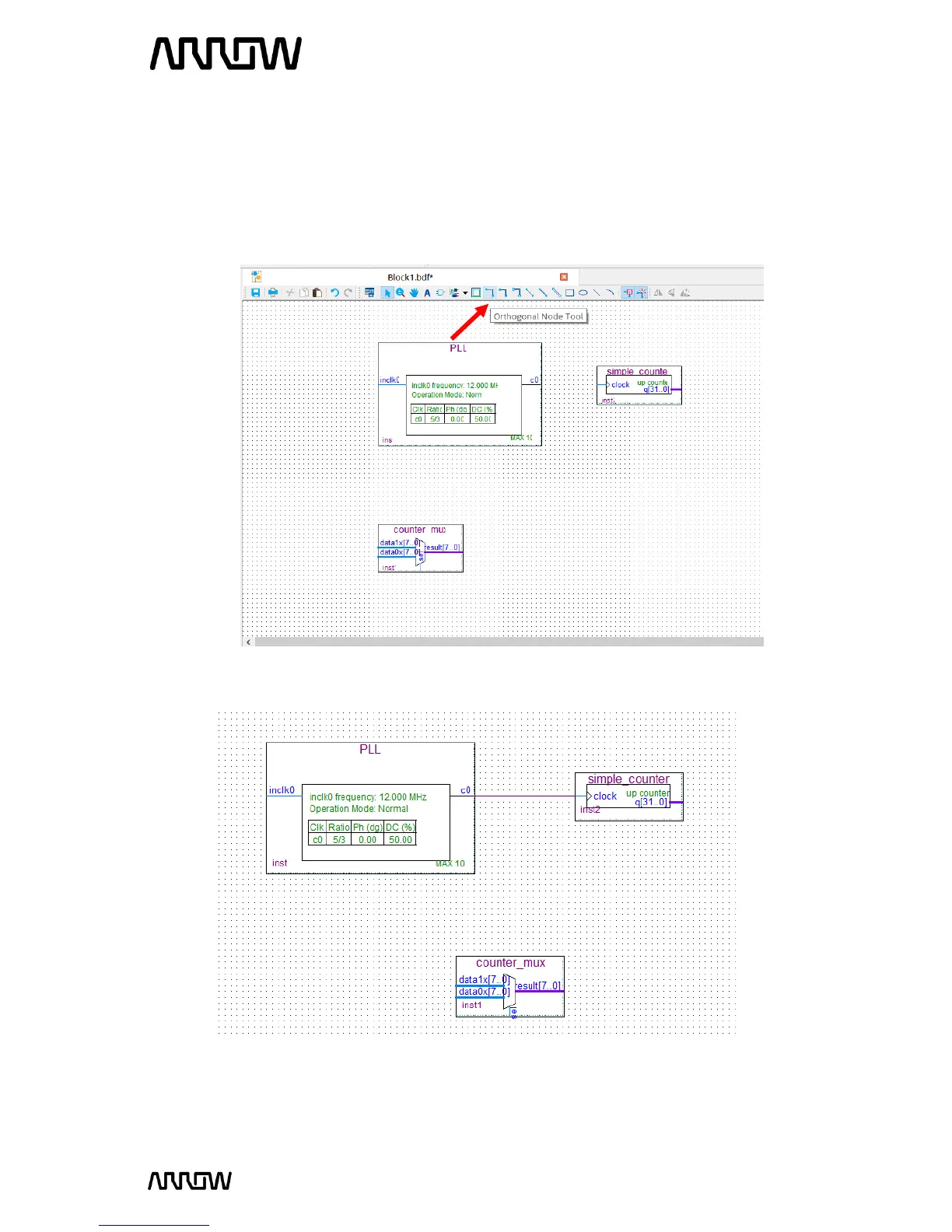

5.2.8.1 Select the “Node Tool”.
5.2.8.2 Connect the c0 of the PLL to the simple_counter as shown below:
This will mean that a single signal (c0) is connected to the simple_counter (clock).
