MAX1000 User Guide www.arrow.com
Page | 69 July 2017

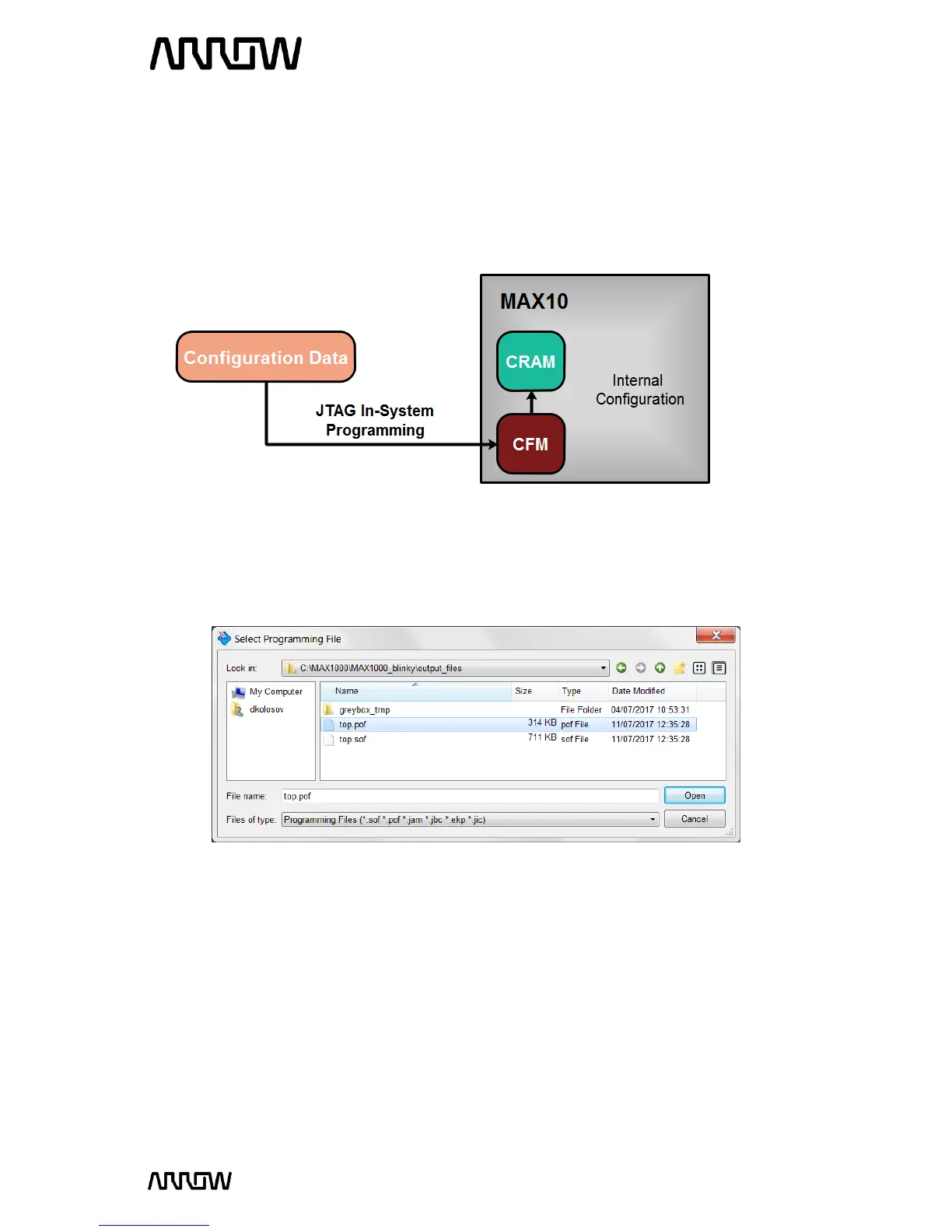

6.2 Internal Configuration
The configuration data to be written to CFM will be part of the programmer object file (.pof). This
configuration data is automatically loaded from the CFM into the MAX10 device when the board
is powered up.
6.2.1 Going back to step 6.1.10, instead of choosing the .sof file, choose the .pof file.
6.2.2 Click “Open”.
