ARTURIA – CS-80V – USER’S MANUAL
40

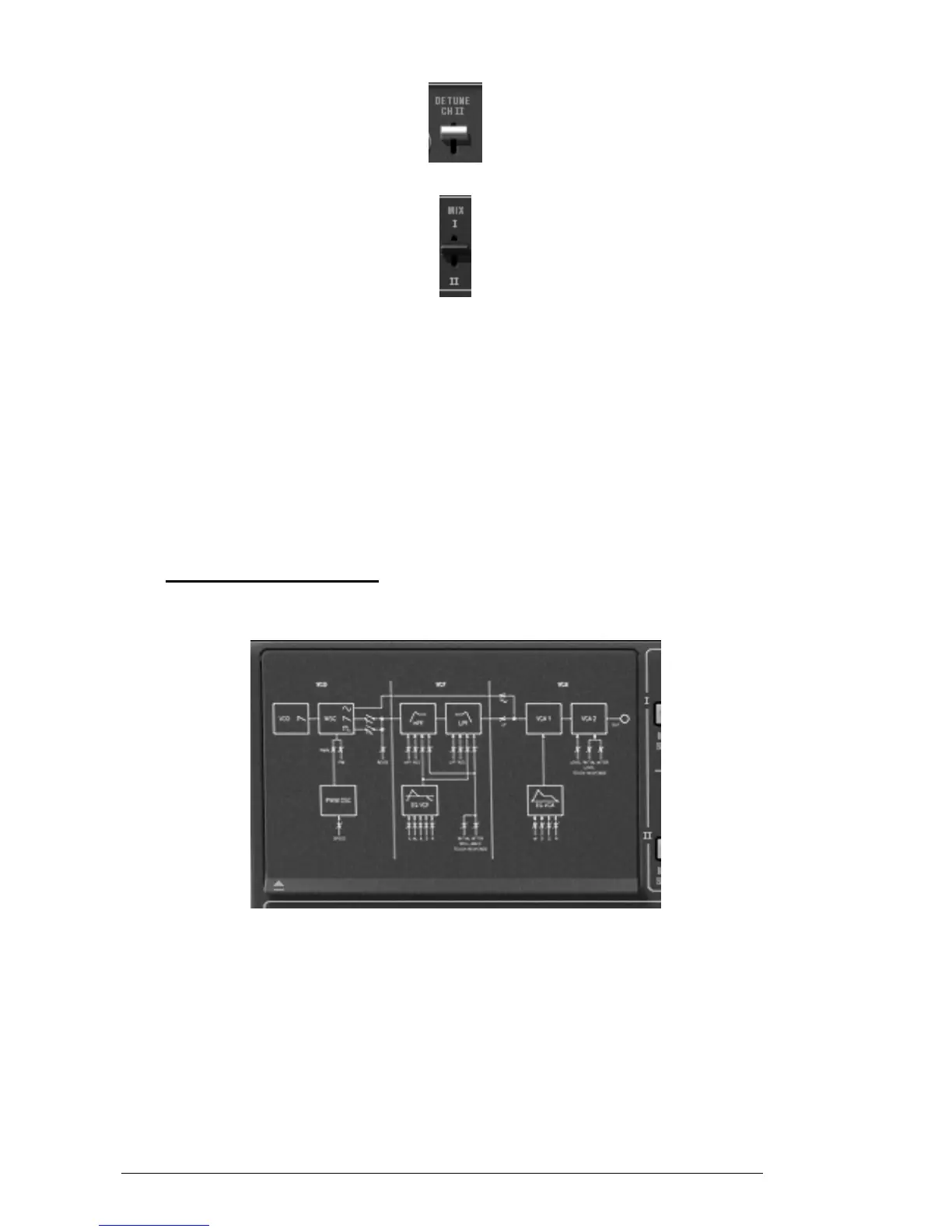

Detuning of the second line
Mixing of the two lines
«SYNC» and «LINK» increase your sound design options. The «SYNC» button
synchronizes the oscillator of the first line with the oscillator of the second. When
activated, it is the frequency of the second oscillator that will be audible, the frequency of
the first bringing the harmonics.
The «LINK» button connects the oscillator of the second line towards the filters of the
first. The filters and amplifier of the second line are not used and therefore deactivated to
conserve calculation power.
5.3 THE MODULATION MATRIX
Closed modulation hatch
The original CS-80 possessed no other sources of modulation than those described
above. To increase the possibilities of synthesis, a new modulation matrix is available. To
activate it, open the left hatch. (On the original CS-80 this hatch held four mechanical
preset selectors.)
