ITS101 Installation Manual
See Figure 5 for the connector position on the ITS101 PCB.
2.8. Video Output CVBS
The 'VIDEO OUTPUT' connector is meant for service purposes. A combination of the life view
and the latest image with license plate result is displayed via this video output.
2.9. USB
The USB interface is only for use by ARVOO.
ARVOO Imaging Products B.V. page 11 of 33

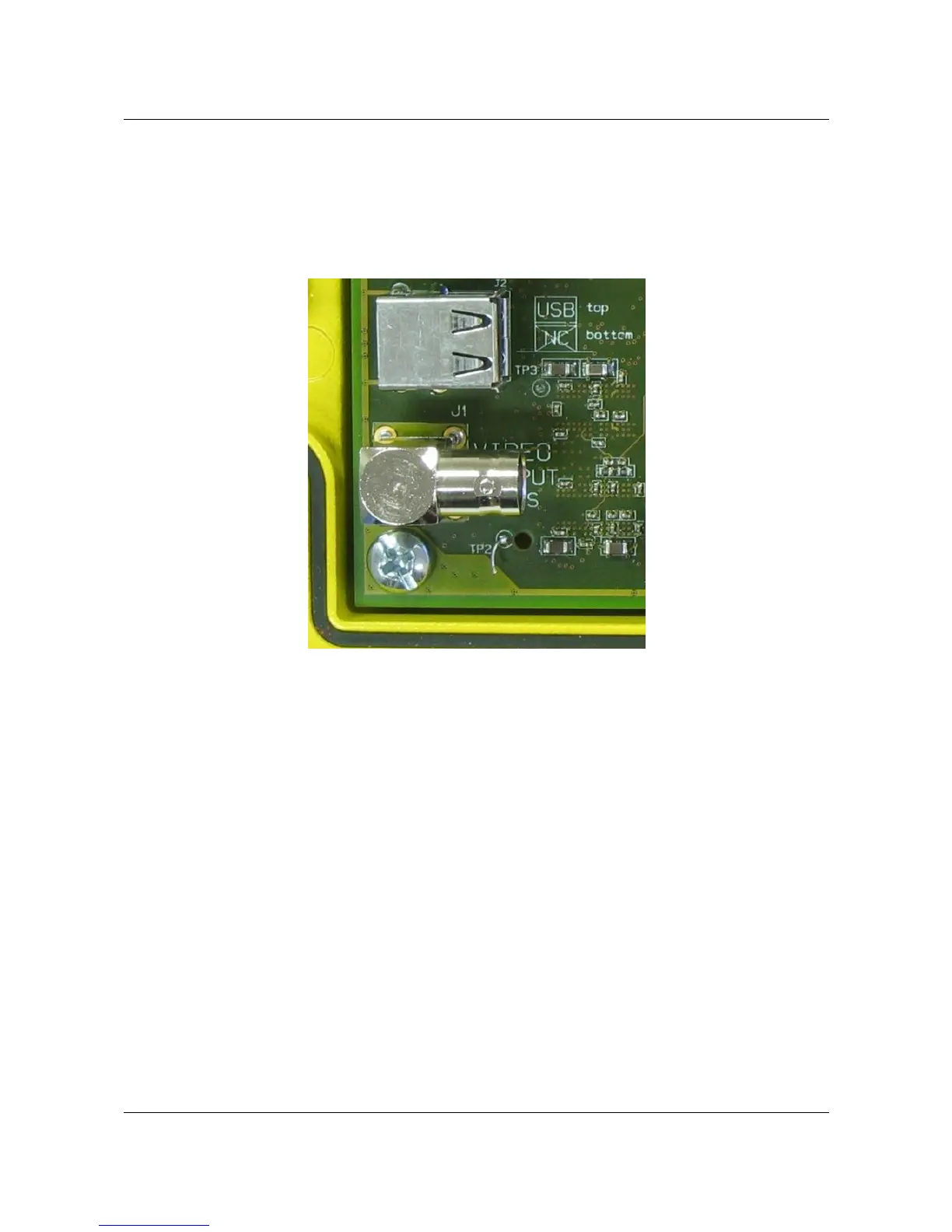

Figure 6: Detail USB and Video Output CVBS.
