ARVOO ITS101 - LED Status Indicators

ITS101 Installation Manual
LED
designation
Description Colour Remarks
POWER Power supplied to the ITS101
AND internal power supply's
function correct
Green
CAMERA Interface to ANPR Digital or
CVBS is OK
Amber
Ethernet Activity Green Part of Ethernet
connector
ANPR License plate recognized Amber
In 1 Green
In 2 Green
Out 1 Output is active, turned-on Red
Out 2 Output is active, turned-on Red
Relay 1 Relay is active, turned-on Amber
Relay 2 Relay is active, turned-on Amber
Table 8: LED description of the ITS101.
ARVOO Imaging Products B.V. page 27 of 33

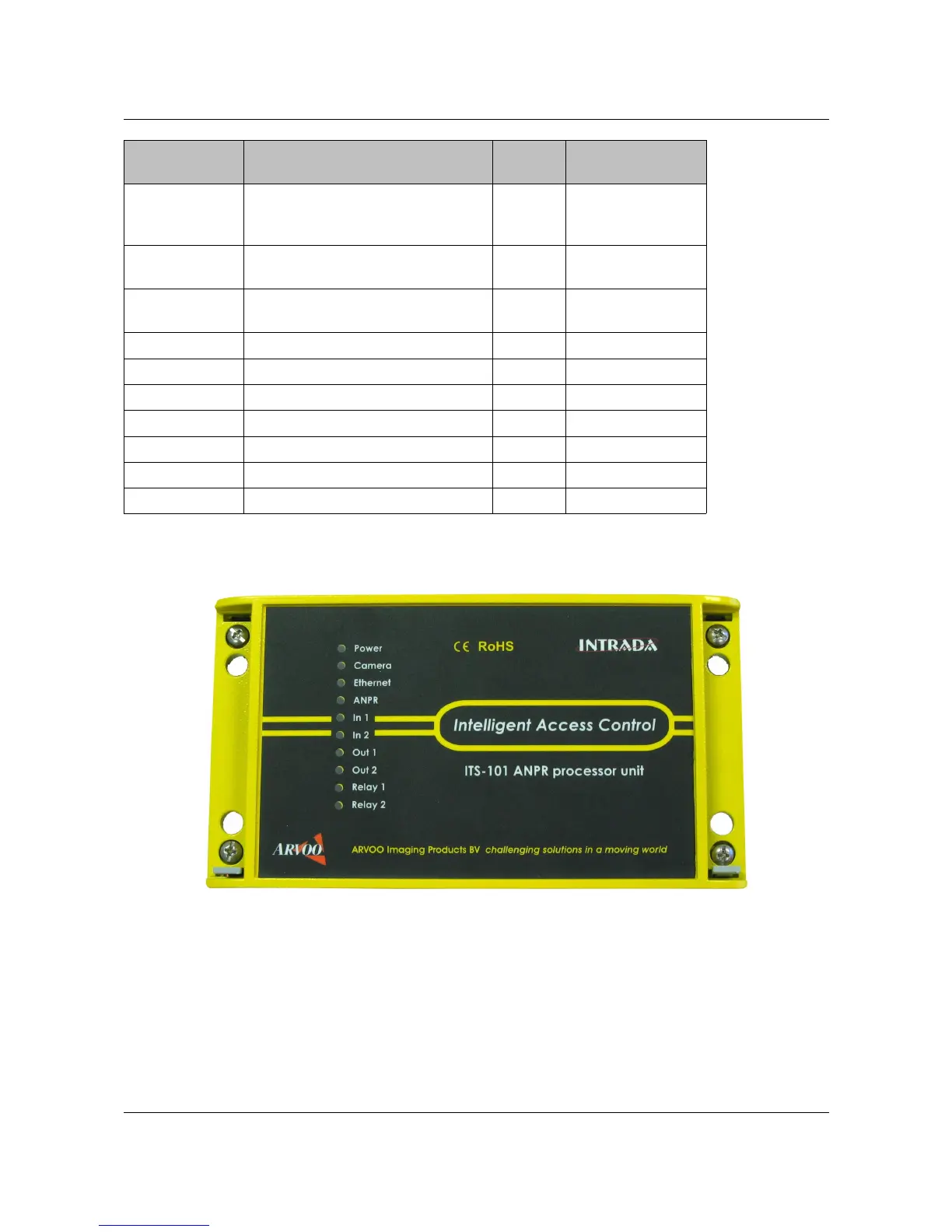

Figure 14: ITS101 front panel.
