AS MOTOR AS 62 E-Allmaher - Device Description

15

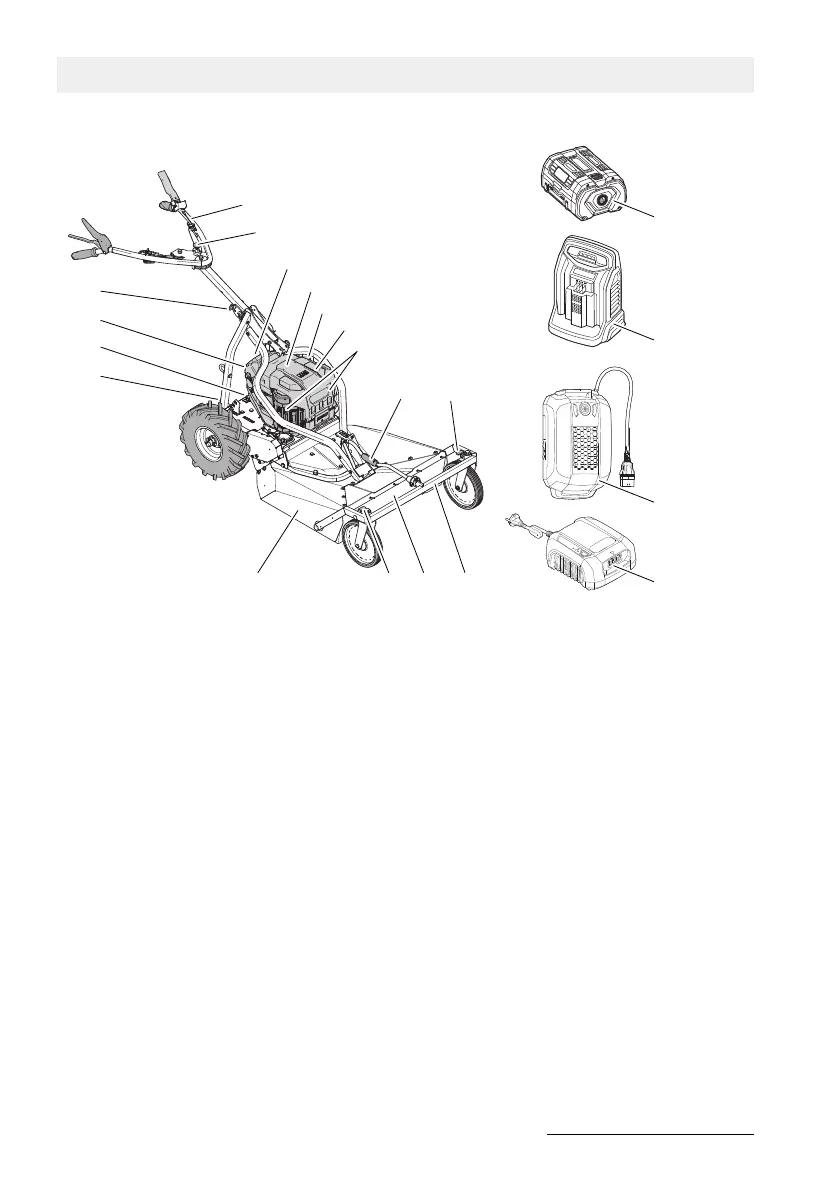

Device description
Illustration shows AS 63 E-Allmäher
7
1
12
8
16
17
18
19
2
15
14
910811
13
3
4
16
5
6
1
Handlebar with control elements
2
Lever for lateral adjustment of
handlebar
3
On/off switch with engine status light
4
Selector switch engine speed
5
Connection socket for backpack battery
6
Cover battery compartment
7
Cutting height adjustment front
8
Interlock steerable front wheel
9
Protection bow
10
Protection skirt
11
Cover
12
Cutting height adjustment rear
13
Type plate
14
Air filter
15
Lever for height adjustment of
handlebar
16
Battery (not included)
17
Charger (not included)
18
Backpack battery (not included)
19
Charger for backpack battery (not
included)
