AS MOTOR AS 62 E-Allmaher - Transport Position 1; Transport Position 2

29

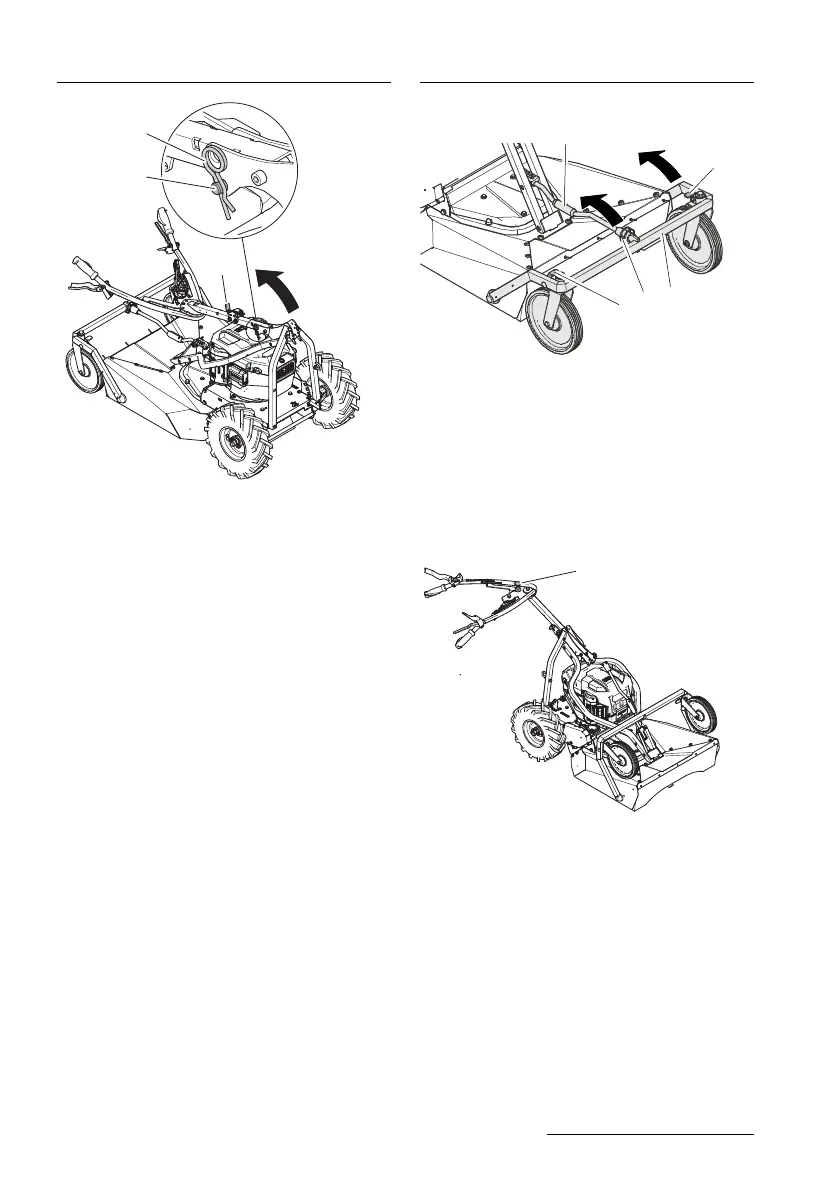

Transport position 1
3
2
1
Fig.8:
1. Pull off the cotter pin (1) and remove the
safety pin (2).
2. Insert the safety pin(2) through the borings
and secure the safety pin on the other side
with the cotter pin(3).
3. Pull the lever(3) out of the notch for
handlebar height adjustment and flip the
guide rail to the front.
Transport position 2
1
4
4
2
5
1. Release the steerable front wheel interlock
(4) on both front wheels.
2. Pull off the pin cotter(2) on the crank(1)
for the height adjustment.
3. Fold the crank(1) fully up for height adjust-
ment.
4. Fold the rollbar(5) fully up.
5. Lock the steerable front wheels (4).
3
6. Pull the locking bolt(3) for the handlebar
side adjustment out of the detent hole.
7. Beware: Do not squeeze the Bowden
cables when swivelling the handlebar.
Swivel the handlebar anti-clockweise all the
way to the stop.
