Unfolding the device
2
1

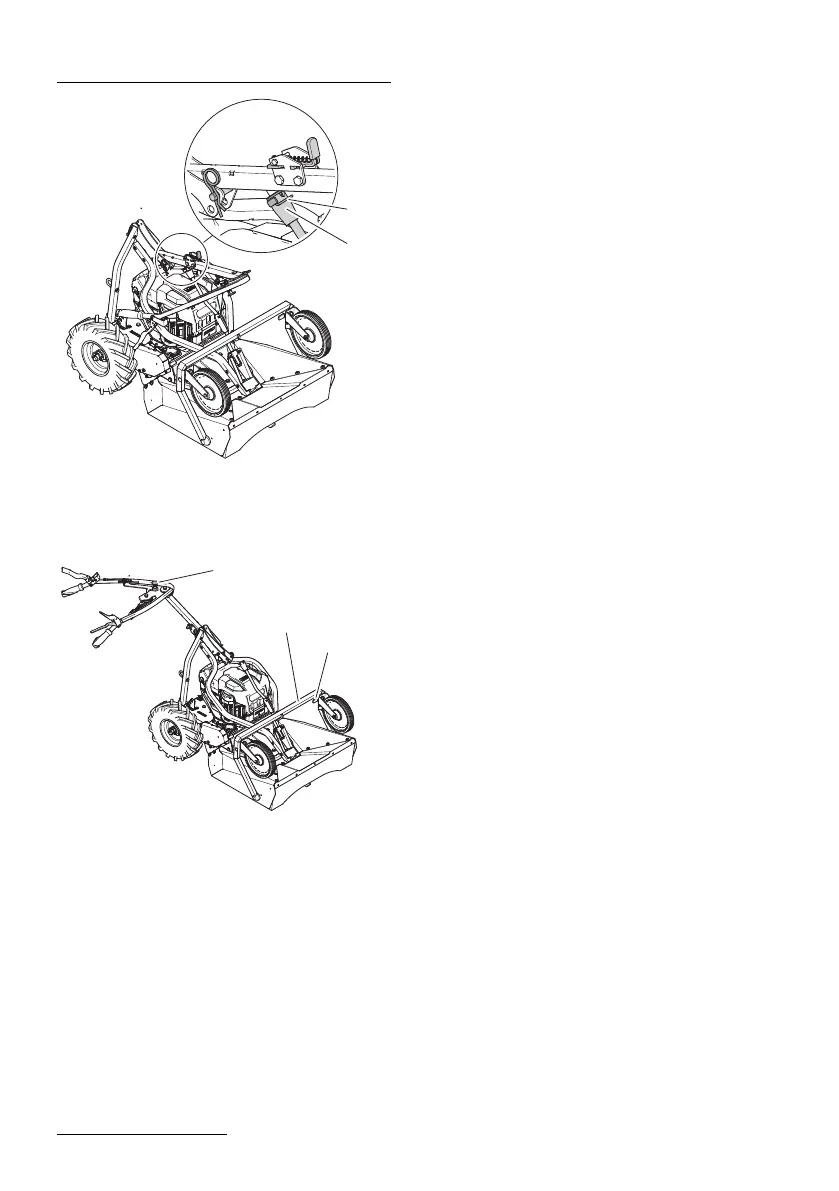

Fig.14:
1. Pull off the pin cotter(2) between guide rail
and crankof the height adjustment(1).
2. Unfold the guide bar until it engages.
3
4
5
Fig.15:
3. Pull the locking bolt(3) for the handlebar
side adjustment out of the detent hole.
4. Beware: Do not squeeze the Bowden
cables when swivelling the handlebar.
Swivel the handlebar clockwise to the de-
sired position. Let the stop bolt engage in
one of the three notches of the guide rail.
5. Release the steerable front wheel interlock
(4) on both front wheels.
6. Fold the rollbar(5) fully down.
7. Fold the crankfor height adjustment (1) for-
ward.
8. Lock the crankfor the height adjustment
with the spring cotter(2) on the rollbar.
