24

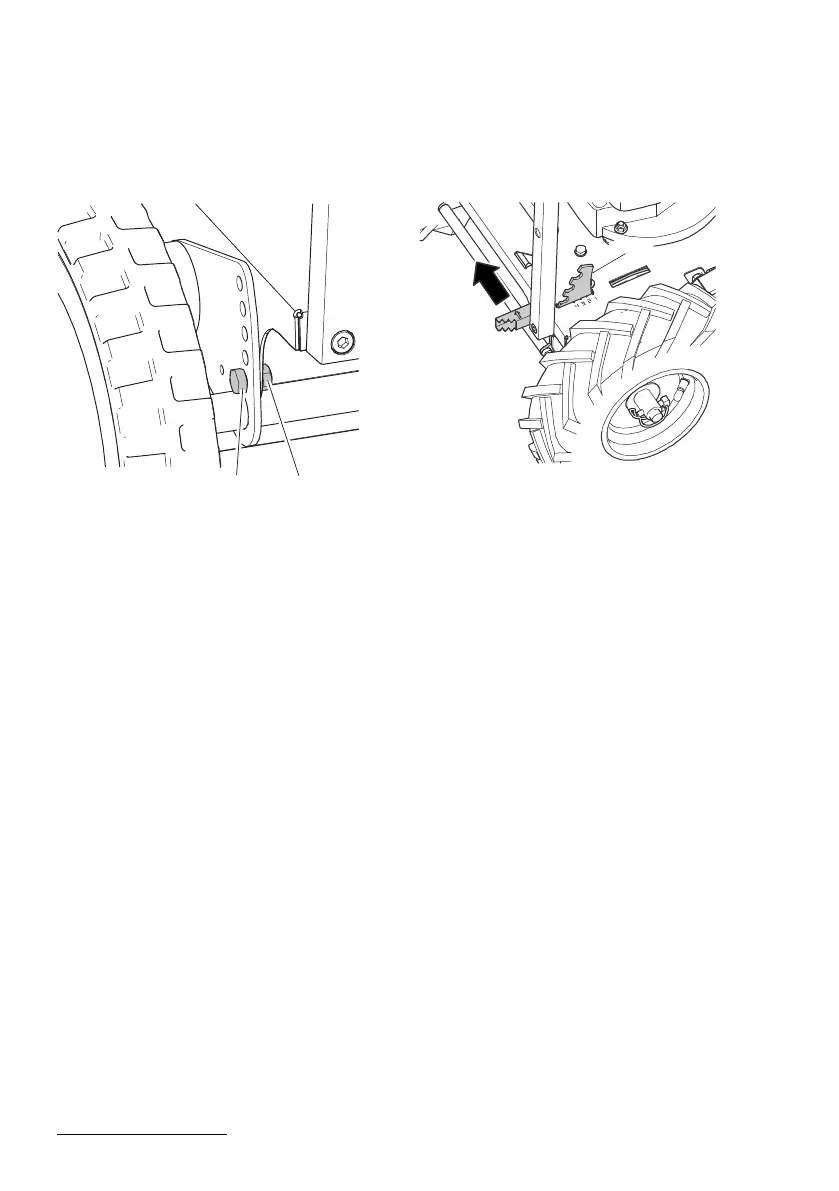

Rear axle
AS 62 E-Allmäher
The height on the rear axle can be adjusted to
5 positions.
1. Switch off the engine and wait until the en-
gine comes to a standstill.
2 1
2. Slacken the nuts ( 1) and remove the
screws (2).
3. Lift the device to the desired height.
4. Insert the screws (2) into the hole from the
outside.
5. Tighten the nuts (1) on the screws(2).
Rear axle
AS 63 E-Allmäher
The height on the rear axle can be adjusted to
4 positions.
1. Switch off the engine and wait until the en-
gine comes to a standstill.
1
Fig.6:
2. Push the lever on the rear axle to the left
using your foot.
3. Lift the device to the desired height.
4. Release the lever and let it engage in the
desired height.
ð The edge (1) shows the set position on the
scale.
