TD 92679GB
12 April 2011 Ver. D
Installation Guide
Elise3
19
Install the Port Driver on Windows XP/Vista
Note: When switching between mass storage mode and network mode, it takes about 30
seconds before the module can be accessed with the 192.5.36.229 address.
1 Connect a mini-USB type B cable between the USB port on your PC and the
management port on the module.
The Found new hardward wizard opens but at this stage there is no valid port driver
so close the wizard and continue to install the driver.
2 Press the Mode button twice to change the mode to mass storage.

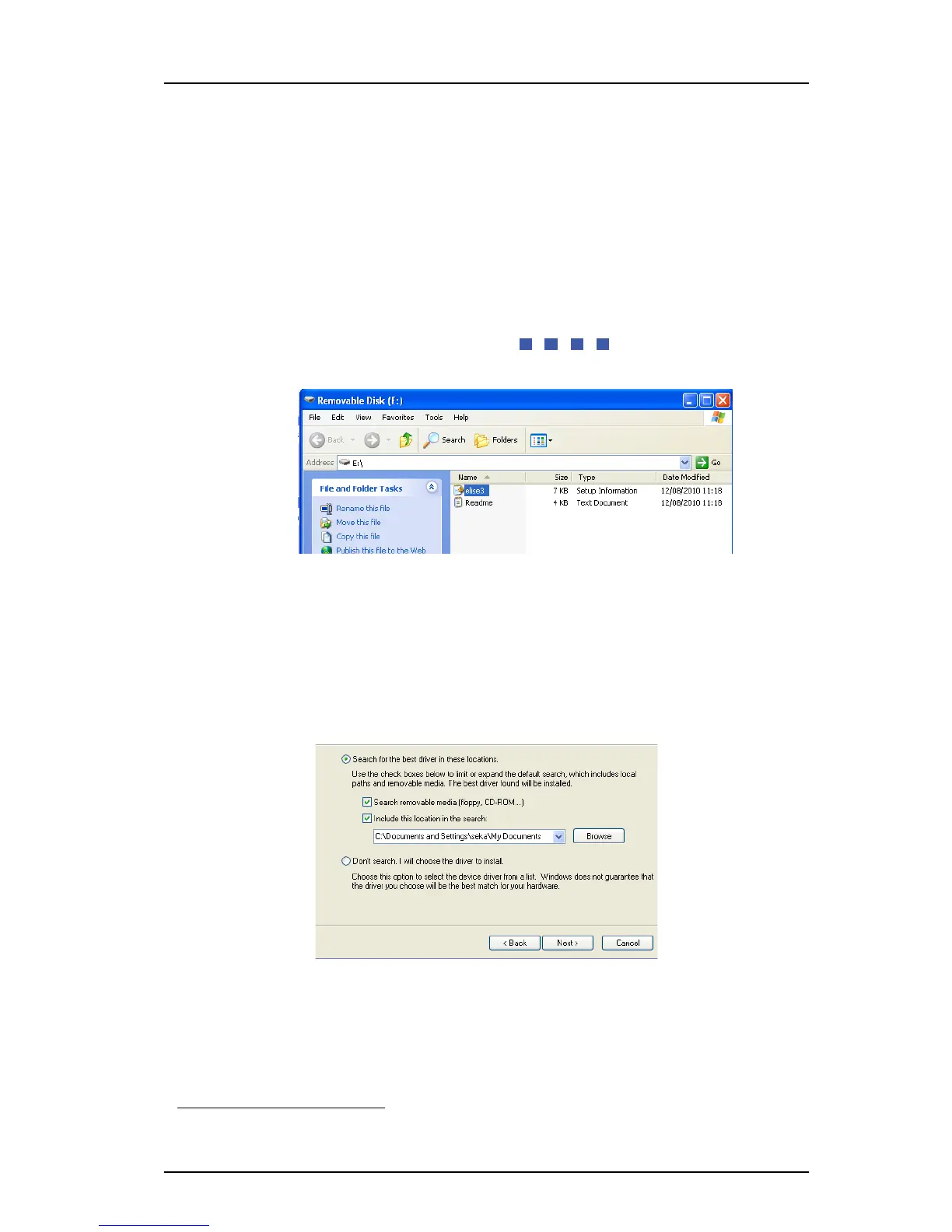

The module will now turn up as a mass storage device on your computer. This is
indicated by slow flashing blue light
on the Mode button LED.
3 Locate the required “elise3.inf” driver and save it on your PC.
4 Press the Mode button twice again to change the mode to network access
1
.
The Found new hardware.... dialogue box opens.
5 Select No, not this time and click “Next”.
6 Select Install from a list or specific location (Advanced) and click “Next”.
7 Select Search for the best driver in these locations.
8 Select the Include this location in the search: check box.
9 Browse to the folder where the port driver is saved.
10 Click “Next”. The installation of the port driver begins. If a message opens, saying
the software has not passed Windows Logo testing, click “Continue Anyway”.
11 Click “Finish”. A dialogue box will open and inform you that new hardware is
installed.
1. If not pressed within 10 minutes, the module will automatically change to Network access (default mode).
