Ascon Tecnologic - X34 - OPERATING INSTRUCTIONS - PAG. 20

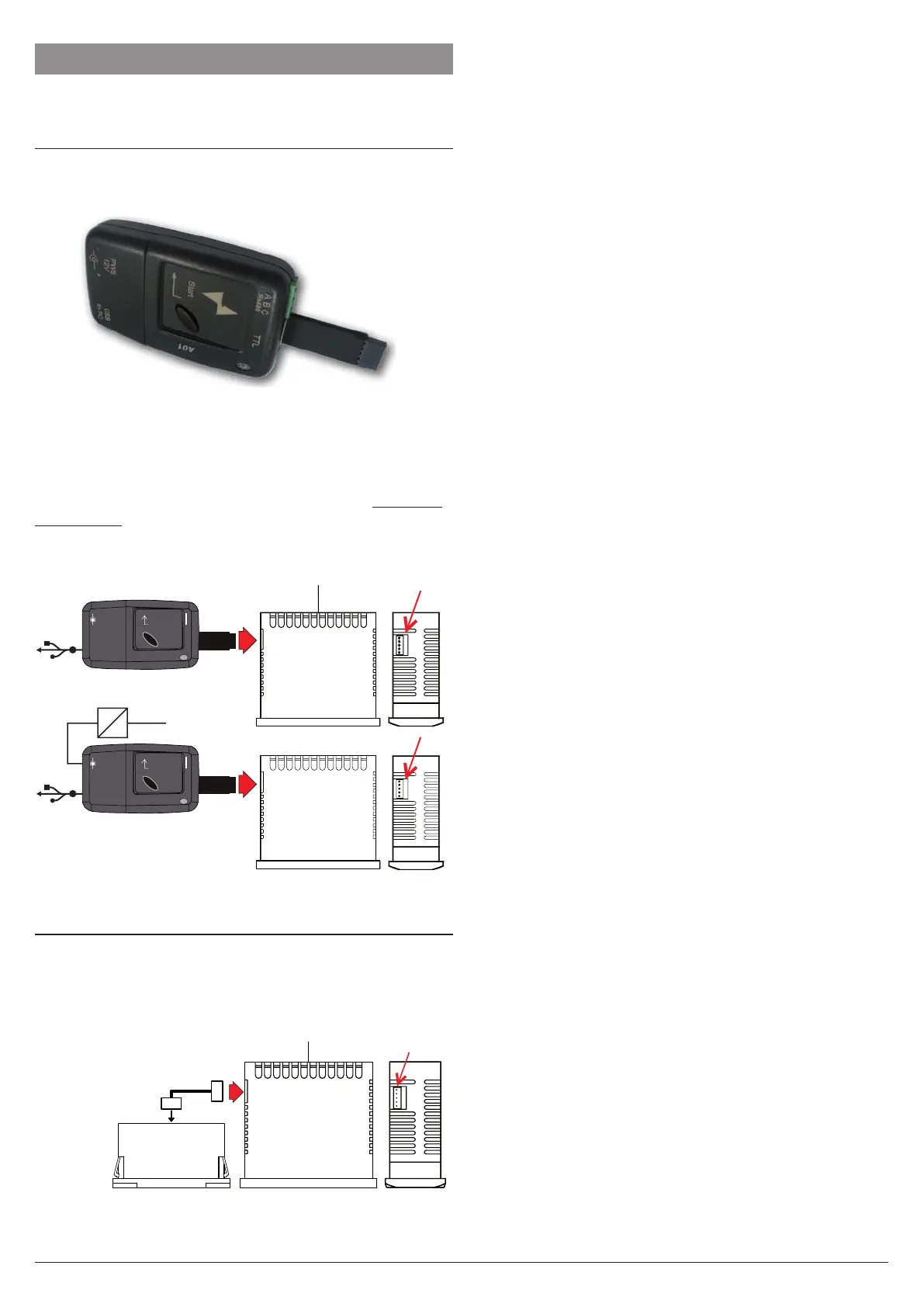

6. ACCESSORIES
The instrument is equipped with a connector that allows the
connection to some accessories.
6.1 Parameters configuration by “A01”
The instrument is equipped with a 5 poles connector that
allows the transfer from and toward the instrument of the
functioning parameters through the device A01.
This device it is mainly usable for serial programming those
instruments that need the same parameters configuration or
to keep a copy of the parameters setting of an instrument and
allow its fast duplication.
The same device allows to connect a PC via USB with which,
through the appropriate configuration software for “AT Univer-
salConf tools”, the operating parameters can be configured.
To use the A01 device it is necessary that the device or instru-
ment are being correctly supplied.
AC supply
Supply adapter
12 VDC
Power
supply
Enter
PWS 12 V
A B C
TTL
+-
USB to PC
USB
Enter
PWS 12 V
A B C
TTL
+-
USB to PC
USB
For additional info, please look at the A01 instruction manual.
6.2 TVR Y remote display
To the instrument it is possible to connect the remote display
TVR Y through a special cable that can have a maximum
length of 10 m. The device TVR Y, directly supplied by the
instrument, allows to show the temperature measured by the
probe Pr1 through a 2½ digit display.
Power supply
TVR Y (--)
Cable 10 m max.
For additional info, please look at the TVR Y instruction manual.
