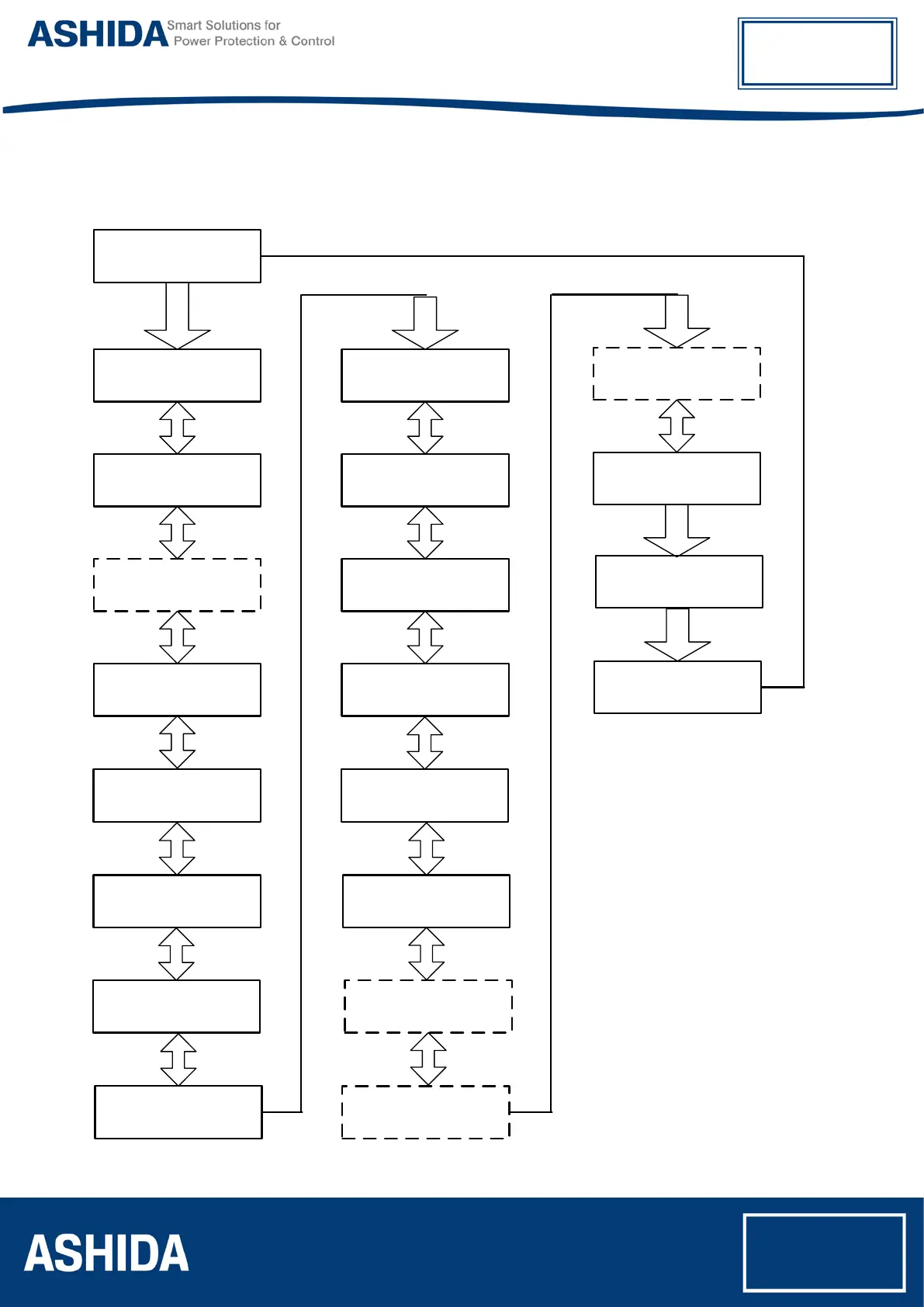

9.3 Flow Chart – Relay Setting
9.3.1 To Set – Relay Setting
Password = 0000
Use Inr / Dec
Password = 000
New Password
Unit ID = 001
I> = 100
Range 5 – 250%
Relay Setting
OK
I> TMS = x1.000
Range x0.01 – 1.50
I>> = 0100
Range 50 – 3000%
I>> Delay = 00.05
Range 0 – 10.00 S
BF Delay = 100
Range 00 – 800 ms
CT Sec. = 001
1 = 1A, 2 = 5A
CT Primary = 0010
Range 10 – 5000
Trip Cont = 002
SR = 1 HR = 2
BF Cont = 002
SR = 1 HR = 2
Baud Rate = 003
Range 1 – 5
Hrm. Rst. = 080
Range ( 00 – 80 ) %
I> Curve = C1
Range C1 – C6
I>C6 Time = 00.1
Range 00 – 99.9 S
Com Port = FRONT
FRONT/REAR
Parity = None
None/Even/Odd
SAVE Settings?
Mode for Save
5
5
5 5
5
5 6 5 6
5 65 6
5 6
5 6
5 6
5 6
5 6
5 6
5 6
5 6
5 6
5 6
5 6
Note :
The Display Pages shown in dashed
lines are only for ADR211A Relay.
