8 USER GUIDE
5
4
3
2
1
6
7
8
10
9
12
11

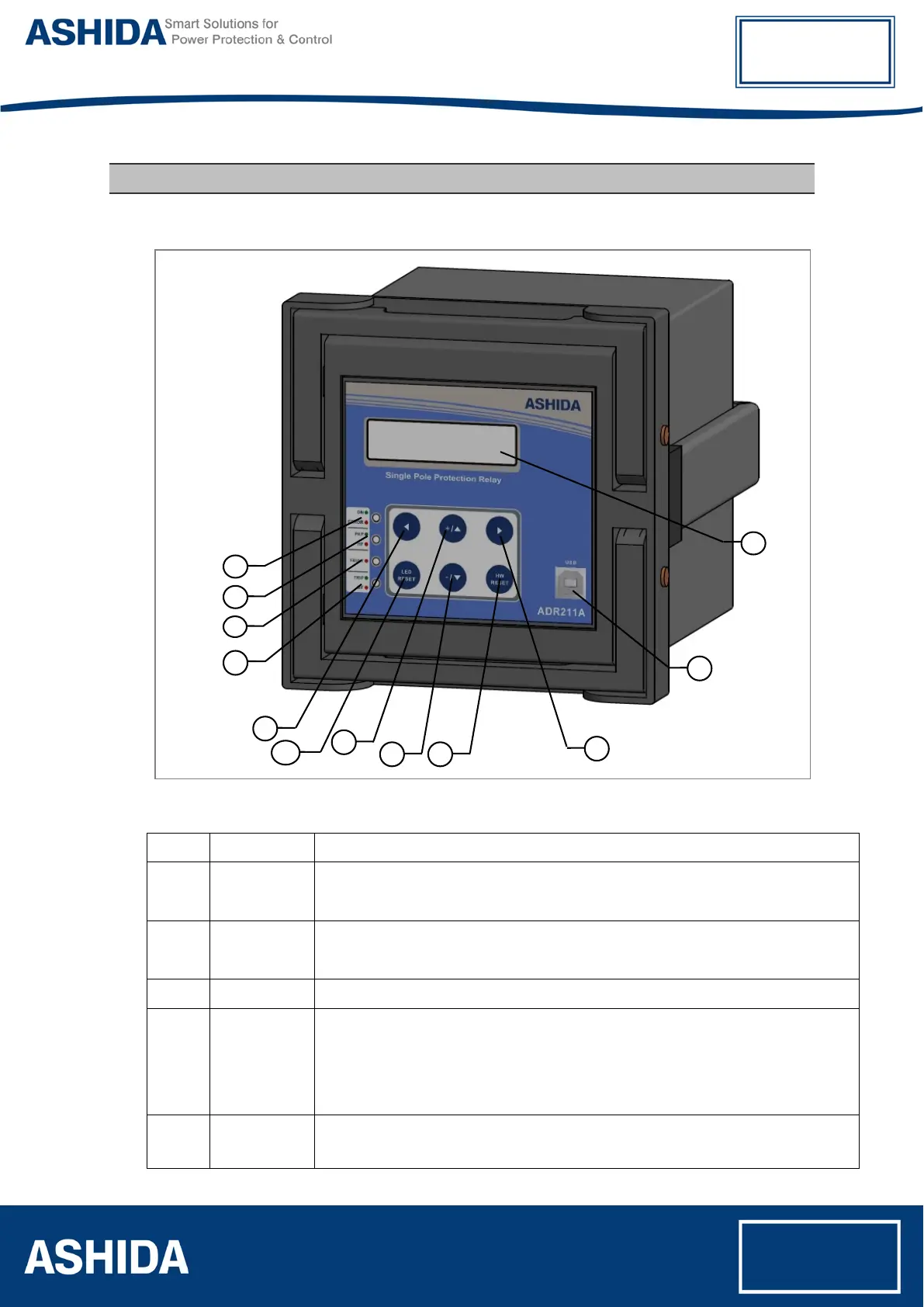

No Legend Function
1.
ON / ERROR : Green LED indicates Relay OK.
: Red LED indicates internal error.
2.
PKP / HF : Green LED indicates Relay pickup.
: Red LED indicates instantaneous trip.
3.
FAULT : Red LED indicates FAULT, Hand Reset (HR) Type.
4.
TRIP / BF : Green LED indicates Trip command is being executed. SR type when TRIP contact
selected as SR and HR type when TRIP contact selected as HR
: Red LED indicates Breaker Failure. SR type when TRIP contact selected as SR and
HR type when TRIP contact selected as HR
5.
◄
: Feather Touch Key Left arrow Key [
] for navigating through the menus
and submenus and save settings.
