Doc ID : ADR111A_IM_01
Ref ID : ADR111A/IM/I&P
Rev No. : 04
Page No. : 33 of 127
ADR111A /
ADR211A
After fastening the relay to the Panel, mount the protective cover on the relay front panel as
shown below.

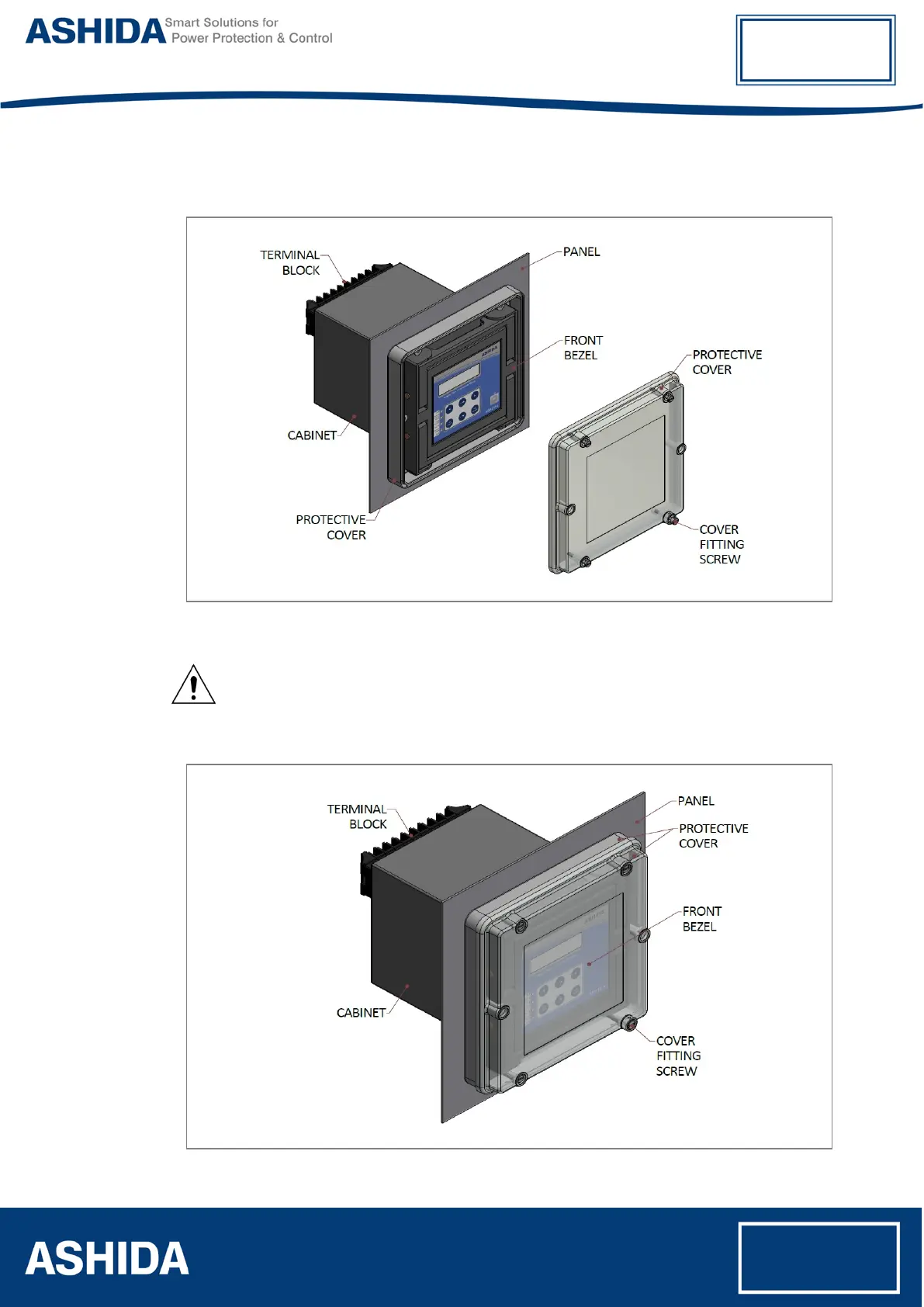

Figure 3: mounting protective cover on relay front panel.
Caution: Always use M4x25 screws for Protective Cover fitting.
After mounting the cover on relay front panel, fasten the cover fitting screw, as shown below
Figure 4: Relay mounted on the panel-front view
