Ashton AK280 - Rear Panel Connections; LCD Display Explained

2

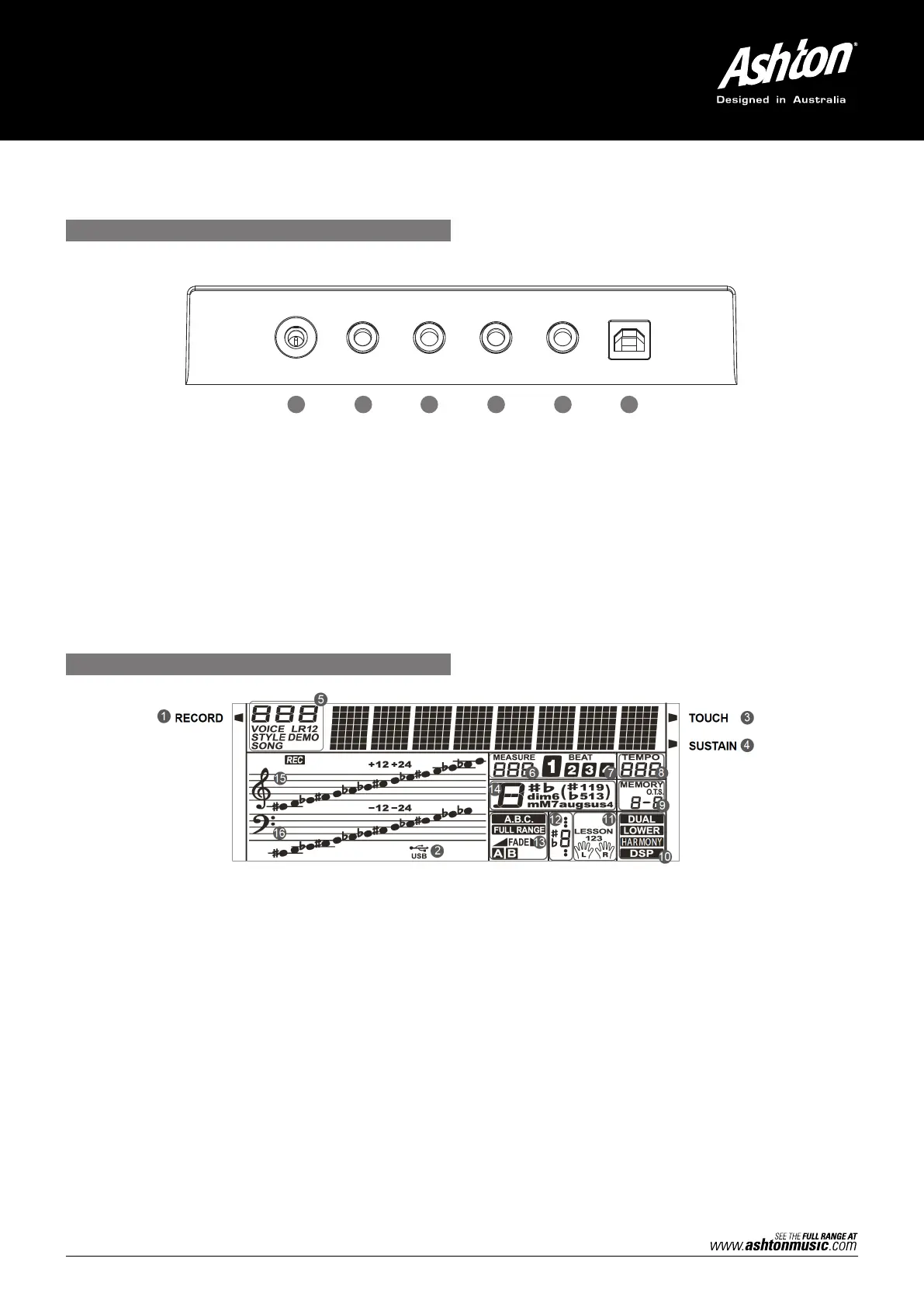

LCD DISPLAY
REAR PANEL
30. DC 12V jack
Connect the DC 12V power
adaptor (optional).
31. MIC jack
Connect a microphone.
32. AUX IN jack
Connect an external sound
source, such as an MP3 or
CD player.
33. PHONES/OUTPUT jack
Connect a pair of headphones
or external audio equipment.
34. SUSTAIN jack
Connect a sustain pedal.
35. USB jack
Connect to a computer.
12V MIC
AUX IN PHONES/OUTPUT SUSTAIN USB
87
0
9
54 6
21 3
METRONOME MIXER VOICE STYLE SONG DEMOBANK STORE M1 M2 M3 M4 O.T.S. HARMONY PIANO
START/
STOP
SYNC
START
INTRO/
ENDING FILL A FILL B FADE CHORD
VOLUME
MIN MAX SHIFT
ACCOMP
TEMPO
RECORD TOUCH
SUSTAIN
RECORD PLAY DUAL LOWER DICT. DSP TOUCH SUSTAIN FUNCTION OCTAVE TRANSPOSE L & R LESSON
B7( 13) 7(13) 7(
#
11) dim7 ROOT Cdim 7aug aug 7sus4 sus4 C
#
/D D D
#
/E F F
#
/G G G
#
/A A A
#
/BEC
#
3 D3 E 3 E3 F3 F
#
3 CHORD CHORD TYPE M M(9) 6 mM7 M7 m m(9) m6 m7(9) m7 m7 5 7 7( 9) 7(9) 7(
#
9)
#
G2 A 2 A2 B 2 B2 C3E2 F2 F 2C2 C
#
2 D2 E 2
61 KEY ELECTRONIC KEYBOARD
AK280
61 KEY ELECTRONIC KEYBOARD
AK280
220 STYLES
001-020 8 BEAT
021-033 16 BEAT
034-063 POP & BALLAD
064-078 ROCK
079-092 BALLROOM
093-111 DANCE
112-122 SOUL & FUNK
123-141 SWING & JAZZ
172-190 WALTZ & TRADITIONAL
191-200 WORLD
201-220 PIANIST
142-151 COUNTRY
152-171 LATIN & LATIN DANCE
633 VOICES
001-051 PIANO
052-076 CHROMATIC PERCUSSION
077-106 ORGAN
107-140 GUITAR
141-165 BASS
166-209 STRINGS & ORCHESTRAL
210-243 BRASS
244-271 REED
272-294 PIPE
295-345 SYNTH LEAD
346-393 SYNTH PAD
394-423 SYNTH SFX
583-624 COMBINED VOICE
625-633 DRUMS
424-447 ETHNIC MISC.
448-535 PERCUSSIVE
536-582 SFX
001-026 FOLK & COUNTRY
027-084 GOLDEN & POP
085-120 CLASSICAL
121-150 PIANO
150 SONGS
30 31 32 33 34 35
1. RECORD
2. USB CABLE
3. TOUCH
4. SUSTAIN
5. VOICE/STYLE/
DEMO/SONG
6. MEASURE
7. BEAT
8. TEMPO
9. M1–M4/ONE
TOUCH SETTING
10. DUAL/LOWER/
HARMONY/DSP
11. LEFT/RIGHT HAND/
LESSON MODE
12. NOTE INDICATION
13. A.B.C./FULL RANGE/FADE/
ACCOMPANIMENT SECTION
14. CHORD
15. TREBLE CLEF
16. BASS CLEF
