ASL INTERCOM VIPEDIA-12 User Manual

VIPEDIA-12 Products – Installation Guide
U-0641-0344.docx – Issue: 8 complete, approved
Page 17 of 52

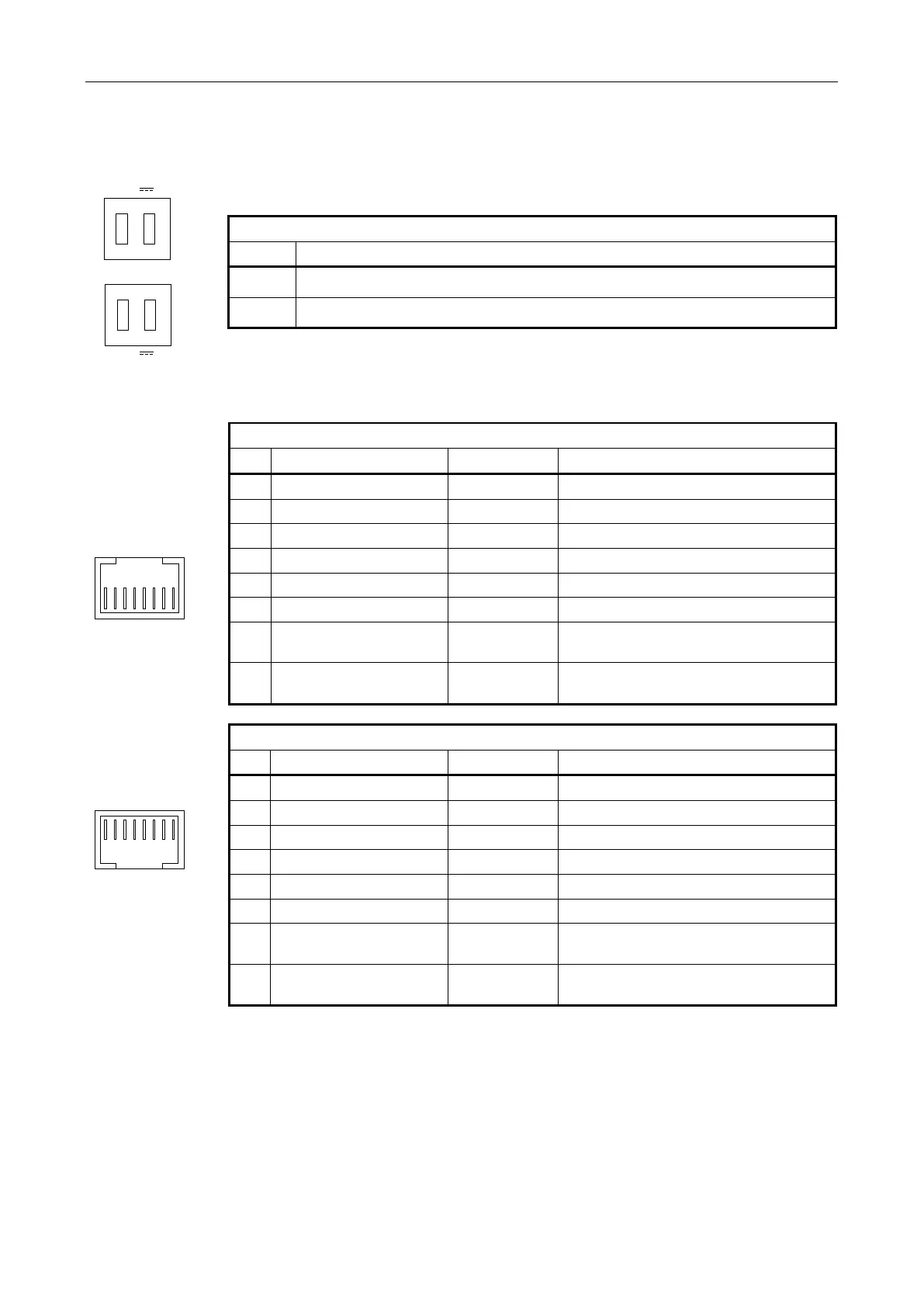

①
18V-40V: Dual DC Power Supply
- +
IN
18-40V
2A
18-40V
2A
2
1
18V-40V: 2-way pluggable Wago cage clamp terminal (male)
Signal Description
+
+V supply (18 V to 40 V DC)
–
0 V supply
②
CONTACTS OUT 1-6 and 7-12: Contact Outputs 1 to 12
1
2
3
4
5
6
7
8
CONTACTS OUT
1-6
CONTACT OUTS 1-6: Standard RJ45 socket
Pin CAT5 Cable (T568B) Signal Description
1 white/orange Contact 1 Open-drain output 1
2 orange Contact 2 Open-drain output 2
3 white/green Contact 3 Open-drain output 3
4 blue Contact 5 Open-drain output 5
5
white/blue Contact 6 Open-drain output 6
6 green Contact 4 Open-drain output 4
7 white/brown +Supply +ve supply (as 18V-40V power supply
input) (1.6 A) for open-drain outputs
8 brown +Supply +ve supply (as 18V-40V power supply
input) (1.6 A) for open-drain outputs
1
2
3
4
5
6
7
8
7-12
CONTACTS OUT
CONTACT OUTS 7-12: Standard RJ45 socket
Pin CAT5 Cable (T568B) Signal Description
1 white/orange Contact 7 Open-drain output 7
2 orange Contact 8 Open-drain output 8
3 white/green Contact 9 Open-drain output 9
4 blue Contact 11 Open-drain output 11
5 white/blue Contact 12 Open-drain output 12
6 green Contact 10 Open-drain output 10
7 white/brown +Supply +ve supply (as 18V-40V power supply
input) (1.6 A) for open-drain outputs
8 brown +Supply +ve supply (as 18V-40V power supply
input) (1.6 A) for open-drain outputs

1) Maximum Rated Current per output: 350 mA
2) Maximum Voltage per output: 60 V.
