Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

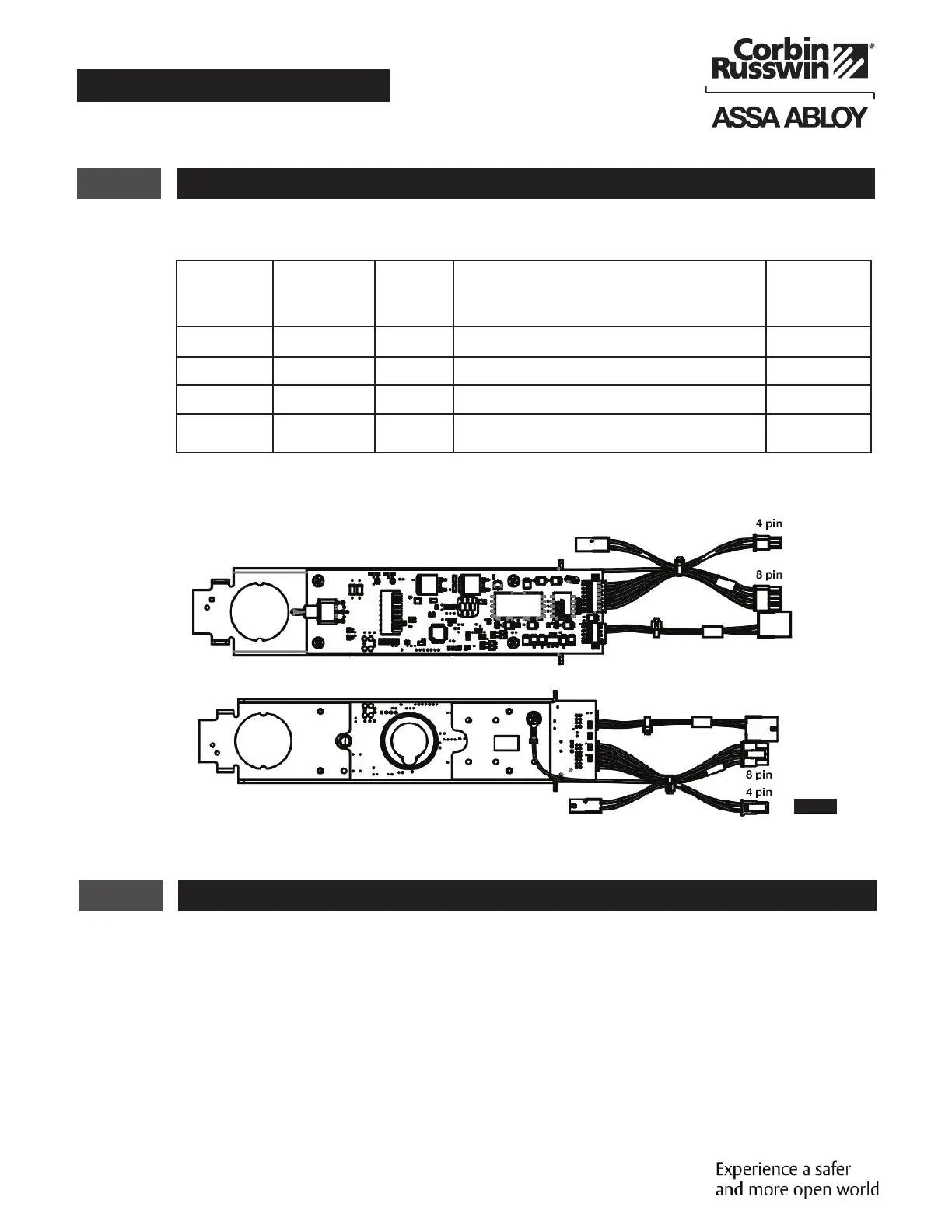

Figure 5
Pin Number Input/Output
Wire
Color
Description Pin Number
NC
Input/Output Violet C, LBM or C, Trim Mon. or ET(-) 1
NC
Input/Output Gray NO, LBM or NO, Trim Mon. or ET(+) 2
NC
Input/Output Pink NC, LBM or NC, Trim Mon. 3
2 Input Tan Door Position Switch Input-Input sense for DPS
switch option
4
J2 Connector (See Figure 5 below.)
7 ElectroLynx Connector System for All Electrical Installation
1. Mount exit device per instruction sheet provided.
2. Plug exit device connector into raceway connector in door. Feed through 1" (25mm) hole in door.
Install rail mounting end clamp bracket with two (2) screws supplied. Install end cap.
3. Plug raceway connector from edge of door into electric hinge connector and feed wires back
through door prep. Mount electric hinge to door.
A. If wiring now, wire frame side wires, to wires on pigtail harness, on hinge as required by using
connectors allowed by local code. Plug pigtail harness connector into electric hinge connector.
Feed harness through frame prep and mount electric hinge.
B. If wiring later, plug pigtail harness connector into electric hinge connector. Feed harness through
frame prep and mount electric hinge.
NOTE: ElectroLynx QC12 Hinge is required if DPS and/or any options shown are required.
NOTE: Refer to Section 25 if replacing legacy PCBA/wiring with new PCBA/wiring.
Top View
Bottom
View
4-Pin ElectroLynx Connector
6
Wiring Layout: Input/Output Wiring Descriptions, continued
To Next Page
