Delayed Egress
Installation Instructions
ED4000, ED5000 Series Exit Device
FM209 10/20
Copyright © 2006, 2010, 2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
5
Device Mounting
1. Refer to installation instructions included with device and trim for complete door and frame
preparations. Refer to template #T30890 for wire access hole location.
2. Feed wires from power transfer through wire access hole in door. (Figure 4)
3. When required, mount outside trim to door (see trim installation instructions).
4. Mount device to door (see device installation instructions).
5. Do not install end cap until device has been wired and tested for operation (See wiring diagrams).
6. Check mechanical operation and proceed to wiring diagrams.
NOTE: Wire nuts can be inserted into wire access hole after making connections. Quick disconnect can be used
without removing wire nuts.
NOTE: For QC8 and QC12 ElectroLynx wiring, refer to Sections 8 and 10. ElectroLynx has pluggable connectors,
wire nuts are not needed.
LHR Installation Shown
End Clamp
Power Transfer
Hinge
End Cover
Installed
Wire Nuts Included
(Recommended for use with
Transfer Hinges)
1. Strip Wire 1/2"
2. Twist Wire
3. Insert Wire
4. Tighten
Wire Access
1" (25mm) dia. hole on
same centerline as
device. Inside face only.
Connector J2
Disconnect for Wiring
to Power Transfer

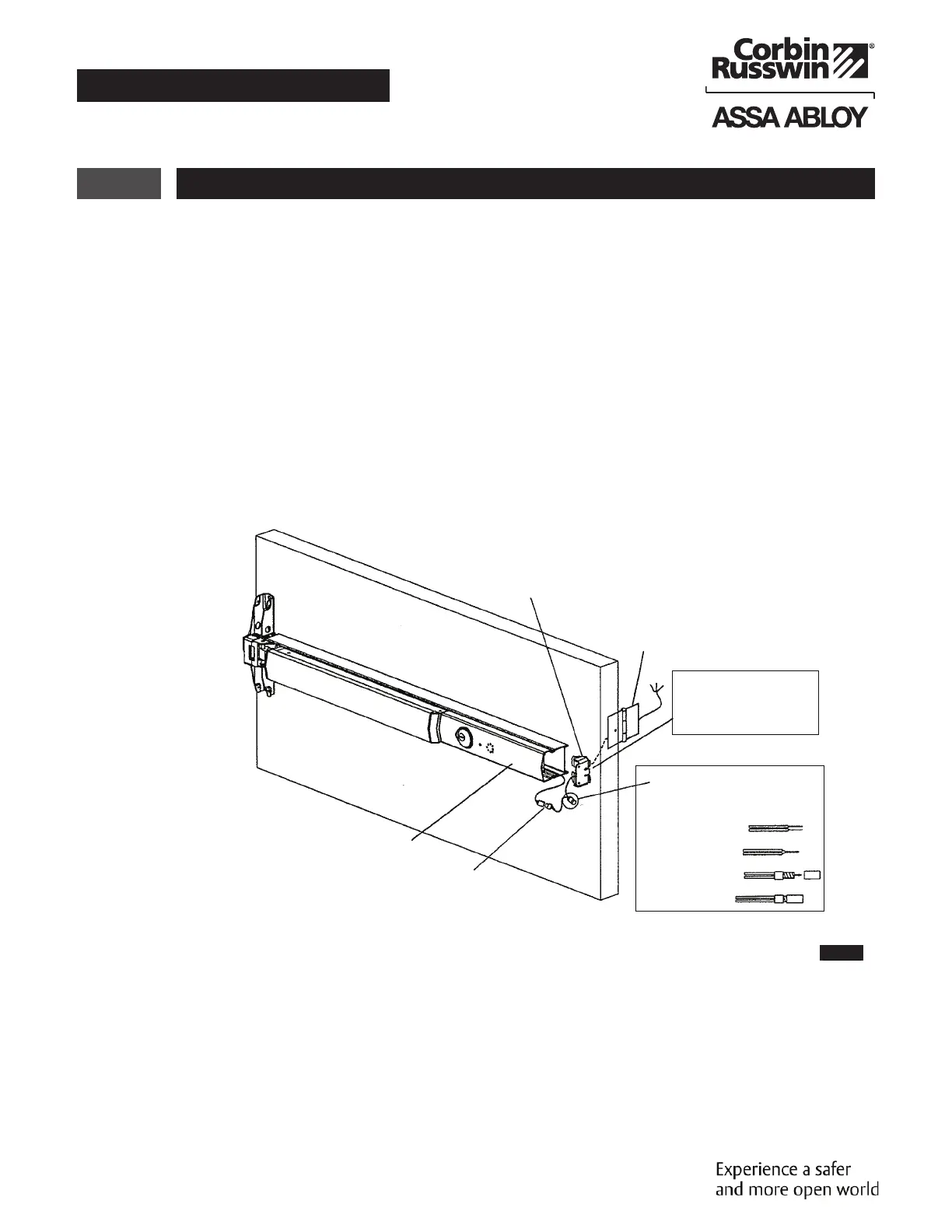

Figure 4
Non-ElectroLynx Wiring
NOTES:
• Wires must be protected from abrasion.
• For use with Class II circuits only.
