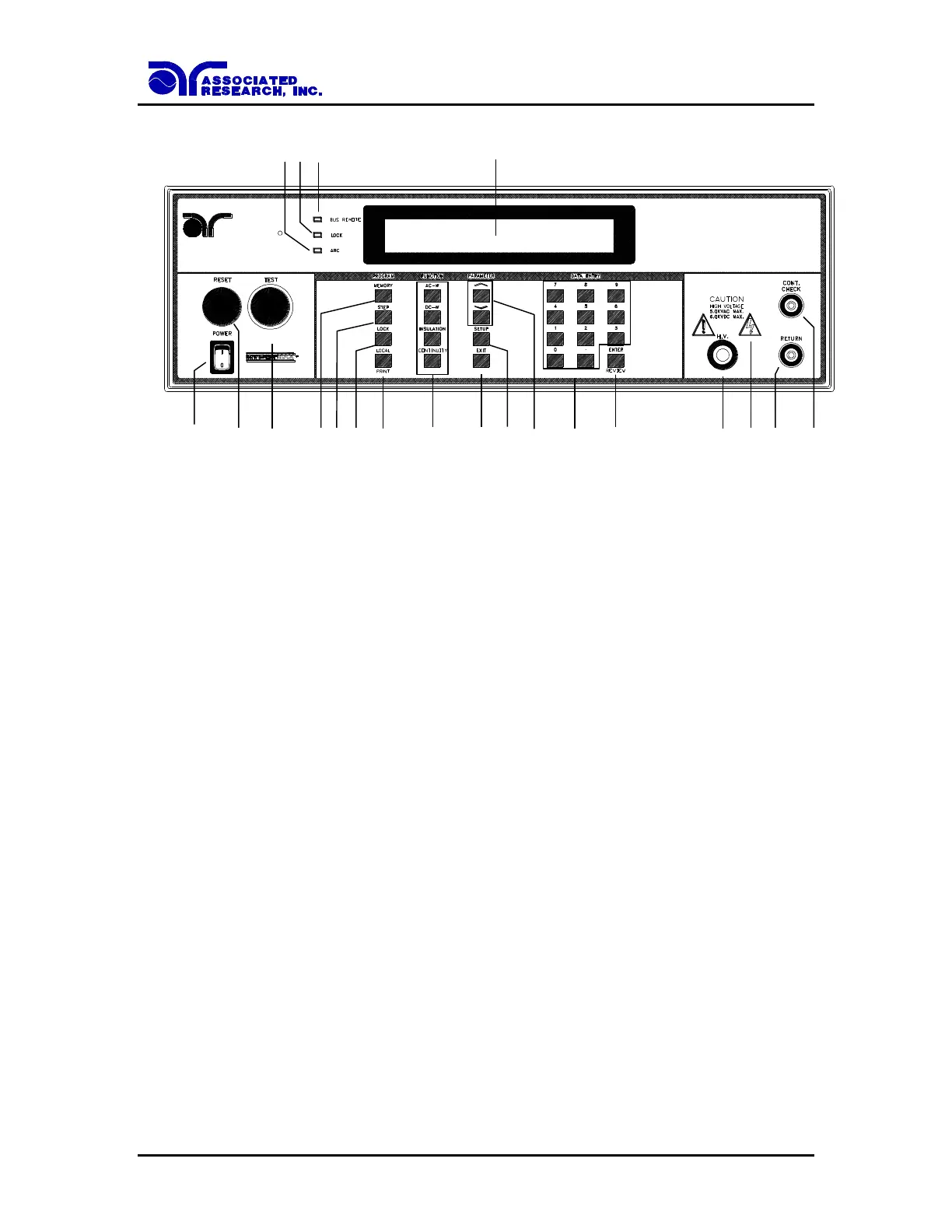

7. TEST BUTTON: This is a momentary contact switch. Press the green button to
turn on the high voltage output. Also illuminates to indicate a Pass condition.
8. MEMORY: (PROGRAM KEY) Use this key to select one of the 50 memories to
modify or run stored test parameters.
9. STEP: (PROGRAM KEY) Use this key to select one of the 8 locations contained
within each memory.
10. LOCK: (PROGRAM KEY) Use this key to select key lockout mode. A password
may be used when setup in the calibration mode.
11. LOCAL: (PROGRAM KEY) Use this key when you wish to go from the Remote
operation of the instrument to the Local mode.
12. FUNCTION KEYS: Use these keys to select the test function that will be performed
for the memory and step indicated. The four selections are:
AC-W: AC Withstand Test
DC-W: DC Withstand Test
INSULATION: Insulation Resistance Test
G-BOND: Ground Bond Test
13. EXIT: (PARAMETER KEY) Use this key to exit any menu or to clear an unwanted
entry in a parameter field.
14. SETUP: (PARAMETER KEY) Use this key to enter the setup menu and view or
change the GPIB address, display contrast, alarm volume, PLC remote settings, or the
stop on fail setting.
