101

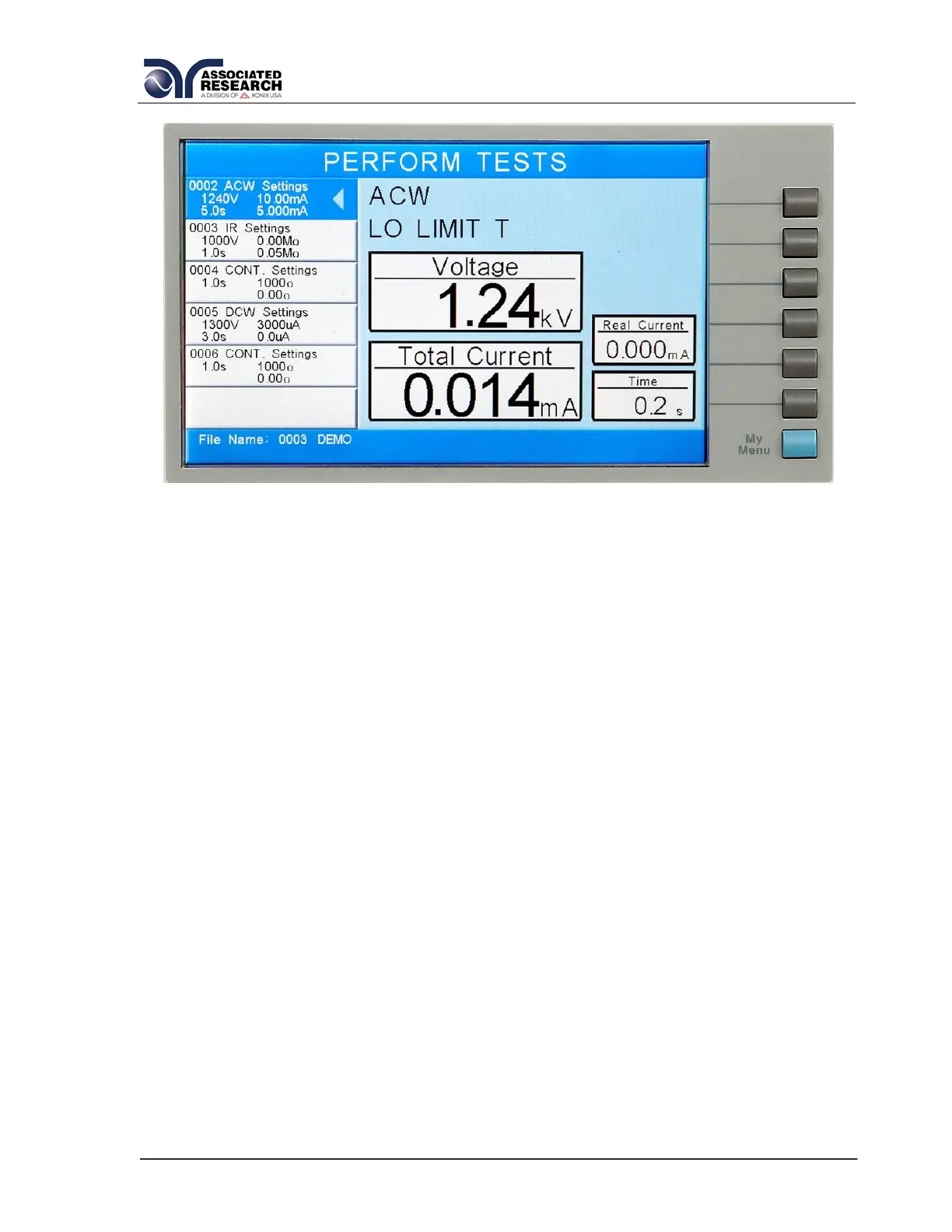

5.5.1. Test Status Messages
The following is a complete listing of the messages that appear in the Test status
display and an explanation for each.
Dwell
This message appears on the display while a test is in process, the values update in
real time.
Delay
This message appears on the display while a test is in process, the values update in
real time.
Ramp Up
This message appears on the display at the beginning of the test, when the output
voltage is ramping up.
Ramp Down
This message appears on the display at the end of the dwell cycle, when the output
voltage is ramping down.
Pass
This message appears on the display when the test process is complete and the DUT
passed the test.
5.5.2. Error Messages (All Models)
Abort
This message appears on the display if the test in process is aborted with the RESET
button or remote Reset control.
