68

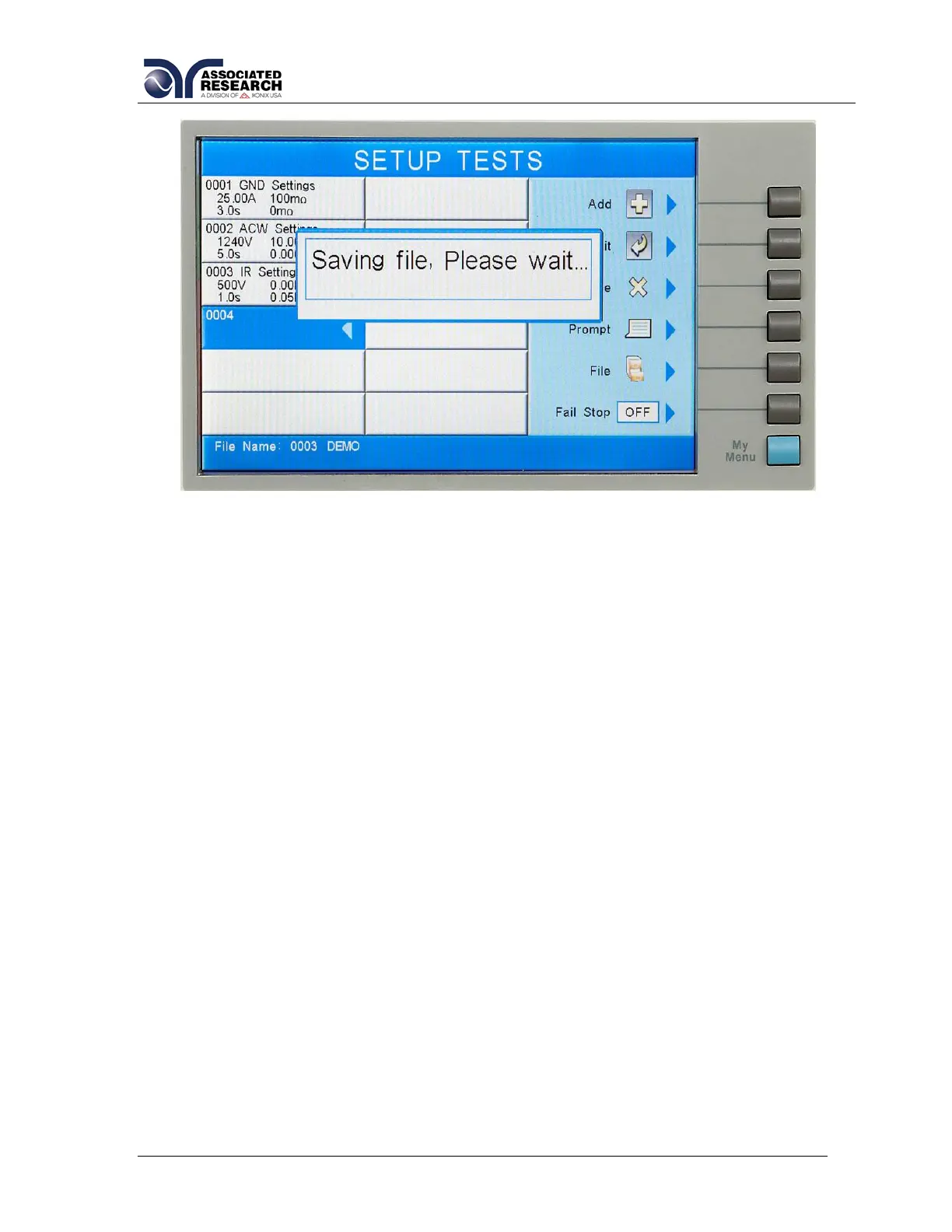

The instrument is now ready to perform tests with the new file. You may now press
the ENTER key to go to the Perform Tests screen or press the EXIT key to return to
the Main Menu.
Inserting Tests
From the Setup Tests screen, scroll the highlighted area to the step in the sequence
where you would like to insert a test.
Press the “Add” soft key. The highlighted area will blank and the test that was
originally at this step in the sequence, as well as all of following steps, will increment.
At the same time the Setup Test, Tests Selection screen will be displayed.
You may now select the type of test you wish to insert from the soft key menu.
Inserting a Text Prompt
Refer to section 4.3.4. Prompt for a detailed description of inserting text prompts.
4.5.1. AC Withstand
From the Setup Tests Selection screen, press the “Add”” soft key. The test types soft
keys will now be displayed. Pressing the “Dielectric Withstand” soft key will display the
“AC-Withstand” and “DC-Withstand” soft keys. Press the “AC-Withstand” soft key The
AC Withstand Parameter Setting screen will now be displayed. The AC Withstand
Parameter Setting screen will appear as follows:
