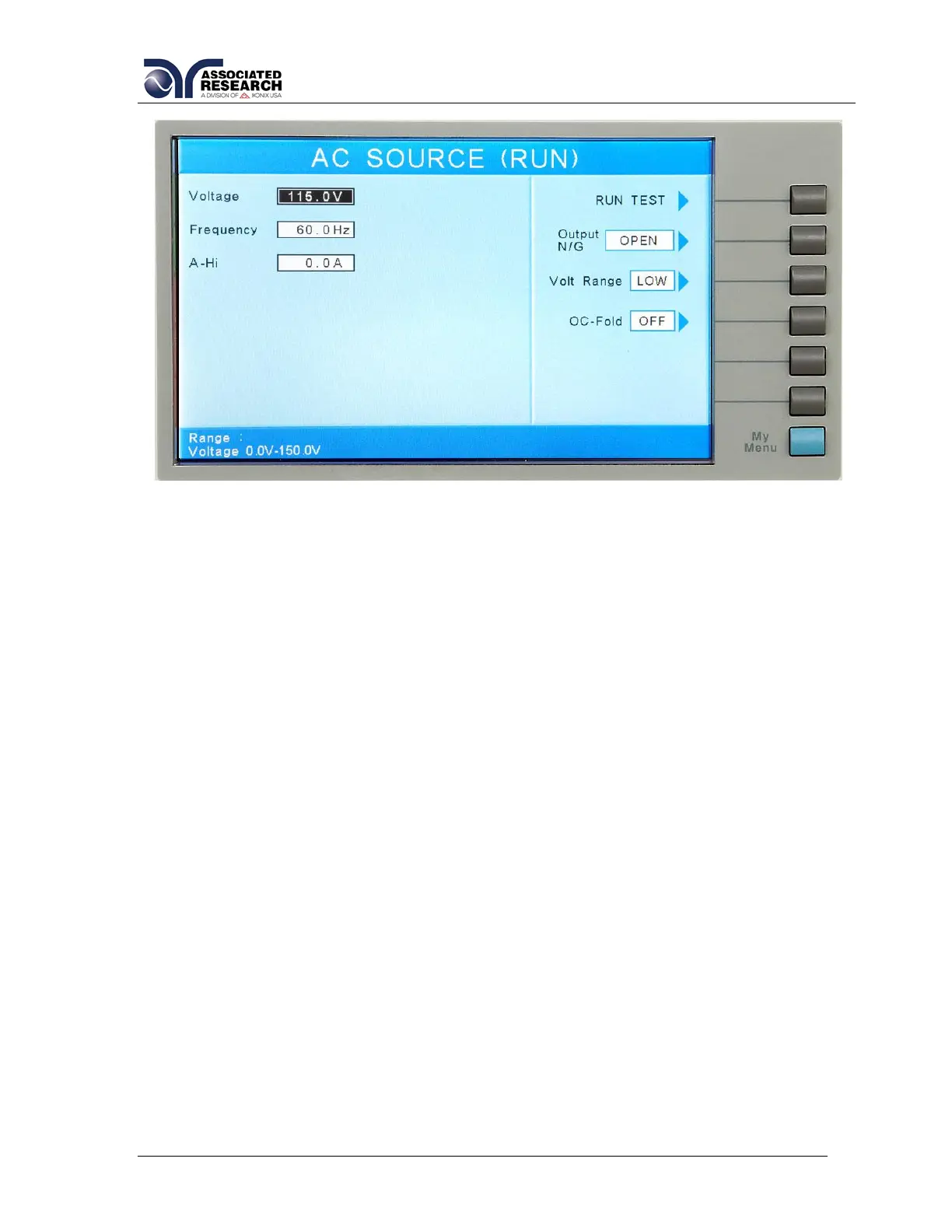

From this screen, you can control the following test parameters: Voltage, Frequency,
A-Hi, Output N/G, Volt Range and OC-Fold. The A-Hi parameter allows you to set the
AC Source high current limit. The Output N/G parameter allows you to configure the
AC Source output to either open or close the ground connection. The Volt Range
parameter controls the output range of the AC Source (high or low). See specifications
for more details. The OC-Fold parameter allows you to set the output of the AC source
in constant current mode. When active, the A-Hi parameter can be used to set the
output current of the AC source.
4.5.8. Leakage Current test (Models 82x6 and 82x7)
Associated Research recommends performing a Hipot test with the Fail Stop ON prior
to performing a Run Test or Leakage Current test. Performing a Hipot test first can
detect if a DUT is shorted line to ground before applying line power to it.
From the Setup Tests, Tests Selection screen, press the “Leakage Current ” soft key.
The Leakage Current parameter setting screen will now be displayed. The Leakage
Current Parameter Setting screen will appear as follows:
