4. Unit operation
page 25 of 47 issue date 24.02.2021, release 11.1

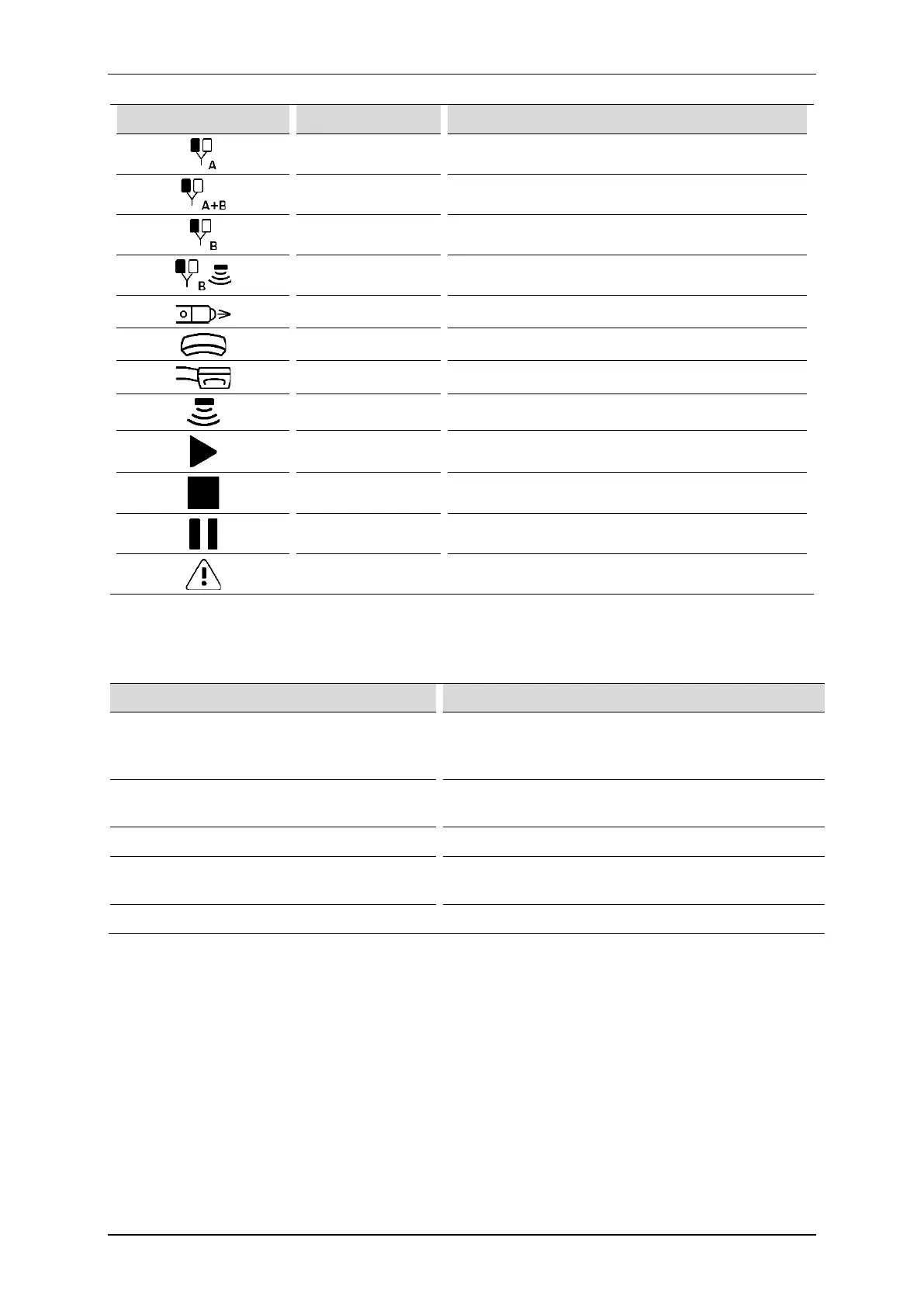

The table below explains the meaning of the symbols presented in tabs:
Symbol Treatment channel Description
1 Selected single circuit electrotherapy – socket A
1 Selected dual circuit electrotherapy – socket A and B
2 Selected single circuit electrotherapy – socket B
2 Selected combined therapy
2 Selected laser therapy – laser point probes
2 Selected laser therapy – scanning laser applicator
2 Selected laser therapy – cluster laser applicator
3 Selected ultrasound therapy
Any Ongoing treatment
Any Treatment interrupted
Any Ready to start amplitude adjustment or pause
Any Channel error (yellow symbol)
4.3.3 Limitations
The list of limitations in the unit operation:
Condition Limitations
Treatment channel 1
Set electrotherapy mode A+B
In channel 2 it is possible to set only ultrasound therapy
till the end of performed treatment in channel 1 and
escaping from edition mode.
Treatment channel 2, selected electrotherapy B
or combined therapy
In channel 1 there is a possibility of setting only
electrotherapy A
Treatment channel 2, selected combined therapy Treatment channel 3 – ultrasound therapy not available.
Treatment channel 3, selected ultrasound
therapy
Treatment channel 2 – combined therapy not available.
I/t curve I/t curve available only in channel 1 for electrotherapy A.
